228UP WIRELESS MOUSE Block Diagram - FCC ID IOW228UP
FCC ID IOW228UP

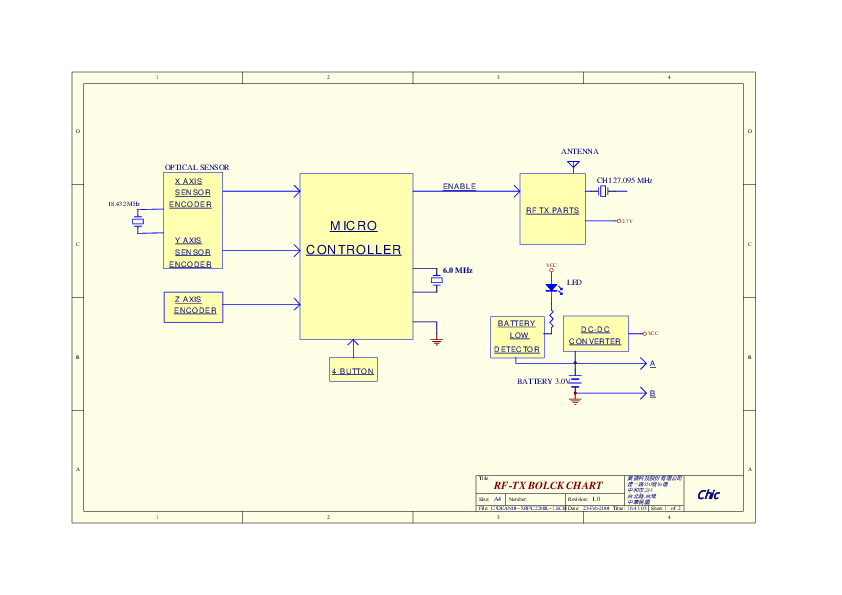

BLOCK DIAGRAM
WIRELESS MOUSE
Document preview loads when visible.
Document Details
| FCC ID | IOW228UP |
|---|---|
| Document ID | 399366 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Applicant | Chic Technology Corporation |
| Equipment Class | WIRELESS MOUSE |
| Product Code | 228UP |
| Application ID | vzOZ5zAwlV69zdjN6AQWXw== |
| Application Purpose | Class II Permissive Change |
| Application Date | 2004-02-26 |
| Frequency Range | 26.96-27.28 MHz |
| FRN | 0005408562 |
| Test Firm | Training Research Co., Ltd. |
| Certified By | MATTHEW KU MANAGER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2004-02-26 |
| Available | 2004-02-26 |
| Created | 2004-02-23 |
| Modified | 2004-02-23 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 24254 |
| File SHA-256 | 5e455a45078c39b7ced7bbcbeb0986bccd99c1a48bf1d9ddbfcd1d6f146f0412 |
| PDF Metadata Producer | Acrobat Distiller 5.0.5 (Windows) |
| FCC.gov Sources | FCC.gov 399366 |
