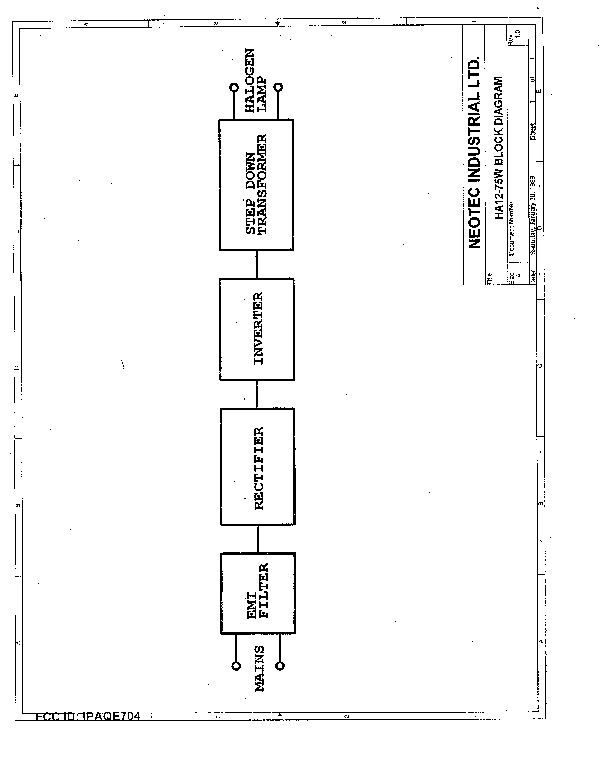

QE704 RF Light Block Diagram - FCC ID IPAQE704

FCC ID IPAQE704

Block Diagram

RF Light

by Neotec Industrial Limited

Document preview loads when visible.

Document Details

FCC IDIPAQE704
Document ID34001
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantNeotec Industrial Limited
Equipment ClassRF Light
Product CodeQE704
Application IDvsdqzx98cFmBF6wNsPmpiA==
Application PurposeOriginal Equipment
Application Date1999-05-25
Frequency Range0.022 MHz
FRN9999999999
Test FirmIntertek Testing Services Hong Kong
Certified ByC.K.LAM TECHNICAL MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-04-23
Available1999-05-25
Created1999-04-21
Modified1999-04-21
Pages1
File TypeAdobe Acrobat PDF
File Size23488
File SHA-256fcb1bb96e4296d4915cfa01dd9210d3aa81385e51ac0dab915bfba29362d4e3a
PDF Metadata ProducerAcrobat 3.0 Scan Plug-in Acrobat 3.0 Scan Plug-in
FCC.gov SourcesFCC.gov 34001
