FCC ID IPH-A3119-00
Digital Transmission System
by Garmin International Inc
Grantee Code: IPH Product Code: A311900
Latest application date: 2018-01-18
Device Images
FCC ID Device Details
| FCC ID | IPH-A3119-00 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | IPH |
| Product Code | A311900 |
| Applicant Business | Garmin International Inc 🇺🇸 |
| Related Domains |  garmin.com |
| Equipment Class | Digital Transmission System |
| Test Firm | Rhein Tech Laboratories, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2018-01-18 |
| 2402-2480 MHz | Class II permissive change or modification of presently authorized equipment | 2018-01-18 |
| 2412-2462 MHz | Original Equipment | 2017-03-22 |
| 2402-2480 MHz | Original Equipment | 2017-03-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-03-22 | PDF 2.6 MB |
| User Manual 1 | Users Manual | 2017-03-22 | PDF 593.9 KB |
| Internal Photos | Internal Photos | 2017-03-22 | PDF 559.4 KB |

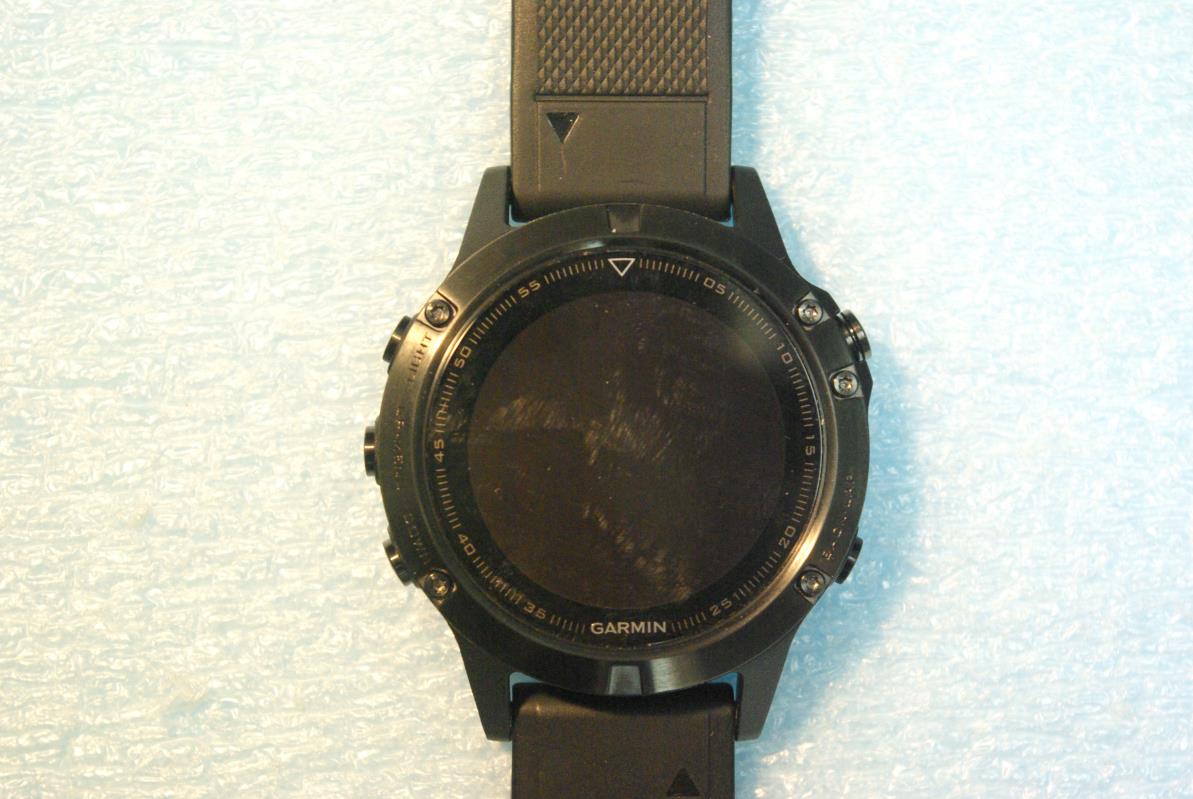

| External Photos | External Photos | 2018-01-18 | PDF 527.7 KB |
| External Photos | External Photos | 2017-03-22 | PDF 575.6 KB |
| Label Sample | ID Label/Location Info | 2017-03-22 | PDF 222.7 KB |
| Test Report DTS SAR | Test Setup Photos | 2018-01-18 | PDF 405.1 KB |
| Test Setup Photos | Test Setup Photos | 2018-01-18 | PDF 88.4 KB |
| Test Setup Photos SAR | Test Setup Photos | 2018-01-18 | PDF 405.1 KB |
| Test Set Up Photos | Test Setup Photos | 2017-03-22 | PDF 1.4 MB |
| Test Setup Photos | Test Setup Photos | 2017-03-22 | PDF 1.4 MB |
| Test Report DTS | Test Report | 2018-01-18 | PDF 420.3 KB |
| Test Report DXX | Test Report | 2018-01-18 | PDF 208.9 KB |
| Test Report | Test Report | 2017-03-22 | PDF 2.7 MB |
| Test Report DTS | Test Report | 2017-03-22 | PDF 2.2 MB |
| Authorization Letter | Cover Letter(s) | 2018-01-18 | PDF 36.9 KB |
| Confidentiality Letter | Cover Letter(s) | 2018-01-18 | PDF 58.2 KB |
| Permissive Change Letter Metadata only | Cover Letter(s) | 2018-01-18 | PDF 35.7 KB |
| Permissive Change Letter Revised | Cover Letter(s) | 2018-01-18 | PDF 55.9 KB |
| Signatory Letter | Cover Letter(s) | 2018-01-18 | PDF 194.3 KB |
| Confidential Request | Cover Letter(s) | 2017-03-22 | PDF 284.1 KB |
| Confidentiality Request | Cover Letter(s) | 2017-03-22 | PDF 284.1 KB |
| Delegation to other Garmin authorized individuals | Cover Letter(s) | 2017-03-22 | PDF 162.8 KB |
| DoC Letter | Cover Letter(s) | 2017-03-22 | PDF 99.2 KB |
| Rogers agent letter | Cover Letter(s) | 2017-03-22 | PDF 577.8 KB |
| RF Exposure SAR Report 1 | RF Exposure Info | 2018-01-18 | PDF 682.2 KB |
| RF Exposure SAR Report 2 | RF Exposure Info | 2018-01-18 | PDF 2.5 MB |
| SAR Report Part 1 of 3 | RF Exposure Info | 2017-03-22 | PDF 532.5 KB |
| SAR Report Part 2 of 3 | RF Exposure Info | 2017-03-22 | PDF 142.5 KB |
| SAR Report Part 3 of 3 | RF Exposure Info | 2017-03-22 | PDF 1.9 MB |
| Block Diagram Metadata only | Block Diagram | PDF 45.5 KB | |
| Schematics Metadata only | Schematics | PDF 757.8 KB | |
| Description Antenna Metadata only | Operational Description | PDF 195.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 348.5 KB |
Application Information
| Application ID | 5+Mg1XauCSvk/zSqXjVm7Q== |
|---|---|
| Final Action Date | 2018-01-18 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005088588 |
| Model | A3119-00 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Digital Transmission System |
| Responsible Party | Douglas Kealey, Manager Environmental and Regulatory Affairs, doug.kealey@garmin.com , 9134405210 |
| Technical Contact | Richard McMurray, Rhein Tech Laboratories, Inc., atcbinfo@rheintech.com  , 7036890368 |
| Test Firm | Richard McMurray, Rhein Tech Laboratories, Inc., rmcmurray@rheintech.com , 703-689-0368 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is the maximum conducted output power. Highest reported SAR is 0.72W/kg. There is no simultaneous transmission. |
