FCC ID IPUSTUDIOMICRO
W Studio Micro System
by DEI Sales Inc. dba Definitive Technology
Grantee Code: IPU Product Code: STUDIOMICRO
Latest application date: 2015-09-22
Device Images
FCC ID Device Details
| FCC ID | IPUSTUDIOMICRO |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | IPU |
| Product Code | STUDIOMICRO |
| Applicant Business | DEI Sales Inc. dba Definitive Technology 🇺🇸 |
| Related Domains |  soundunited.com |
| Equipment Class | W Studio Micro System |
| Test Firm | SGS-CSTC Standards Technical Services Co.,Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5150-5250 MHz | Original Equipment | 2015-09-22 |
| 2412-2462 MHz | Original Equipment | 2015-09-22 |
| 2403.5-2477.3 MHz | Original Equipment | 2015-09-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual 1 | Users Manual | 2015-09-22 | PDF 2.3 MB |
| User Manual 2 | Users Manual | 2015-09-22 | PDF 1.4 MB |

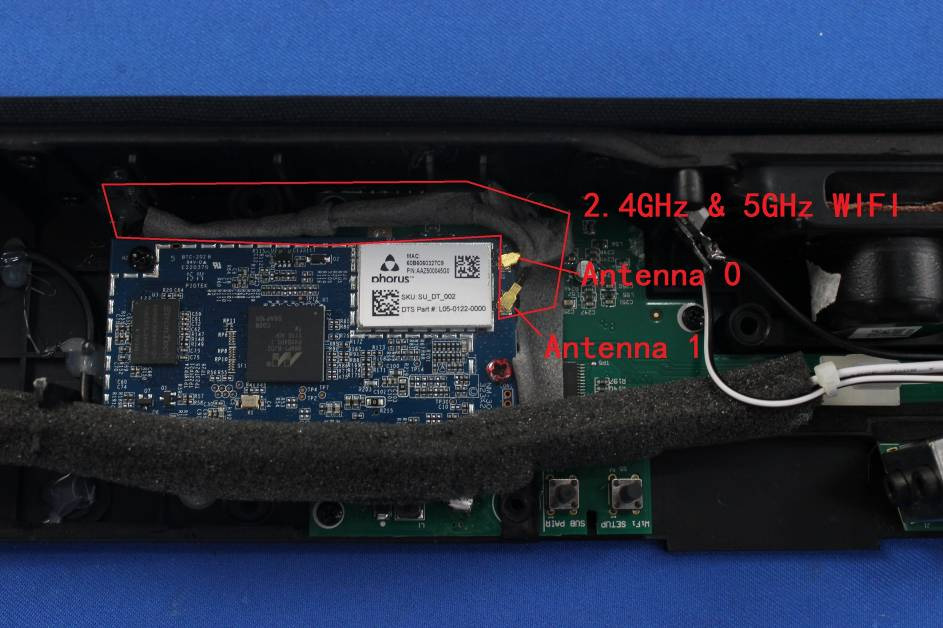

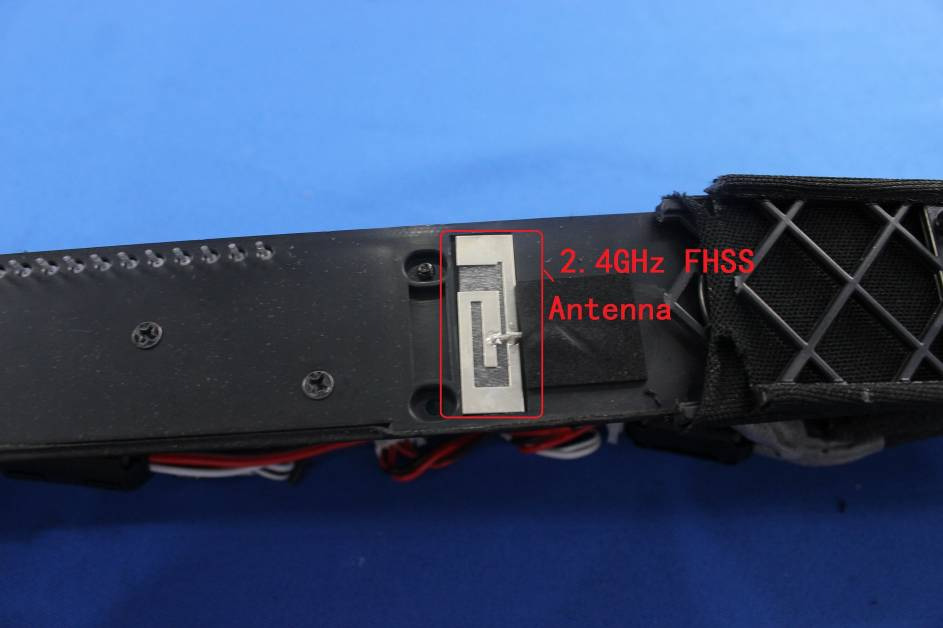

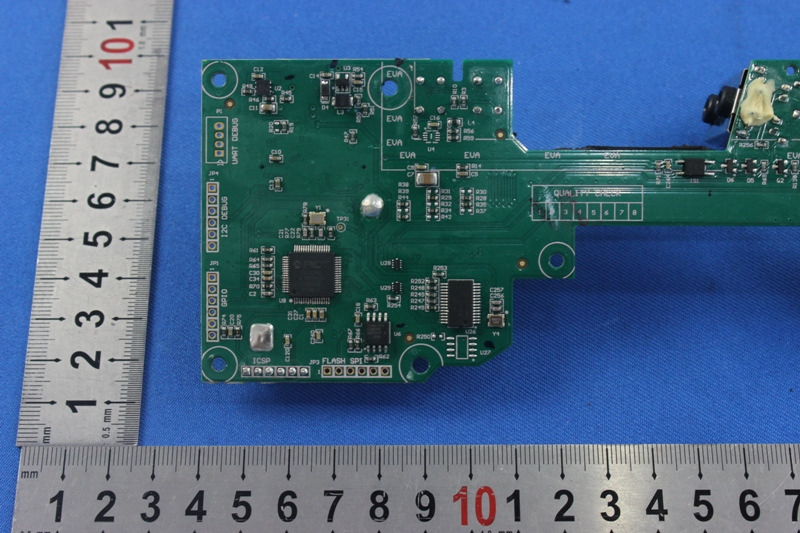

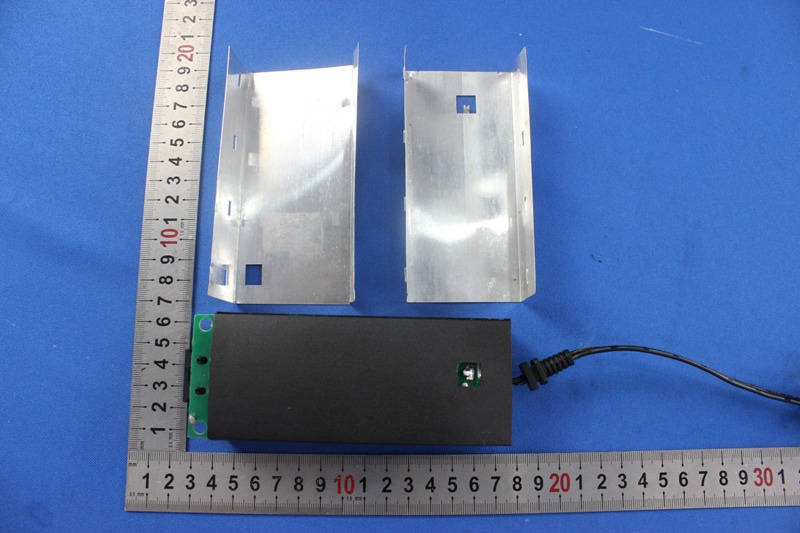

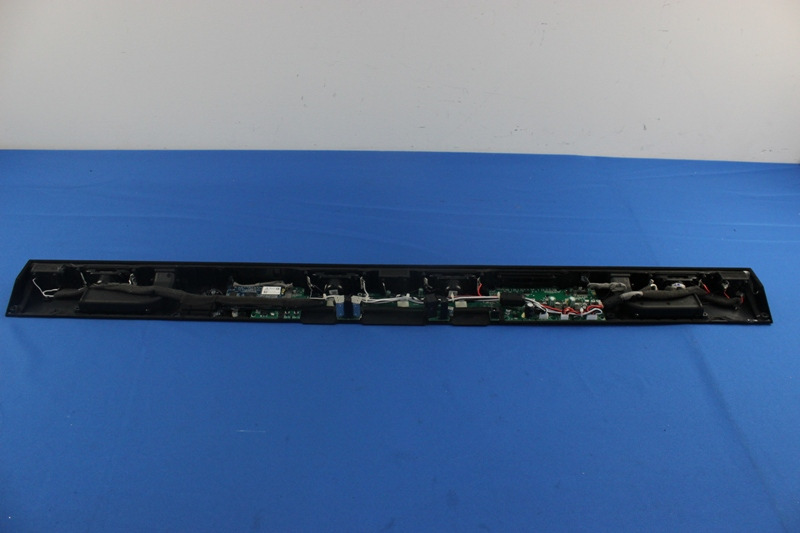

| Internal Photos | Internal Photos | 2015-09-22 | PDF 4.2 MB |

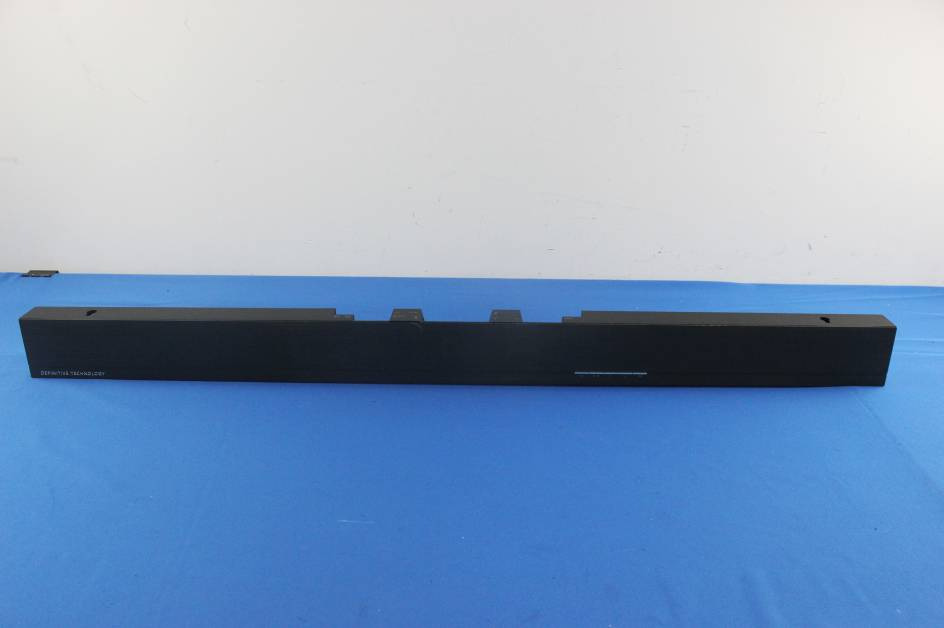

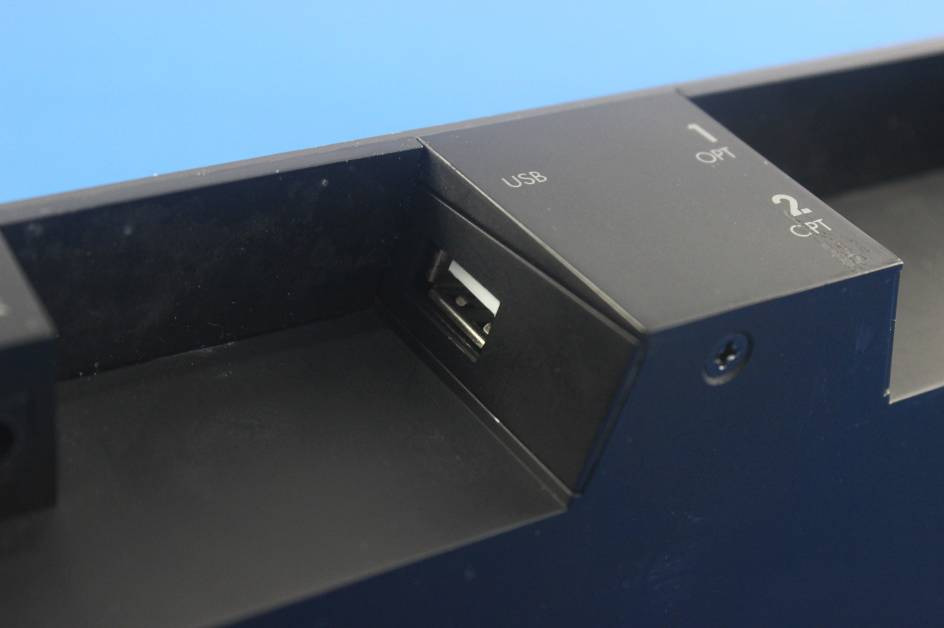

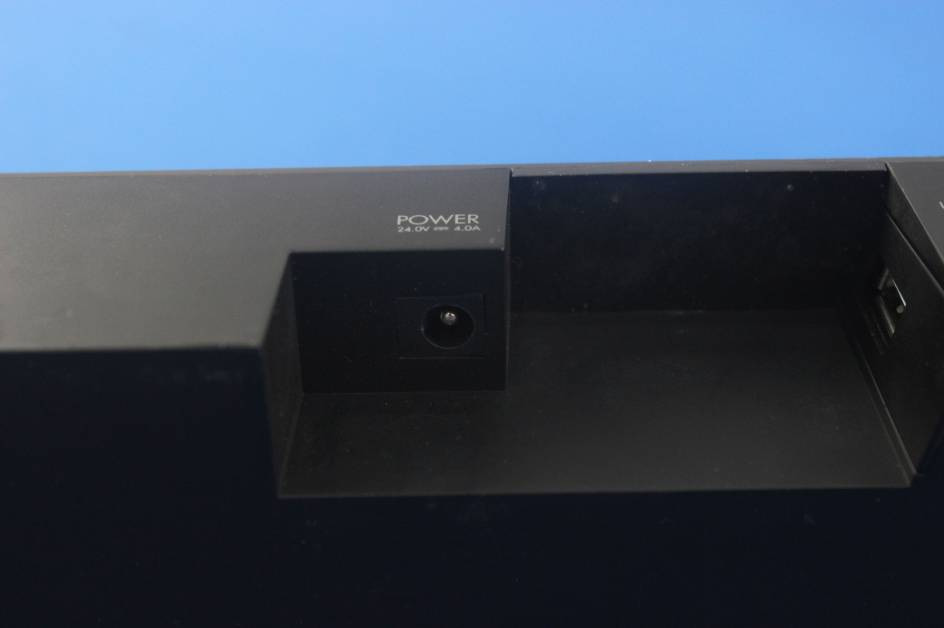

| External Photos | External Photos | 2015-09-22 | PDF 1.4 MB |
| Label | ID Label/Location Info | 2015-09-22 | PDF 1 MB |
| Label Location | ID Label/Location Info | 2015-09-22 | PDF 19.7 KB |
| Label Size | ID Label/Location Info | 2015-09-22 | PDF 266.7 KB |
| Test Setup Photos | Test Setup Photos | 2015-09-22 | PDF 563.2 KB |
| Test Report | Test Report | 2015-09-22 | PDF 4.2 MB |
| Test Report | Test Report | 2015-09-22 | PDF 3.9 MB |
| Test Report | Test Report | 2015-09-22 | PDF 2 MB |
| Test Report DFS | Test Report | 2015-09-22 | PDF 930.4 KB |
| Authorization Letter | Cover Letter(s) | 2015-09-22 | PDF 38 KB |
| Channel Statement | Cover Letter(s) | 2015-09-22 | PDF 23 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-09-22 | PDF 50.3 KB |
| RF Exposure | RF Exposure Info | 2015-09-22 | PDF 193.7 KB |
| Block Diagram 2.4G Metadata only | Block Diagram | PDF 56.3 KB | |
| Block Diagram WiFi Metadata only | Block Diagram | PDF 73.6 KB | |
| Circuit Diagram Metadata only | Schematics | PDF 372.6 KB | |
| Operational Description Metadata only | Operational Description | PDF 81.6 KB | |
| Operational Description Software Metadata only | Operational Description | PDF 273 KB |
Application Information
| Application ID | mCx5s4JLQxzwLqsBf4BBuQ== |
|---|---|
| Final Action Date | 2015-09-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0021689682 |
| Model | STUDIOMICRO |
| Frequency Range | 5150-5250 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | W Studio Micro System |
| Responsible Party | Norbert Richardson, Director of NPD, norbert.Richardson@soundunited.com , 410-764-5471 |
| Test Firm | June Zhang, SGS-CSTC Standards Technical Services Co.,Ltd., June.Zhang@sgs.com  , 8675525328598 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| mCx5s4JLQxzwLqsBf4BBuQ== | 2015-09-22 | Original Equipment |
| eVca7u6kwWpGgyybx7BruQ== | 2015-09-22 | Original Equipment |
| Q3r04ofbw794L7P7Un0kug== | 2015-09-22 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Q3r04ofbw794L7P7Un0kug==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 09/22/2015 Application Dated: 09/22/2015 |
| DEI Sales Inc. dba Definitive Technology |
| 5541 Fermi Ct. |
| Carlsbad, CA 92008 |
| Attention: Norbert Richardson , Director of NPD |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | IPUSTUDIOMICRO |
| Name of Grantee: | DEI Sales Inc. dba Definitive Technology |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | W Studio Micro System |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2403.5 - 2477.3 |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application Q3r04ofbw794L7P7Un0kug==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
DEI Sales Inc. dba Definitive Technology 5541 Fermi Ct. Carlsbad, CA 92008 United States |
Date of Grant: 09/22/2015 Application Dated: 09/22/2015 |
| Attention: Norbert Richardson , Director of NPD |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | IPUSTUDIOMICRO |
| Name of Grantee: | DEI Sales Inc. dba Definitive Technology |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | W Studio Micro System |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2403.5 - 2477.3 |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 09/22/2015 Application Dated: 09/22/2015 |
| DEI Sales Inc. dba Definitive Technology |
| 5541 Fermi Ct. |
| Carlsbad, CA 92008 |
| Attention: Norbert Richardson , Director of NPD |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | IPUSTUDIOMICRO |
| Name of Grantee: | DEI Sales Inc. dba Definitive Technology |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | W Studio Micro System |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC ND | 15E | 5150.0 - 5250.0 | 0.0157 | ||
| 38 CC ND | 15E | 5250.0 - 5350.0 | 0.0179 | ||
| 38 CC ND | 15E | 5470.0 - 5725.0 | 0.0187 | ||
| 38 CC ND | 15E | 5725.0 - 5850.0 | 0.0152 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application mCx5s4JLQxzwLqsBf4BBuQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
DEI Sales Inc. dba Definitive Technology 5541 Fermi Ct. Carlsbad, CA 92008 United States |
Date of Grant: 09/22/2015 Application Dated: 09/22/2015 |
| Attention: Norbert Richardson , Director of NPD |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | IPUSTUDIOMICRO |
| Name of Grantee: | DEI Sales Inc. dba Definitive Technology |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | W Studio Micro System |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC ND | 15E | 5150.0 - 5250.0 | 0.0157 | ||
| 38 CC ND | 15E | 5250.0 - 5350.0 | 0.0179 | ||
| 38 CC ND | 15E | 5470.0 - 5725.0 | 0.0187 | ||
| 38 CC ND | 15E | 5725.0 - 5850.0 | 0.0152 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 09/22/2015 Application Dated: 09/22/2015 |
| DEI Sales Inc. dba Definitive Technology |
| 5541 Fermi Ct. |
| Carlsbad, CA 92008 |
| Attention: Norbert Richardson , Director of NPD |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | IPUSTUDIOMICRO |
| Name of Grantee: | DEI Sales Inc. dba Definitive Technology |
| Equipment Class: | Digital Transmission System |
| Notes: | W Studio Micro System |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.1306 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application eVca7u6kwWpGgyybx7BruQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
DEI Sales Inc. dba Definitive Technology 5541 Fermi Ct. Carlsbad, CA 92008 United States |
Date of Grant: 09/22/2015 Application Dated: 09/22/2015 |
| Attention: Norbert Richardson , Director of NPD |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | IPUSTUDIOMICRO |
| Name of Grantee: | DEI Sales Inc. dba Definitive Technology |
| Equipment Class: | Digital Transmission System |
| Notes: | W Studio Micro System |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.1306 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
