CD1 UHF Transmitter RF Exposure Info - FCC ID IYZCD1

FCC ID IYZCD1

Antenna trace details

UHF Transmitter

by Marquardt GmbH

Document preview loads when visible.

Document Details

FCC IDIYZCD1
Document ID6301804
Document TypeRF Exposure Info

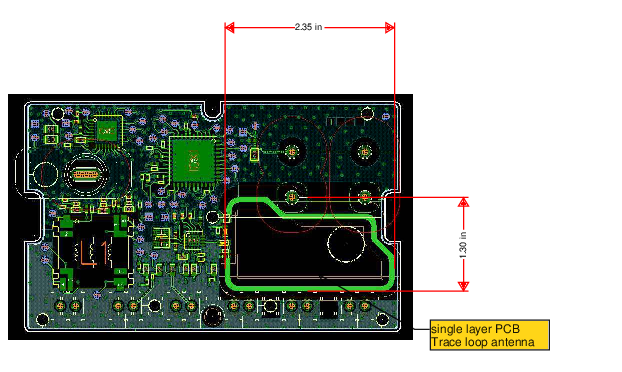

DescriptionAntenna trace details
Document Title2022-11-23_PCB antenna gerber-CD1
ApplicantMarquardt GmbH
Equipment ClassUHF Transmitter
Product CodeCD1
Application IDJDOgnFTulptISyyTPRAHZg==
Application PurposeOriginal Equipment
Application Date2022-12-30
Frequency Range433.92 MHz
FRN0003184249
Test FirmAHD (Amber Helm Development, L.C.)
Certified ByJoseph Brunett
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2022-12-29
Available2022-12-30
Created2022-12-23
Modified2022-12-23
Pages1
File TypeAdobe Acrobat PDF
File Size125505
File SHA-256bfcc356d7d20c3e2d241dec1fd9f4e146e8441778e6753d3280cd070e0510d91
PDF Metadata Authorjdbru
PDF Metadata ProducerGPL Ghostscript 9.21 jdbru
FCC.gov SourcesFCC.gov 6301804
