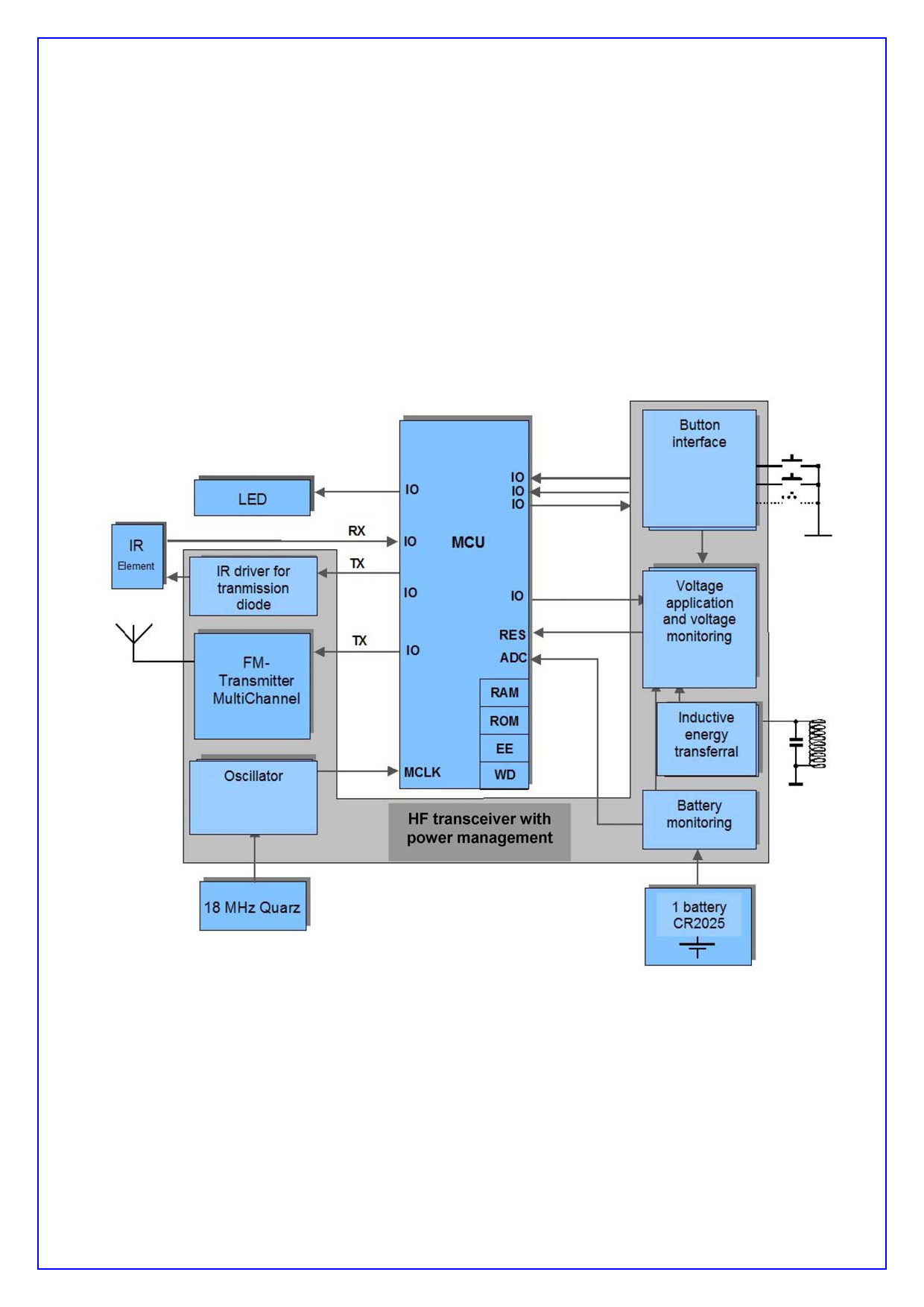

DC07 Transceiver Block Diagram - FCC ID IYZDC07

FCC ID IYZDC07

Block diagram Basis

Transceiver

by Marquardt GmbH

Document preview loads when visible.

Document Details

FCC IDIYZDC07
Document ID974729
Document TypeBlock Diagram
DescriptionBlock diagram Basis
Document TitleBR212 Key Basis - Annex No 7 _Block diagram_
ApplicantMarquardt GmbH
Equipment ClassTransceiver
Product CodeDC07
Application ID/kNtuGf91y8+jD/pCvllMQ==
Application PurposeOriginal Equipment
Application Date2008-07-23
Frequency Range314-315 MHz
FRN0007486251
Test Firmm. dudde hochfrequenz-technik
Certified ByRalf Trepper Technical engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-07-23
Available2008-07-23
Created2008-07-07
Modified2008-07-07
Pages1
File TypeAdobe Acrobat PDF
File Size83008
File SHA-2567dfacea14512ce7ce1dfaa86b65b4f57c294ea780bcef653741e5b2a16354ff4
PDF Metadata AuthorRalf Trepper
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 8.1.0 (Windows)
FCC.gov SourcesFCC.gov 974729
