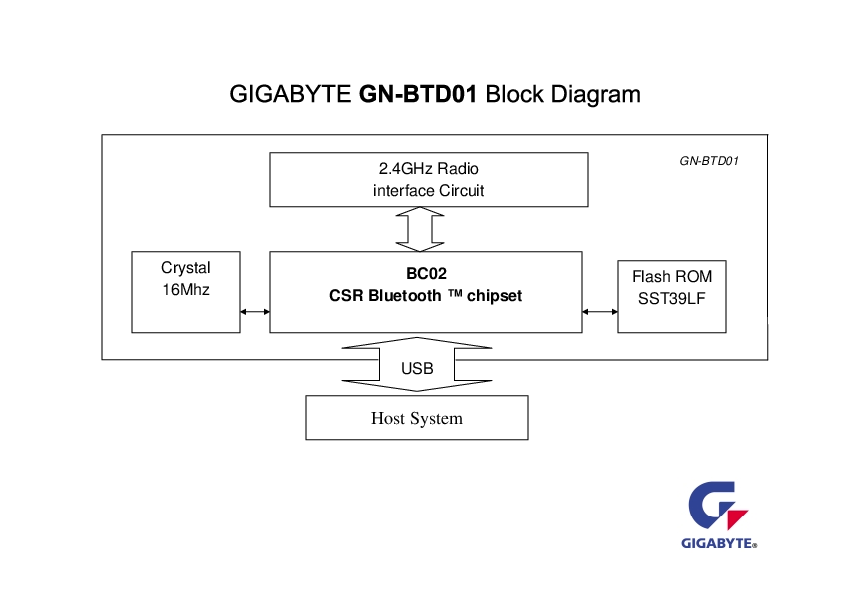

GNBTD01 Bluetooth USB Dongle Block Diagram - FCC ID JCKGN-BTD01

FCC ID JCKGN-BTD01

block diagram

Bluetooth USB Dongle

by GIGA-BYTE TECHNOLOGY CO., LTD.

Document preview loads when visible.

Document Details

FCC IDJCKGN-BTD01
Document ID269480
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantGIGA-BYTE TECHNOLOGY CO., LTD.
Equipment ClassBluetooth USB Dongle
Product CodeGNBTD01
Application IDh4tznwhNTu/Ybj/bceEwaA==
Application PurposeOriginal Equipment
Application Date2002-09-10
Frequency Range2402-2461 MHz
FRN0017483132
Test FirmDEKRA Testing and Certification Co., Ltd.
Certified ByAlani Sam
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-09-11
Available2002-09-10
Created2002-07-31
Modified2002-08-16
Pages1
File TypeAdobe Acrobat PDF
File Size20655
File SHA-256c379f5b6260ddbb4cfec4c6cdd9c3157cd4359c87802f3a315d0e2d680871a95
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 269480
