FCC ID JF6-9558L
MPT-HLC Point-to-Point Microwave Radio
by Alcatel USA Marketing, Inc.
Grantee Code: JF6 Product Code: 9558L
Latest application date: 2018-07-03
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5731-5844 MHz | Class II permissive change or modification of presently authorized equipment | 2018-07-03 |
| 5731-5844 MHz | Original Equipment | 2016-10-20 |
| 5731-5844 MHz | Original Equipment | 2015-05-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2018-07-03 | PDF 616.9 KB |
| Users Manual | Users Manual | 2016-10-20 | PDF 749.5 KB |
| Internal Photos | Internal Photos | 2018-07-03 | PDF 897 KB |

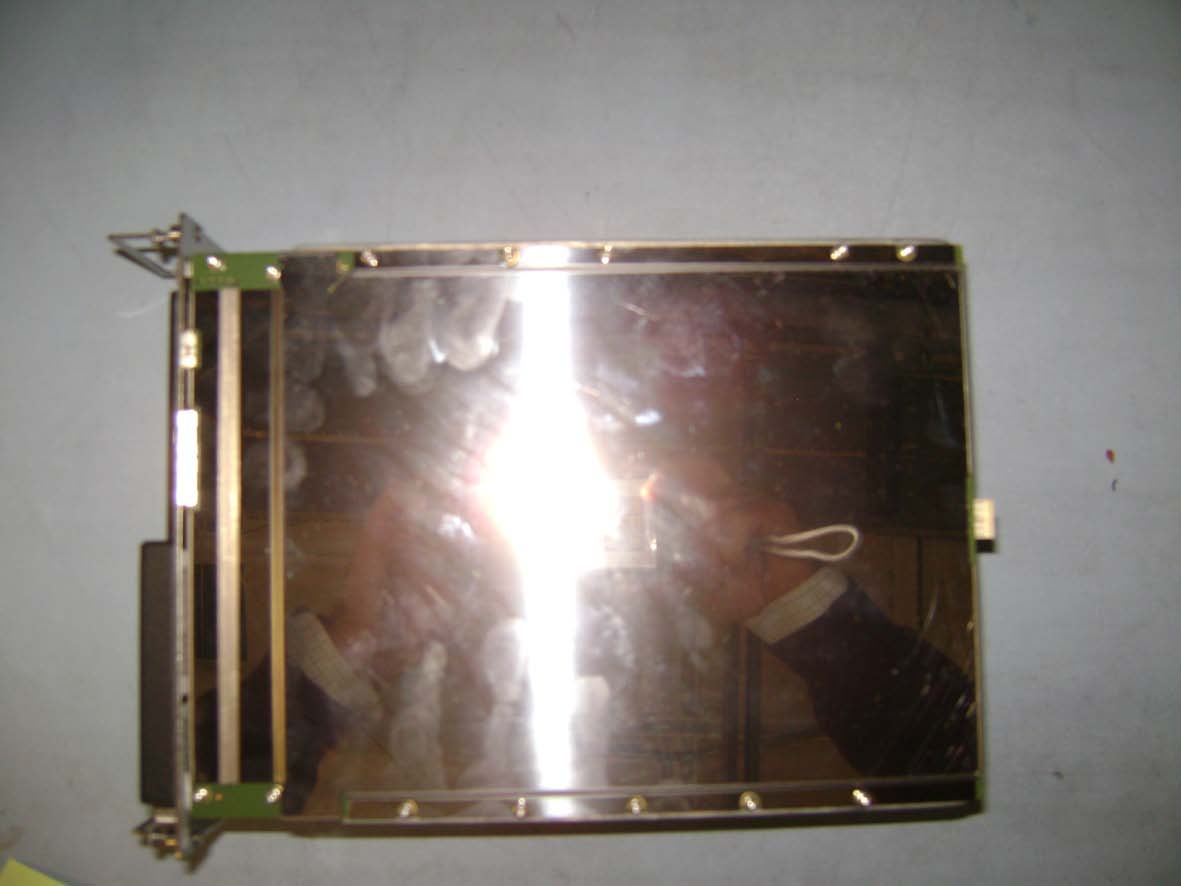

| External Photos | External Photos | 2018-07-03 | PDF 500.4 KB |
| Label and Label Location | ID Label/Location Info | 2018-07-03 | PDF 1.1 MB |
| Operational Description | Operational Description | 2015-05-29 | PDF 766.6 KB |

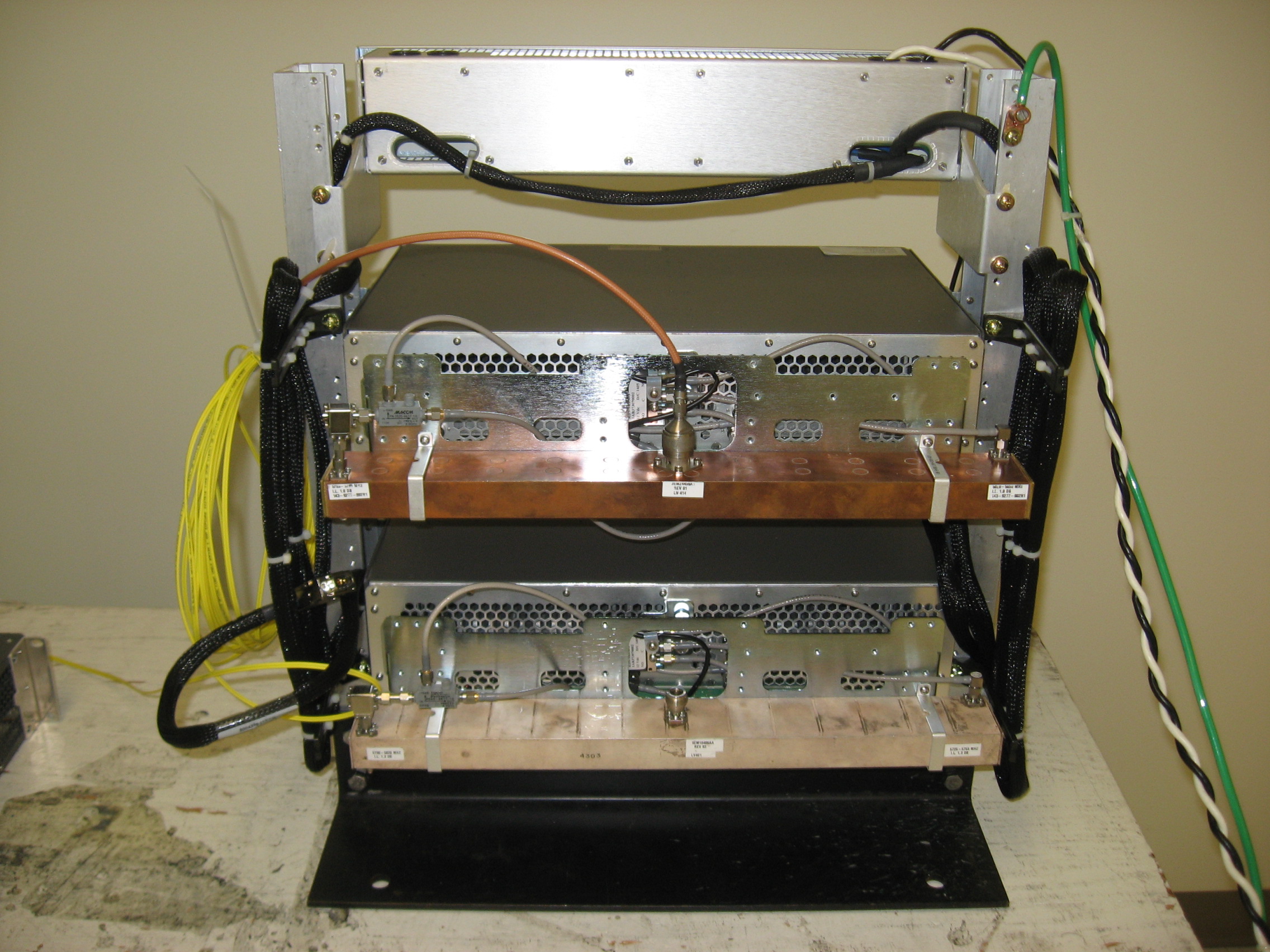

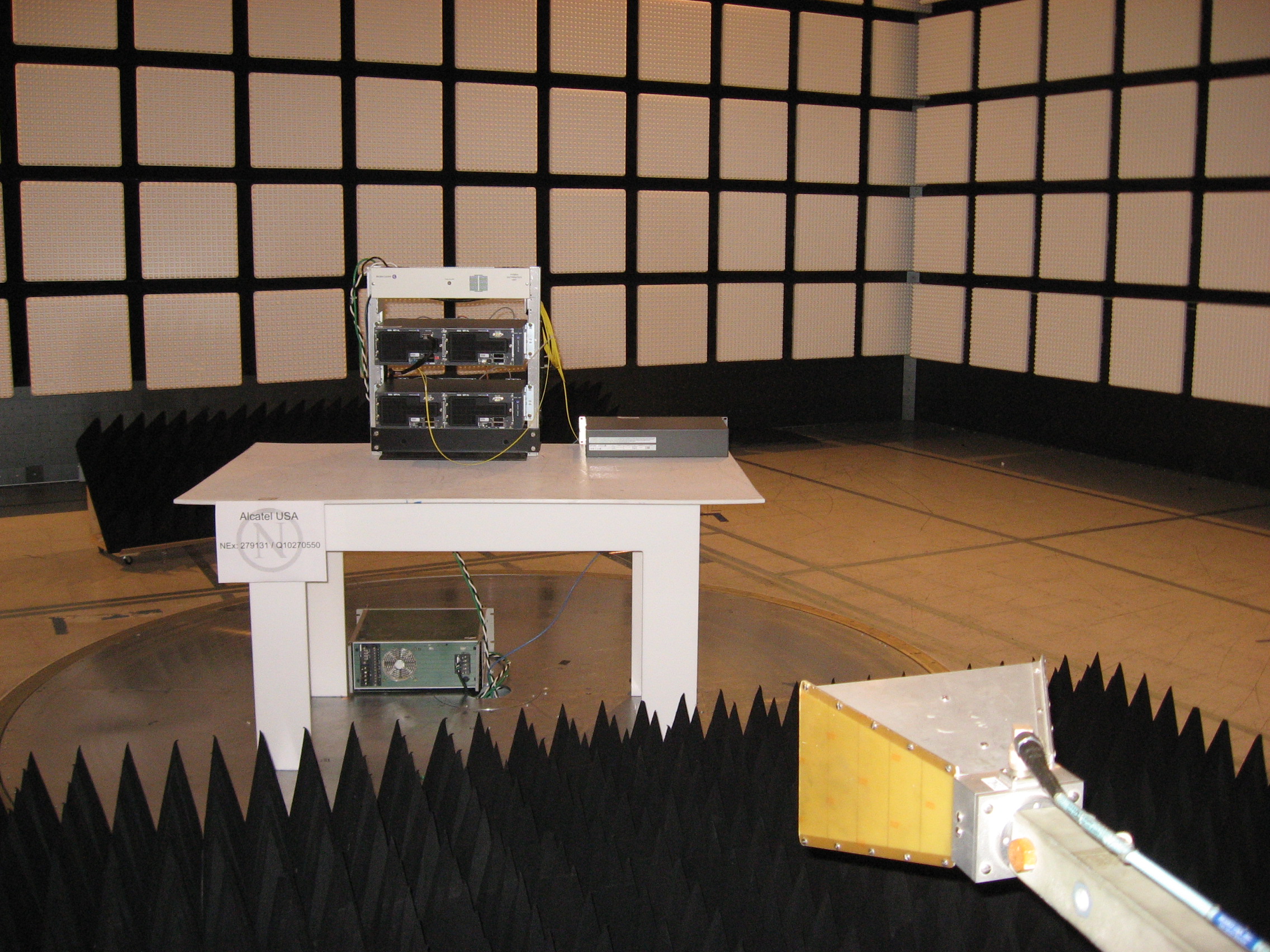

| Test Setup Photos | Test Setup Photos | 2018-07-03 | PDF 4 MB |
| Test Report | Test Report | 2018-07-03 | PDF 3.4 MB |
| Test Report | Test Report | 2016-10-20 | PDF 1.5 MB |
| Cover Letters | Cover Letter(s) | 2018-07-03 | PDF 226.2 KB |
| Cover Letters | Cover Letter(s) | 2016-10-20 | PDF 200.3 KB |
| Cover Letters | Cover Letter(s) | 2015-05-29 | PDF 198.3 KB |
| RF Exposure info | RF Exposure Info | 2018-07-03 | PDF 24.1 KB |
| RF Exposure info | RF Exposure Info | 2016-10-20 | PDF 24.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 102.8 KB | |
| Schematics Metadata only | Schematics | PDF 2.5 MB |
Application Information
| Application ID | u6wgssAPTeoUae8n2N5mRQ== |
|---|---|
| Final Action Date | 2018-07-03 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0021916358 |
| Model | 9558L |
| Frequency Range | 5731-5844 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | MPT-HLC Point-to-Point Microwave Radio |
| Responsible Party | Alfred Holland, R&D; Manager, alfred.holland@nokia.com  , 469-865-8238 |
| Test Firm | Charles Neal, Nemko USA, Inc. - San Diego EMC Division, charles.neal@nemko.com  , 613-737-9680 x239 |
| TCB Email | Stuart.Beck@nemko.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antennas used for this transmitter must be installed to provide a separation distance of at least 12 m from all persons and must not transmit simultaneously with any other antenna or transmitters. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| u6wgssAPTeoUae8n2N5mRQ== | 2018-07-03 | Class II permissive change or modification of presently authorized equipment |
| C2ftqHPZu5ZN1Bia3rYs+A== | 2016-10-20 | Original Equipment |
| 9LWds4btrPy4qAarooBdcA== | 2015-05-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application u6wgssAPTeoUae8n2N5mRQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 07/03/2018 Application Dated: 07/03/2018 |
| Alcatel USA Marketing, Inc. |
| 601 Data Drive |
| Plano, TX 75075 |
| Attention: Alfred Holland , R&D Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | JF6-9558L |
| Name of Grantee: | Alcatel USA Marketing, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | MPT-HLC Point-to-Point Microwave Radio |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15E | 5731.0 - 5844.0 | 0.841 | |||
| 15E | 5731.0 - 5844.0 | 0.885 | |||
| 15E | 5741.0 - 5834.0 | 0.918 |
| Power listed is conducted. The antennas used for this transmitter must be installed to provide a separation distance of at least 12 m from all persons and must not transmit simultaneously with any other antenna or transmitters. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance |
