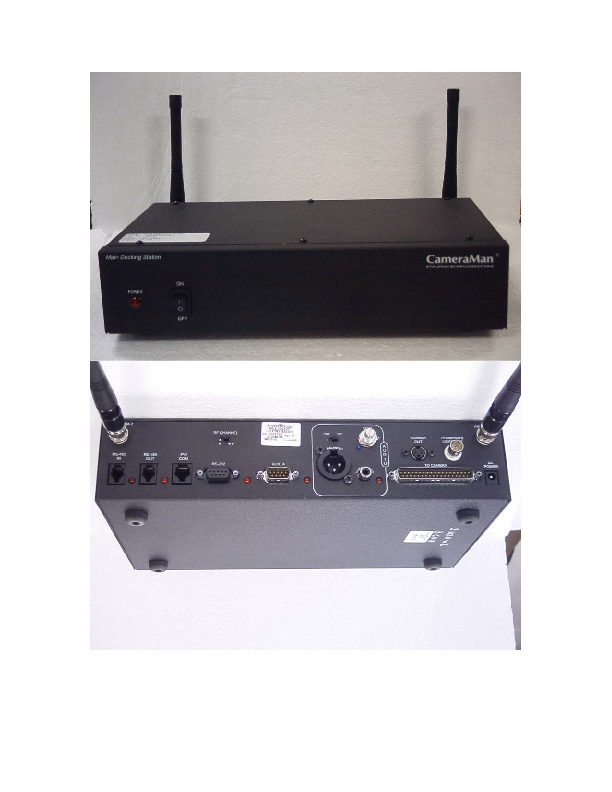

MDS2003 CAMERA CONTROL RECEIVER External Photos - FCC ID JFEMDS-2003

FCC ID JFEMDS-2003

EXTERNAL PHOTOS

CAMERA CONTROL RECEIVER

by ParkerVision Inc

Document preview loads when visible.

Document Details

FCC IDJFEMDS-2003
Document ID406182
Document TypeExternal Photos
DescriptionEXTERNAL PHOTOS
Document Title2
ApplicantParkerVision Inc
Equipment ClassCAMERA CONTROL RECEIVER
Product CodeMDS2003
Application IDe32Yl29kTlsOR8C6rsi9xw==
Application PurposeOriginal Equipment
Application Date2004-03-17
Frequency Range207-213 MHz
FRN0009655416
Test FirmTimco Engineering, Inc.
Certified ByJEFFREY ROBY
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-03-18
Available2004-03-17
Created2004-03-15
Modified2004-03-15
Pages1
File TypeAdobe Acrobat PDF
File Size93626
File SHA-256edf289dcf106dc93dcfa0a826f1b9ef8d0ff0c717223ff0f1e2d55252c6d67c0
PDF Metadata Authorerin
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows) erin
FCC.gov SourcesFCC.gov 406182
