FCC ID JFZDSR9BT
Bluetooth Headphones
by Audio-Technica Corporation
Grantee Code: JFZ Product Code: DSR9BT
Latest application date: 2016-12-30
Device Images
FCC ID Device Details
| FCC ID | JFZDSR9BT |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | JFZ |
| Product Code | DSR9BT |
| Applicant Business | Audio-Technica Corporation 🇯🇵 |
| Related Domains |  audio-technica.co.jp |
| Equipment Class | Bluetooth Headphones |
| Test Firm | Timco Engineering, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-12-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual Part 1 | Users Manual | 2016-12-30 | PDF 3.7 MB |
| User Manual Part 2 | Users Manual | 2016-12-30 | PDF 3.6 MB |

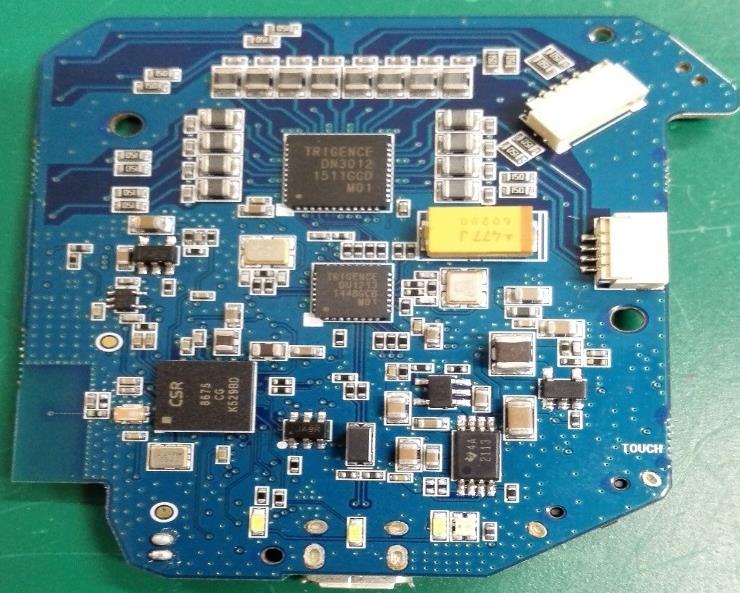

| Internal Photo | Internal Photos | 2016-12-30 | PDF 524.1 KB |
| External Photo | External Photos | 2016-12-30 | PDF 361.3 KB |
| Label Fin | ID Label/Location Info | 2016-12-30 | PDF 180.1 KB |
| Label Location | ID Label/Location Info | 2016-12-30 | PDF 531.5 KB |

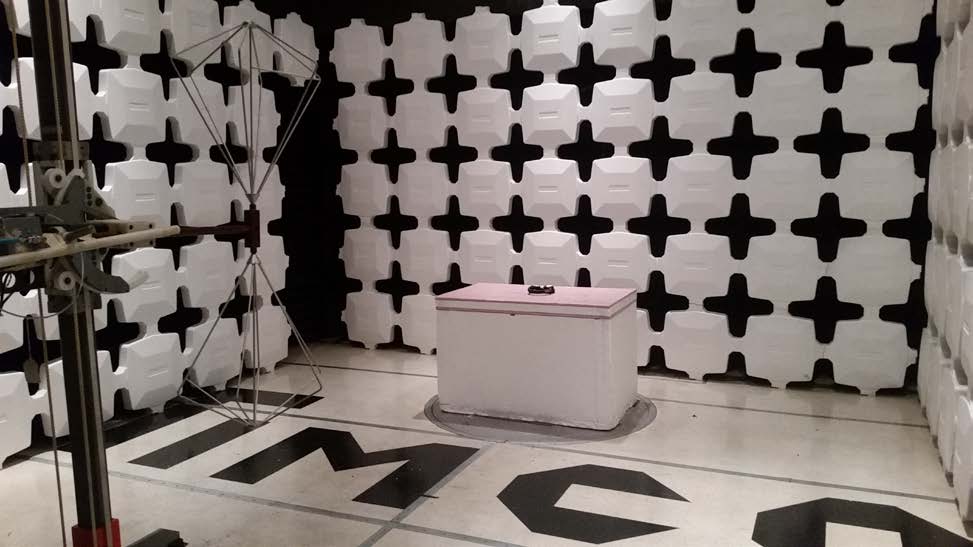

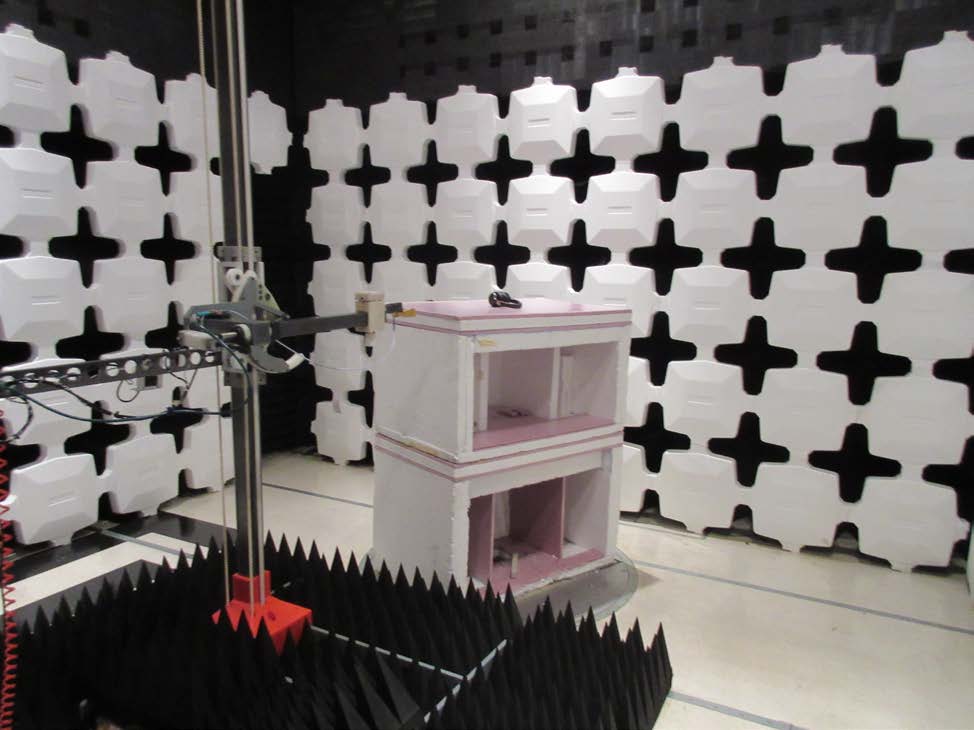

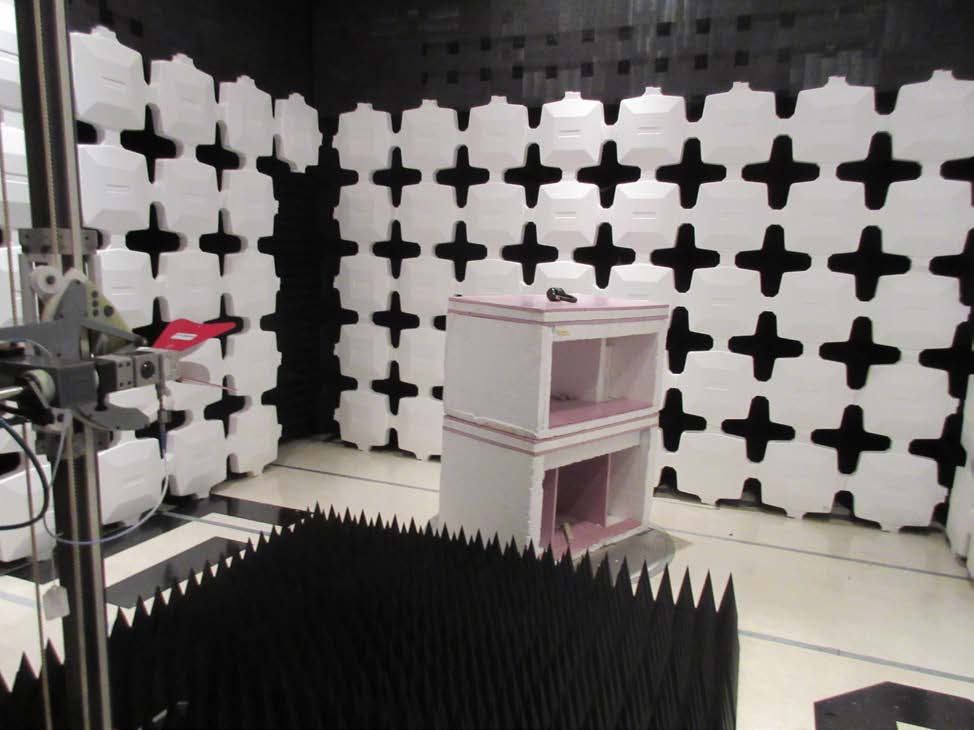

| Test Setup Photos | Test Setup Photos | 2016-12-30 | PDF 797.9 KB |
| Test Report | Test Report | 2016-12-30 | PDF 2.4 MB |
| POA | Cover Letter(s) | 2016-12-30 | PDF 24.7 KB |
| Request for Confidentiality | Cover Letter(s) | 2016-12-30 | PDF 597.9 KB |
| MPE Report | RF Exposure Info | 2016-12-30 | PDF 175.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 291.8 KB | |
| RF Block Diagram Metadata only | Block Diagram | PDF 229.4 KB | |
| Schematic Main Metadata only | Schematics | PDF 109.2 KB | |
| Schematic Sub Metadata only | Schematics | PDF 30.4 KB | |
| Schematic Touch Metadata only | Schematics | PDF 10 KB | |
| Operational Description Circuit Metadata only | Operational Description | PDF 55.1 KB |
Application Information
| Application ID | e3qc8Q4daFK/M6q/AKDy3Q== |
|---|---|
| Final Action Date | 2016-12-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0028730448 |
| Model | DSR9BT |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Bluetooth Headphones |
| Responsible Party | Fumio Kamimura, General Manager, Engineering Planning Division, kamimura@audio-technica.co.jp , 81-42-739-9128 |
| Test Firm | Bruno Clavier, Timco Engineering, Inc., bruno@timcoengr.com  , 352-472-5500 |
| TCB Email | TEI@TIMCOENGR.COM |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| e3qc8Q4daFK/M6q/AKDy3Q== | 2016-12-30 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0068000 | 15C |
Grants
TCB Grant - Application e3qc8Q4daFK/M6q/AKDy3Q==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 12/30/2016 Application Dated: 12/30/2016 |
| Audio-Technica Corporation |
| 2-46-1 Nishi-naruse, Machida |
| Tokyo, 194-8666 Japan |
| Attention: Fumio Kamimura , General Manager, Engineering Planning Division |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | JFZDSR9BT |
| Name of Grantee: | Audio-Technica Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Bluetooth Headphones |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0068 |
| Power listed is conducted. |
EAS Grant - Application e3qc8Q4daFK/M6q/AKDy3Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida Tokyo, 194-8666 Japan |
Date of Grant: 12/30/2016 Application Dated: 12/30/2016 |
| Attention: Fumio Kamimura , General Manager, Engineering Planning Division |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | JFZDSR9BT |
| Name of Grantee: | Audio-Technica Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Bluetooth Headphones |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0068 |
| Power listed is conducted. |
