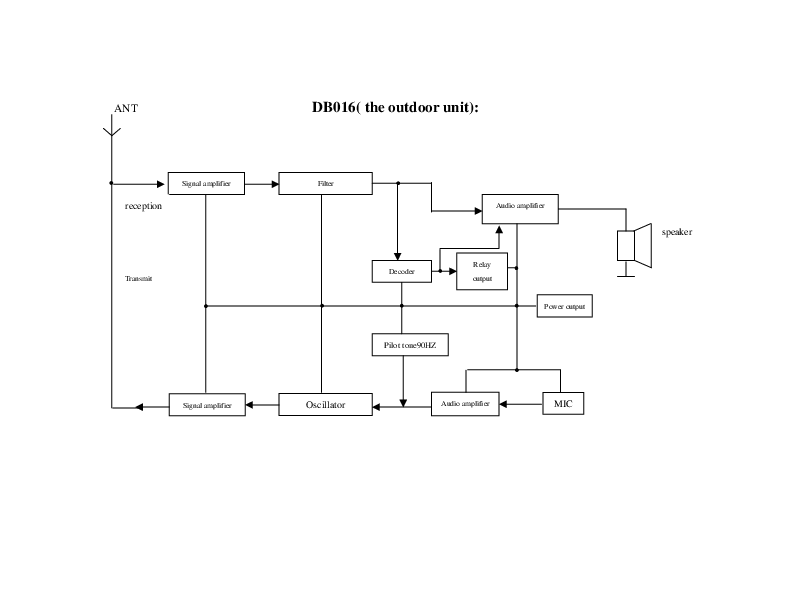

DB016TX Wireless Two Way Doorbell Block Diagram - FCC ID JGFDB016TX

FCC ID JGFDB016TX

Block Diagram

Wireless Two Way Doorbell

by Invent-Tech Electronics Manufactory Limited

Document preview loads when visible.

Document Details

FCC IDJGFDB016TX
Document ID484777
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title( - DB016_f\311\363\350__)
ApplicantInvent-Tech Electronics Manufactory Limited
Equipment ClassWireless Two Way Doorbell
Product CodeDB016TX
Application IDhNLmWcuZyqUA+TR81NFXXw==
Application PurposeOriginal Equipment
Application Date2004-11-02
Frequency Range49.86-49.89 MHz
FRN0007208176
Test FirmAdvanced Compliance Laboratory
Certified ByWei Li Manager (agent)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-11-02
Available2004-11-02
Created2004-08-06
Modified2004-08-06
Pages1
File TypeAdobe Acrobat PDF
File Size13356
File SHA-256342b62cd34ef37208d2192a0a0287b920946eff8d59d411edda239256decfcfe
PDF Metadata Authorjohn
PDF Metadata ProducerGNU Ghostscript 7.06 PScript5.dll Version 5.2
FCC.gov SourcesFCC.gov 484777
