0015 RadioRA Cordless Table Top Master Control... - FCC ID JPZ0015
FCC ID JPZ0015

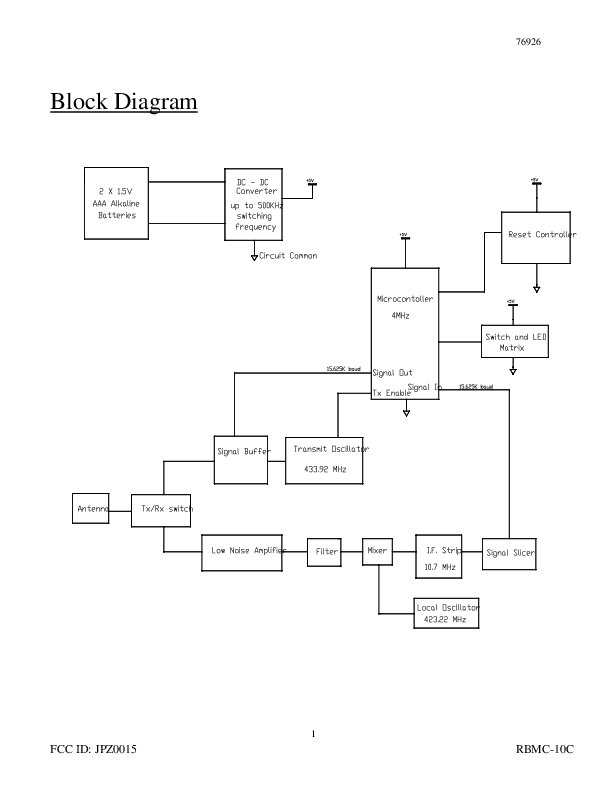

Block Diagram with oscillator frequencies
RadioRA Cordless Table Top Master Control
Document preview loads when visible.
Document Details
| FCC ID | JPZ0015 |
|---|---|
| Document ID | 76926 |
| Document Type | Block Diagram |
| Description | Block Diagram with oscillator frequencies |
| Applicant | Lutron Electronics Company Inc |
| Equipment Class | RadioRA Cordless Table Top Master Control |
| Product Code | 0015 |
| Application ID | ycd8ko9RkWGAiYFImcPZQA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-06-02 |
| Frequency Range | 433.77-434.07 MHz |
| FRN | 0006220891 |
| Test Firm | Radiation Sciences Incorporated |
| Certified By | Robert S. Spehalski Senior Project Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-12-17 |
| Available | 2003-06-02 |
| Created | 2001-05-08 |
| Modified | 2001-05-08 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 23735 |
| File SHA-256 | d5093de27a604c932424ebcb8e266beea46f9f3858c5a5f22852ade07330362f |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 76926 |
