  4. JPZ0018 Block Diagram

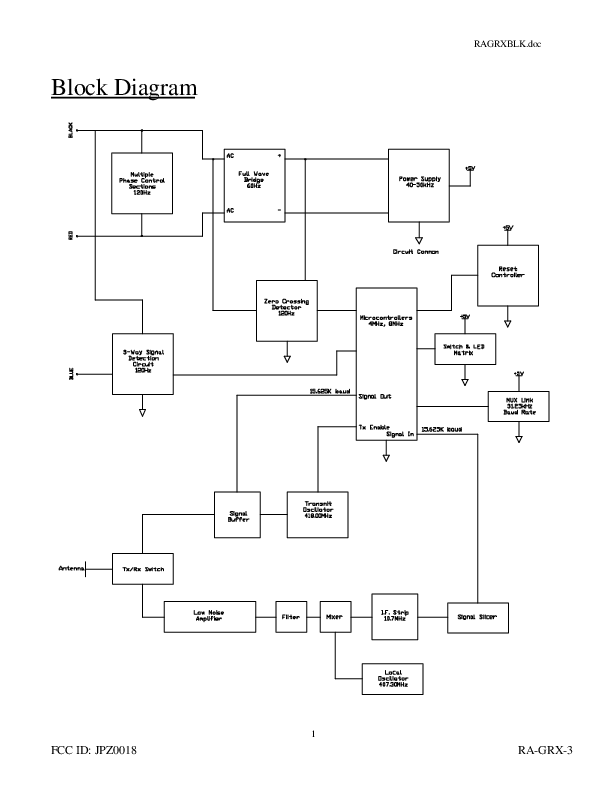

0018 Light Dimmer Block Diagram - FCC ID JPZ0018

FCC ID JPZ0018

JPZ0018 Block Diagram

Light Dimmer

by Lutron Electronics Company Inc

Document preview loads when visible.

Document Details

FCC IDJPZ0018
Document ID223641
Document TypeBlock Diagram
DescriptionJPZ0018 Block Diagram
Document TitleRAGRXBLK.PDF
ApplicantLutron Electronics Company Inc
Equipment ClassLight Dimmer
Product Code0018
Application IDdBE9tYPe+0+43AwEESH8uQ==
Application PurposeOriginal Equipment
Application Date2002-02-19
Frequency Range418 MHz
FRN0006220891
Test FirmUL LLC
Certified ByRobert Spehalski Engineering Leader - Lutron
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-01-31
Available2002-02-19
Created2001-12-11
Modified2001-12-11
Pages2
File TypeAdobe Acrobat PDF
File Size13219
File SHA-256bbde280b4b0be3fc94b2d4fe3287ac82e364af7da6d45de5b8601d0da46fd6c6
PDF Metadata Authoremcbackup
PDF Metadata ProducerMicrosoft Word - RAGRXBLK.doc Acrobat PDFWriter 4.05 for Windows NT
FCC.gov SourcesFCC.gov 223641
