0029 Keypad Block Diagram - FCC ID JPZ0029
FCC ID JPZ0029
Block Diagram
Keypad
Document preview loads when visible.
Document Details
| FCC ID | JPZ0029 |
|---|---|
| Document ID | 389222 |
| Document Type | Block Diagram |

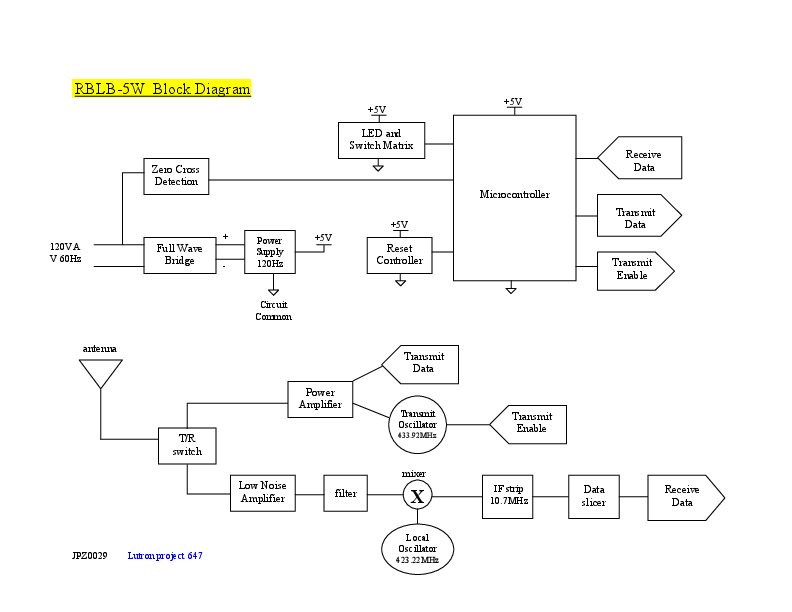

| Description | Block Diagram |
| Document Title | 389222 |
| Applicant | Lutron Electronics Company Inc |
| Equipment Class | Keypad |
| Product Code | 0029 |
| Application ID | TT7WP3eORvlRgtrHx0UaZw== |
| Application Purpose | Original Equipment |
| Application Date | 2004-01-15 |
| Frequency Range | 433.92 MHz |
| FRN | 0006220891 |
| Test Firm | UL LLC |
| Certified By | Robert S. Spehalski Global Standards Leader |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2004-01-15 |
| Available | 2004-01-15 |
| Created | 2004-01-16 |
| Modified | 2004-01-16 |
| Pages | 1 |
| File Type | Microsoft Word |
| File Size | 49408 |
| File SHA-256 | 6bca6e44190141ed06e4a542ec375bbeb2249a7c3ccfa2c538e6ee149be646fe |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | Acrobat Distiller 5.0.5 (Windows) Administrator |
| FCC.gov Sources | FCC.gov 389222 |
