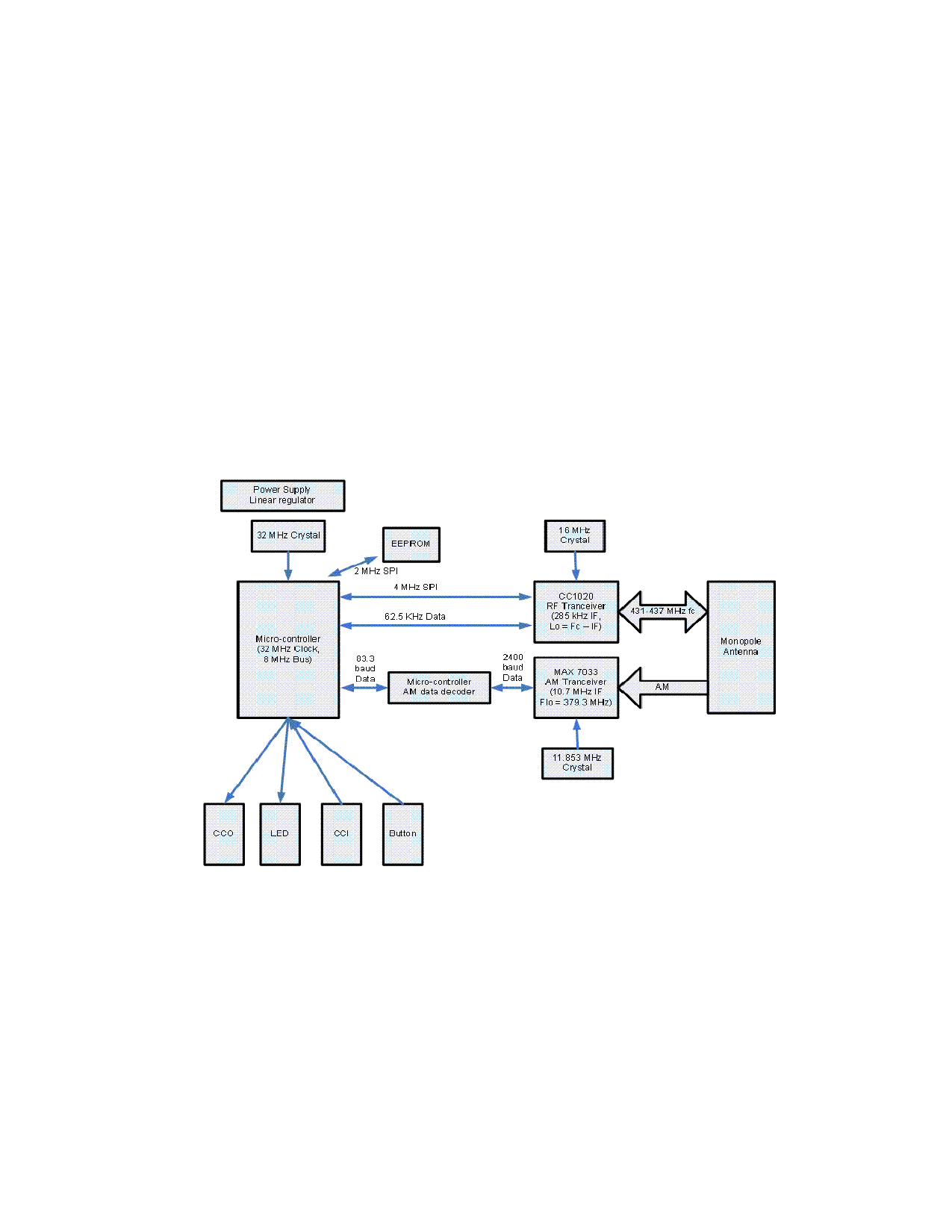

0064 Visor Control Receiver Block Diagram - FCC ID JPZ0064

FCC ID JPZ0064

Block Diagram

Visor Control Receiver

by Lutron Electronics Company Inc

Document preview loads when visible.

Document Details

FCC IDJPZ0064
Document ID1184323
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Titlefile://C:\ and Settings\mcardoni.INTRA\Local Settings\
ApplicantLutron Electronics Company Inc
Equipment ClassVisor Control Receiver
Product Code0064
Application IDjhKw8jrMra84tq3FmfBiwg==
Application PurposeOriginal Equipment
Application Date2009-10-16
Frequency Range431-437 MHz
FRN0006220891
Test FirmUL LLC
Certified ByRobert Spehalski Engineering Leader
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-10-16
Available2009-10-16
Created2009-10-07
Modified2009-10-07
Pages1
File TypeAdobe Acrobat PDF
File Size30218
File SHA-25641a79ddefb95198544db57f2ae610664a6792186cd681e578ec7d9cdc25d7eb6
PDF Metadata Authormcardoni
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 7.0.5 (Windows)
FCC.gov SourcesFCC.gov 1184323
