1. FCC ID
  2. JT3
  3. JT3KT7A
  4. USES MANUAL PAGE FOUR

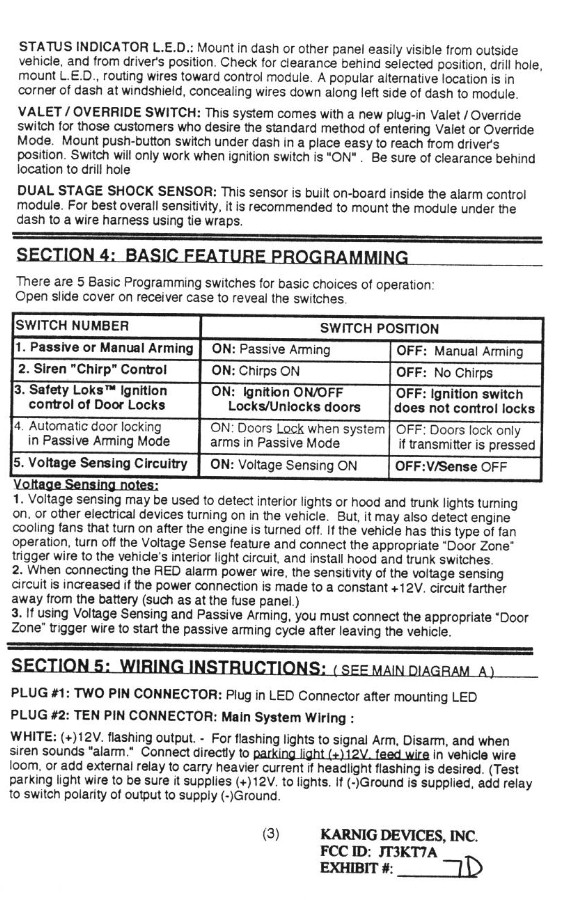

KT7A SECURITY DEVICE TRANSMITTER User Manual - FCC ID JT3KT7A

FCC ID JT3KT7A

USES MANUAL PAGE FOUR

SECURITY DEVICE TRANSMITTER

by Karnig Devices Inc

USES MANUAL PAGE FOUR

Document Details

FCC IDJT3KT7A
Document ID13766
Document TypeUsers Manual
DescriptionUSES MANUAL PAGE FOUR
ApplicantKarnig Devices Inc
Equipment ClassSECURITY DEVICE TRANSMITTER
Product CodeKT7A
Application IDLmgtosAFzD3Jyli2vmZQEw==
Application PurposeOriginal Equipment
Application Date1999-01-20
Frequency Range433.5-434.5 MHz
FRN9999999999
Test FirmTimco Engineering, Inc.
Certified ByS. S. SANDERS ENGINEER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1998-11-23
Available1999-01-20
Pages0
File TypeJPEG Image
File Size218224
File SHA-256f4ee81cedb10d4f2350e35dd0c5449ff30217e2a0e16c2be4889e8dfe0608abb
FCC.gov SourcesFCC.gov 13766
