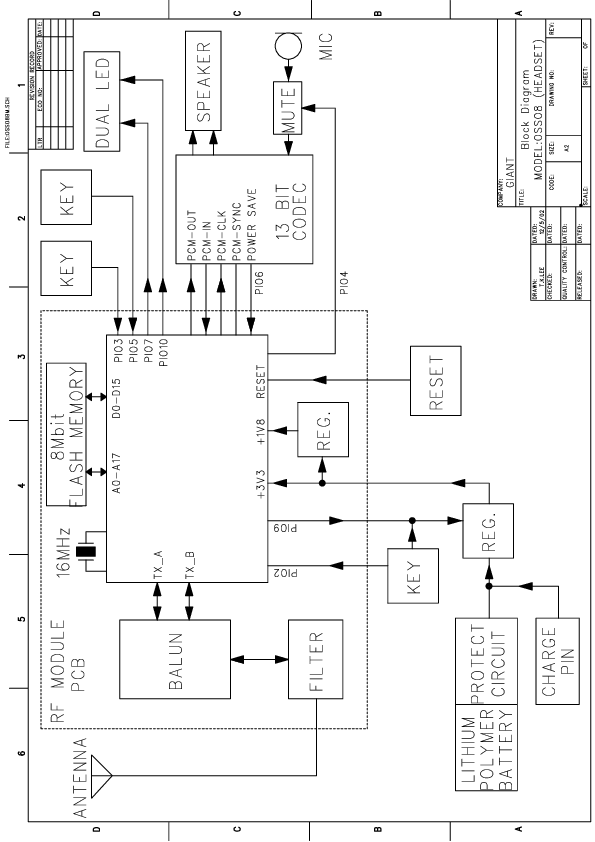

OSSO8 Bluetooth Headset Block Diagram - FCC ID K7GOSSO8

FCC ID K7GOSSO8

Block Diagram

Bluetooth Headset

by Giant Electronics Ltd

Document preview loads when visible.

Document Details

FCC IDK7GOSSO8
Document ID366738
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantGiant Electronics Ltd
Equipment ClassBluetooth Headset
Product CodeOSSO8
Application IDzNh68PjP8TvXMUYjnypRWA==
Application PurposeOriginal Equipment
Application Date2003-10-21
Frequency Range2400-2483.5 MHz
FRN0024598658
Test FirmRFI Global Services Ltd.
Certified ByNorman Tse Engineering Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-10-21
Available2003-10-21
Created2003-08-04
Modified2003-08-04
Pages1
File TypeAdobe Acrobat PDF
File Size34026
File SHA-25661a4fa631e94862d24f7c321acaa2485f3084f104447ca2997f8cc5fa653e2cb
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 366738
