Document Details
| FCC ID | K9L3301BE |
|---|---|
| Document ID | 628200 |
| Document Type | Block Diagram |

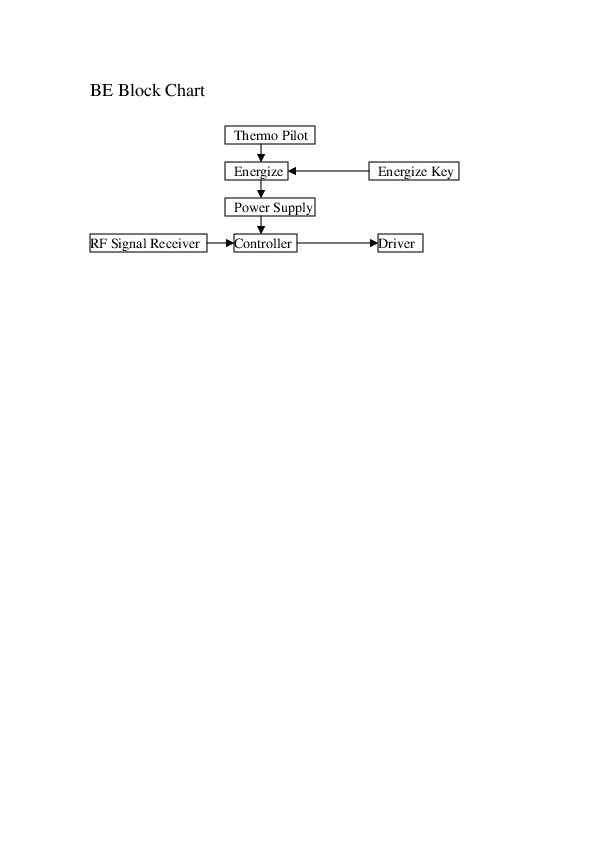

| Description | BLOCK DIAGRAM |
| Applicant | Skytech II, Inc. |
| Equipment Class | RECEIVER |
| Product Code | 3301BE |
| Application ID | MFUDdJhk/SUYkttSeRfvZg== |
| Application Purpose | Original Equipment |
| Application Date | 2006-02-10 |
| Frequency Range | 303.8 MHz |
| FRN | 0016902876 |
| Test Firm | Max Light Technology Co., Ltd. |
| Certified By | BEENNAN ELECTRONIC ENGINEER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-02-13 |
| Available | 2006-02-10 |
| Created | 2006-01-19 |
| Modified | 2006-01-19 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 6496 |
| File SHA-256 | c47e00ed51753638fa20ecd9752465606de1b4324c2be3c69945ff25a65b0d03 |
| PDF Metadata Producer | Acrobat Distiller 5.0.5 (Windows) |
| FCC.gov Sources | FCC.gov 628200 |
