FCC ID KA2AP1720A1
AC1750 Wi-Fi Range Extender
by D-Link Corporation
Grantee Code: KA2 Product Code: AP1720A1
Latest application date: 2016-12-30
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-12-30 |
| 2412-2462 MHz | Original Equipment | 2016-12-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-12-30 | PDF 1.9 MB |

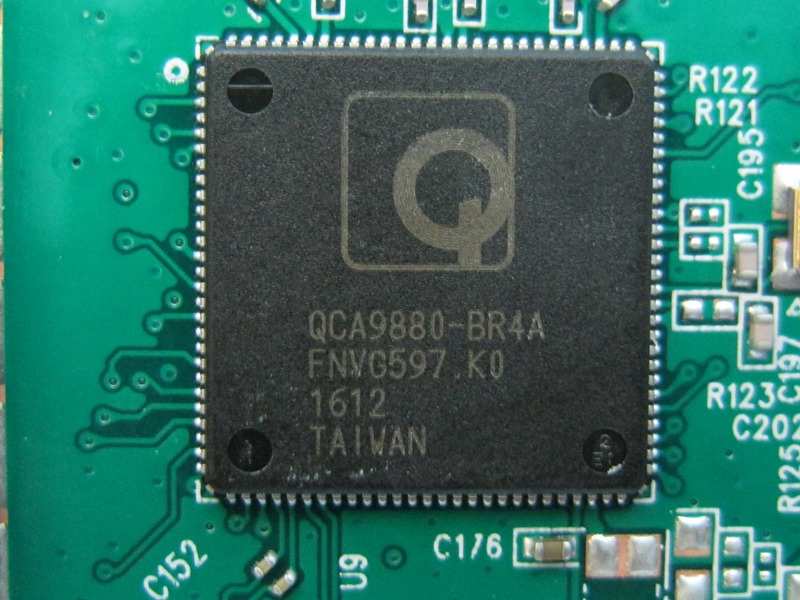

| Internal Photo | Internal Photos | 2016-12-30 | PDF 1.4 MB |
| Internal Photos | Internal Photos | 2016-12-30 | PDF 1.4 MB |
| External Photo | External Photos | 2016-12-30 | PDF 190.9 KB |
| External Photos | External Photos | 2016-12-30 | PDF 190.9 KB |
| Label and Location | ID Label/Location Info | 2016-12-30 | PDF 81.5 KB |
| Test Photos | Test Setup Photos | 2016-12-30 | PDF 270.7 KB |
| MPE Test Report | RF Exposure Info | 2016-12-30 | PDF 305.6 KB |
| Test Results of Co-Location | Test Report | 2016-12-30 | PDF 40.9 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-12-30 | PDF 25.5 KB |
| DOC Letter | Cover Letter(s) | 2016-12-30 | PDF 20.4 KB |
| POA | Cover Letter(s) | 2016-12-30 | PDF 20.8 KB |
| POA Grantee Contact Person | Cover Letter(s) | 2016-12-30 | PDF 203.8 KB |
| RF Report DTS | RF Exposure Info | 2016-12-30 | PDF 3.7 MB |
| RF Report NII | RF Exposure Info | 2016-12-30 | PDF 4.2 MB |
| Block Diagram Metadata only | Block Diagram | PDF 1.1 MB | |
| Schematics Metadata only | Schematics | PDF 564.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 70.6 KB | |
| Operational Description SW Security Metadata only | SDR Software/Security Inf | PDF 52.2 KB |
Application Information
| Application ID | 4ufyFSRldRN5vFWbp/hcPg== |
|---|---|
| Final Action Date | 2016-12-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007371172 |
| Model | AP1720A1 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | AC1750 Wi-Fi Range Extender |
| Responsible Party | Brett Adair, General Counsel, brett.adair@dlink.com  , 714-885-6282 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is maximum combined output power conducted. This device is restricted to indoor use only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 4ufyFSRldRN5vFWbp/hcPg== | 2016-12-30 | Original Equipment |
| /FwHATmntumSVBVCArU//g== | 2016-12-30 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application 4ufyFSRldRN5vFWbp/hcPg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 12/30/2016 Application Dated: 12/29/2016 |
| D-Link Corporation |
| 14420 Myford Road |
| Suite 100 |
| Irvine, CA 92606 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP1720A1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1750 Wi-Fi Range Extender |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.555 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.69 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 4ufyFSRldRN5vFWbp/hcPg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
D-Link Corporation 14420 Myford Road Suite 100 Irvine, CA 92606 United States |
Date of Grant: 12/30/2016 Application Dated: 12/29/2016 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP1720A1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AC1750 Wi-Fi Range Extender |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.555 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.69 |
| Power listed is maximum combined output power conducted. This device is restricted to indoor use only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40, and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
