FCC ID KA2AP2695A1
AirPremier AC Simultaneous Dual Band PoE Access Point
by D-Link Corporation
Grantee Code: KA2 Product Code: AP2695A1
Latest application date: 2016-03-08
Device Images
FCC ID Device Details
| FCC ID | KA2AP2695A1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | KA2 |
| Product Code | AP2695A1 |
| Applicant Business | D-Link Corporation 🇺🇸 |
| Related Domains |  dlink.com  sporton.com.tw |
| Equipment Class | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2016-03-08 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-03-08 |
| 5180-5240 MHz | Original Equipment | 2013-07-30 |
| 2412-2462 MHz | Original Equipment | 2013-07-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2013-07-30 | PDF 1.2 MB |
| internal photo | Internal Photos | 2013-07-30 | PDF 1.4 MB |

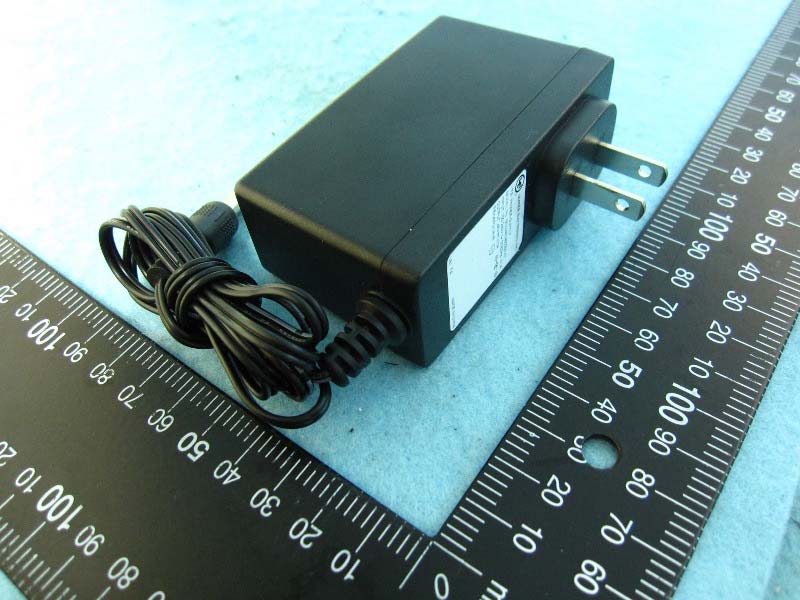

| External photo | External Photos | 2016-03-08 | PDF 657.9 KB |
| external photo | External Photos | 2013-07-30 | PDF 625 KB |
| ID label/Location info | ID Label/Location Info | 2013-07-30 | PDF 132.5 KB |

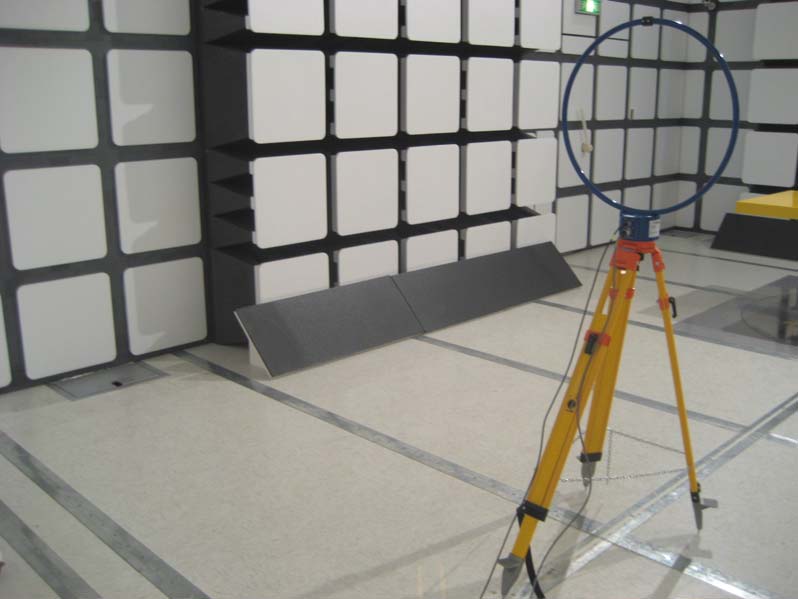

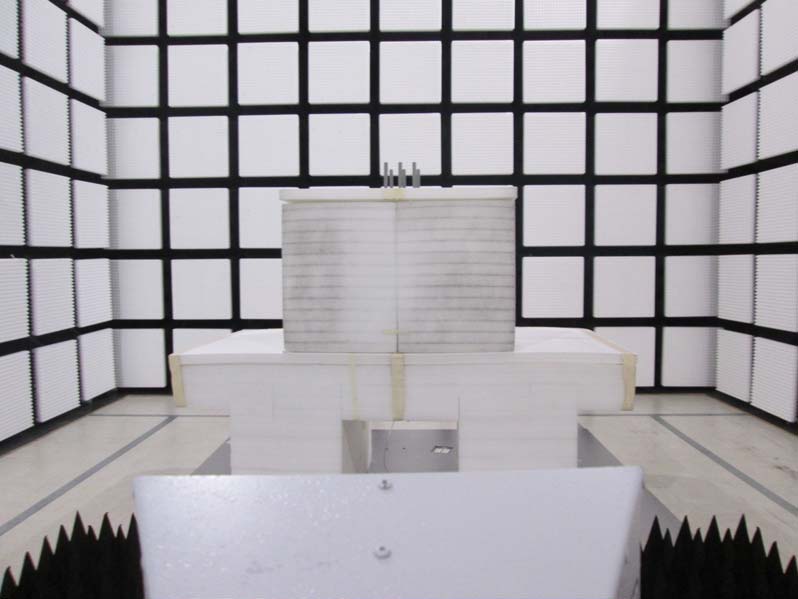

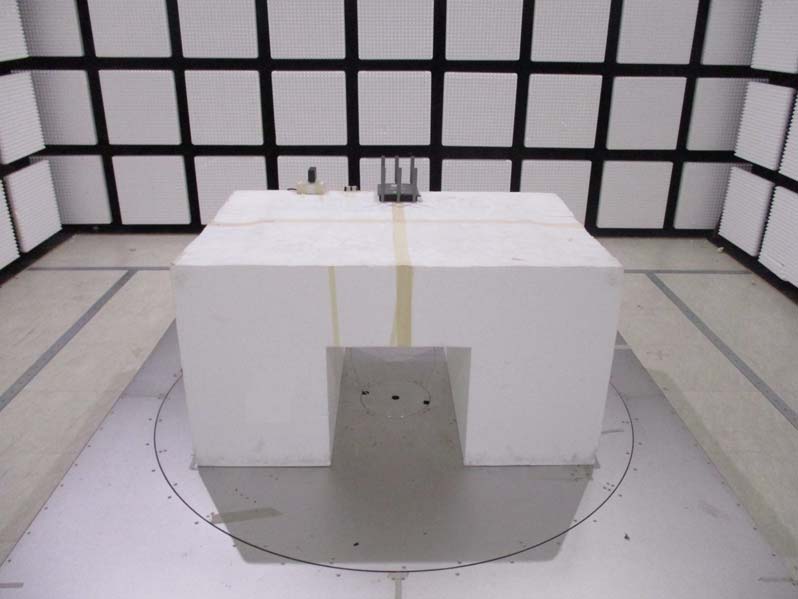

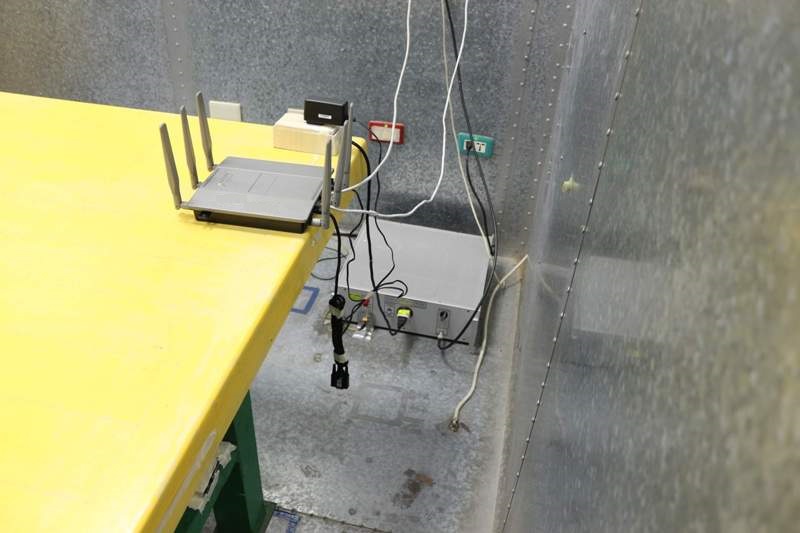

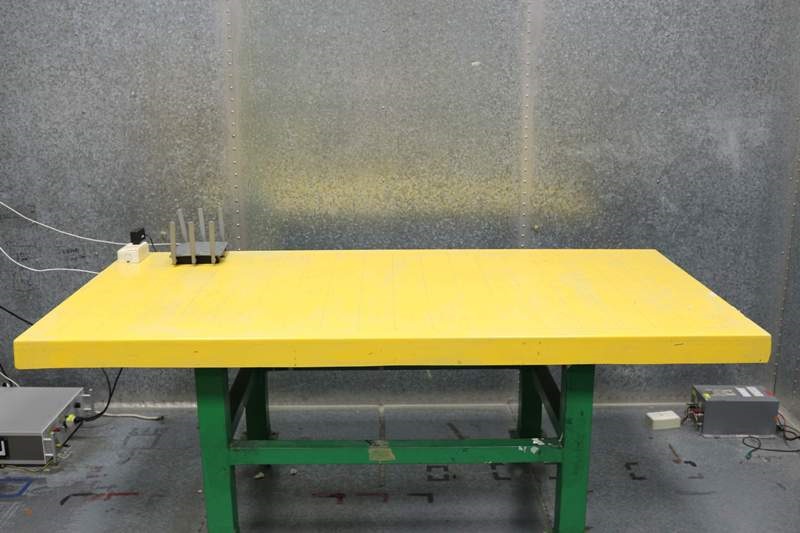

| Test setup photo_DTS | Test Setup Photos | 2016-03-08 | PDF 356.9 KB |
| Test setup photo_NII | Test Setup Photos | 2016-03-08 | PDF 445.8 KB |
| test setup photo | Test Setup Photos | 2013-07-30 | PDF 346.4 KB |
| Test report_DTS | Test Report | 2016-03-08 | PDF 567.9 KB |
| Test report_NII | Test Report | 2016-03-08 | PDF 2.2 MB |
| Test Report | Test Report | 2013-07-30 | PDF 2.4 MB |
| Test report | Test Report | 2013-07-30 | PDF 1.4 MB |
| C2PC Letter | Cover Letter(s) | 2016-03-08 | PDF 22.6 KB |
| Confidential Letter | Cover Letter(s) | 2016-03-08 | PDF 22.3 KB |
| DoC Letter | Cover Letter(s) | 2016-03-08 | PDF 18.9 KB |
| POA | Cover Letter(s) | 2016-03-08 | PDF 19.7 KB |
| Co-location Report | Cover Letter(s) | 2013-07-30 | PDF 103.8 KB |
| DoC Letter | Cover Letter(s) | 2013-07-30 | PDF 29.5 KB |
| confidentiality | Cover Letter(s) | 2013-07-30 | PDF 35.9 KB |
| declaration of authorization | Cover Letter(s) | 2013-07-30 | PDF 31.2 KB |
| MPE | RF Exposure Info | 2016-03-08 | PDF 361.2 KB |
| RF exposure info | RF Exposure Info | 2013-07-30 | PDF 90.4 KB |
| Operational Description Metadata only | Operational Description | PDF 34.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 92.2 KB | |
| Software Security Requirements Metadata only | Operational Description | PDF 92.2 KB |
Application Information
| Application ID | yN8q5wJk4cGg7oh6kK8Oew== |
|---|---|
| Final Action Date | 2016-03-08 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0007371172 |
| Model | AP2695A1 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Responsible Party | Brett Adair, General Counsel, brett.adair@dlink.com , 714-885-6282 |
| Agent | Leo Leo Leo, Sporton International Inc., leohuang@sporton.com.tw , 886-3-656-9065 |
| Technical Contact | Sharon Jiang, Sporton International Inc., sharonjiang@sporton.com.tw , 886-3-656-9065 |
| Non-Technical Contact | Sharon Jiang, Sporton International Inc., sharonjiang@sporton.com.tw , 886-3-656-9065 |
| Test Firm | Leo Huang, SPORTON International Inc., leohuang@sporton.com.tw , 886-3-6569065 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Change: Upgrading 5 GHz Band 1 and Band 4 to FCC New Rules. This device has 20/40 MHz bandwidth modes. Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| yN8q5wJk4cGg7oh6kK8Oew== | 2016-03-08 | Class II permissive change or modification of presently authorized equipment |
| oUa68Z+g64jDBdFUFo6Jsg== | 2016-03-08 | Class II permissive change or modification of presently authorized equipment |
| ybI3PewPTxBj9YGNHOi7GQ== | 2013-07-30 | Original Equipment |
| /Psotvj1gx5Dxye3VHdDEg== | 2013-07-30 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application yN8q5wJk4cGg7oh6kK8Oew==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 03/08/2016 Application Dated: 03/07/2016 |
| D-Link Corporation |
| 14420 Myford Road |
| Suite 100 |
| Irvine, CA 92606 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.95 |
| Class II Change: Upgrading 5 GHz Band 1 and Band 4 to FCC New Rules. This device has 20/40 MHz bandwidth modes. Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application yN8q5wJk4cGg7oh6kK8Oew==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
D-Link Corporation 14420 Myford Road Suite 100 Irvine, CA 92606 United States |
Date of Grant: 03/08/2016 Application Dated: 03/07/2016 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.95 |
| Class II Change: Upgrading 5 GHz Band 1 and Band 4 to FCC New Rules. This device has 20/40 MHz bandwidth modes. Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Edisonstraat 12a Zevenaar, NL-6902 PK Netherlands |
Date of Grant: 07/30/2013 Application Dated: 07/30/2013 |
| D Link Corporation |
| 17595 Mt. Herrmann |
| Fountain Valley, CA 92708 |
| Attention: Michael Boschma , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.048 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz. Operations in 5150-5250 MHz band is for indoor use only. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application ybI3PewPTxBj9YGNHOi7GQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
D Link Corporation 17595 Mt. Herrmann Fountain Valley, CA 92708 United States |
Date of Grant: 07/30/2013 Application Dated: 07/30/2013 |
| Attention: Michael Boschma , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.048 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz. Operations in 5150-5250 MHz band is for indoor use only. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 03/08/2016 Application Dated: 03/07/2016 |
| D-Link Corporation |
| 14420 Myford Road |
| Suite 100 |
| Irvine, CA 92606 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.659 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.741 |
| Class II Change: Upgrading 5 GHz Band 1 and Band 4 to FCC New Rules. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz and 5775 MHz. Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application oUa68Z+g64jDBdFUFo6Jsg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
D-Link Corporation 14420 Myford Road Suite 100 Irvine, CA 92606 United States |
Date of Grant: 03/08/2016 Application Dated: 03/07/2016 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.659 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.741 |
| Class II Change: Upgrading 5 GHz Band 1 and Band 4 to FCC New Rules. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz and 5775 MHz. Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Edisonstraat 12a Zevenaar, NL-6902 PK Netherlands |
Date of Grant: 07/30/2013 Application Dated: 07/30/2013 |
| D Link Corporation |
| 17595 Mt. Herrmann |
| Fountain Valley, CA 92708 |
| Attention: Michael Boschma , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D Link Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.95 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 1.0 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5775 MHz. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application /Psotvj1gx5Dxye3VHdDEg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
D Link Corporation 17595 Mt. Herrmann Fountain Valley, CA 92708 United States |
Date of Grant: 07/30/2013 Application Dated: 07/30/2013 |
| Attention: Michael Boschma , Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2AP2695A1 |
| Name of Grantee: | D Link Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | AirPremier AC Simultaneous Dual Band PoE Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.95 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 1.0 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5775 MHz. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
