DBT900APA1 Bluetooth Access Point Block... - FCC ID KA2DBT900APA1
FCC ID KA2DBT900APA1

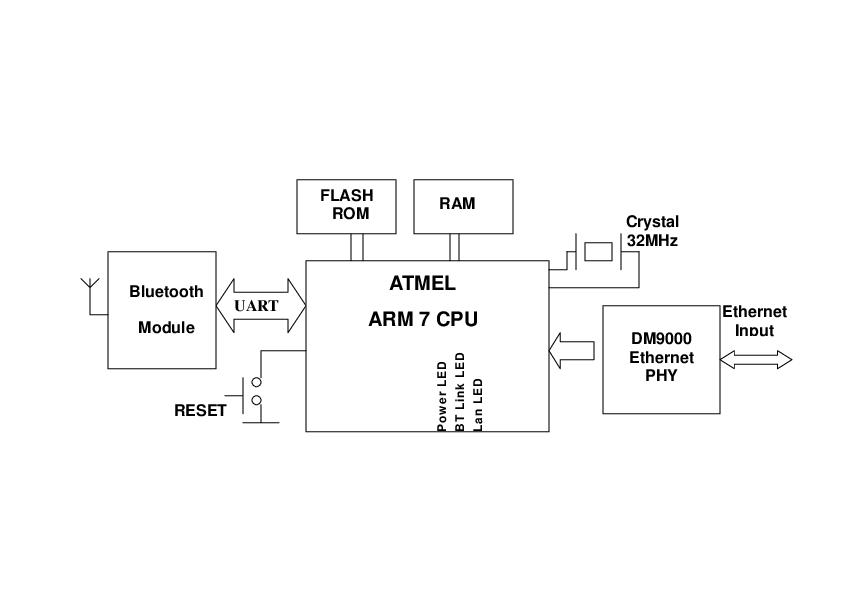

Block Diagram
Bluetooth Access Point
Document preview loads when visible.
Document Details
| FCC ID | KA2DBT900APA1 |
|---|---|
| Document ID | 366047 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | D-Link Corporation |
| Equipment Class | Bluetooth Access Point |
| Product Code | DBT900APA1 |
| Application ID | Q4XmBM/Nu6DaI6q8KK0Gzw== |
| Application Purpose | Original Equipment |
| Application Date | 2003-10-20 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0007371172 |
| Test Firm | SGS Taiwan Ltd. |
| Certified By | Robert Chang RF supervisor |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-10-20 |
| Available | 2003-10-20 |
| Created | 2003-10-09 |
| Modified | 2003-10-09 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 24530 |
| File SHA-256 | 5ce32cfd015f6a9aa082cd57c8d21f965224fe4658742d311ae727cb52d58ee2 |
| PDF Metadata Author | abc |
| PDF Metadata Producer | Acrobat Distiller 5.0.5 (Windows) abc |
| FCC.gov Sources | FCC.gov 366047 |
