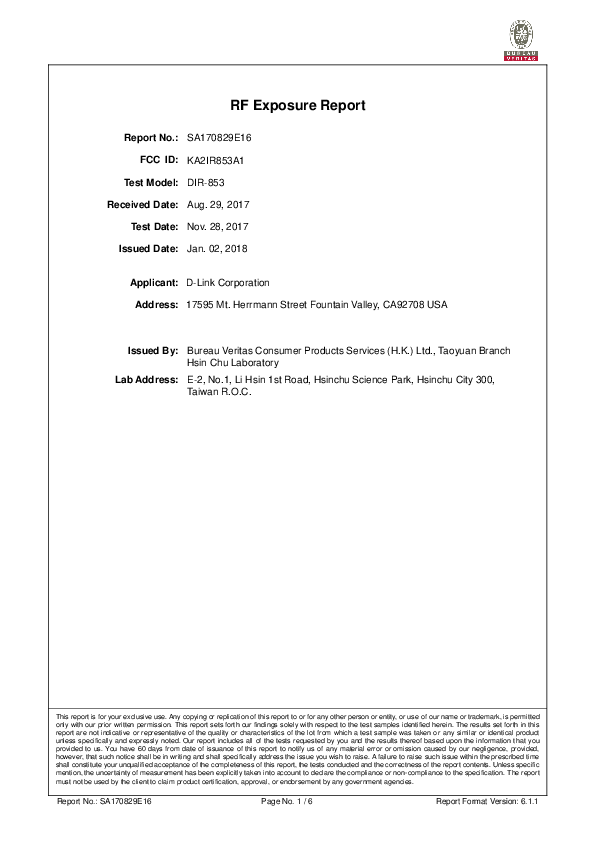

RF Exposure Report
Report No.: SA170829E16
FCC ID: KA2IR853A1
Test Model: DIR-853
Received Date: Aug. 29, 2017
Test Date: Nov. 28, 2017
Issued Date: Jan. 02, 2018
Applicant: D-Link Corporation
Address: 17595 Mt. Herrmann Street Fountain Valley, CA92708 USA
Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch
Hsin Chu Laboratory
Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300,
Taiwan R.O.C.
This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted
only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this
report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product
unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you
provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided,
however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time
shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific
mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report
must not be used by the client to claim product certification, approval, or endorsement by any government agencies.
Report No.: SA170829E16
Page No. 1 / 6
Report Format Version: 6.1.1
Table of Contents
Release Control Record .................................................................................................................................. 3
Certificate of Conformity ...................................................................................................................... 4
RF Exposure .......................................................................................................................................... 5
2.1
2.2
2.3
2.4
2.5
Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5
MPE Calculation Formula ................................................................................................................... 5
Classification ....................................................................................................................................... 5
Antenna Gain ...................................................................................................................................... 6
Calculation Result ............................................................................................................................... 6
Report No.: SA170829E16
Page No. 2 / 6
Report Format Version: 6.1.1
Release Control Record
Issue No.
Description
Date Issued
SA170829E16
Original release.
Jan. 02, 2018
Report No.: SA170829E16
Page No. 3 / 6
Report Format Version: 6.1.1
1
Certificate of Conformity
Product: AC1300 MU-MIMO Wi-Fi Gigabit Router
Brand: D-Link
Test Model: DIR-853
Sample Status: ENGINEERING SAMPLE
Applicant: D-Link Corporation
Test Date: Nov. 28, 2017
Standards: FCC Part 2 (Section 2.1091)
KDB 447498 D01 General RF Exposure Guidance v06
IEEE C95.1-1992
The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd.,
Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data
evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts
of the measurements of the sample’s EMC characteristics under the conditions specified in this report.
Prepared by :
Date:
Jan. 02, 2018
Date:
Jan. 02, 2018
Cindy Hsin / Specialist
Approved by :
May Chen / Manager
Report No.: SA170829E16
Page No. 4 / 6
Report Format Version: 6.1.1
2
RF Exposure
2.1
Limits for Maximum Permissible Exposure (MPE)
Frequency Range
(MHz)
Electric Field
Strength (V/m)
Magnetic Field
Strength (A/m)
Power Density
(mW/cm )
Average Time
(minutes)
Limits For General Population / Uncontrolled Exposure
0.3-1.34
614
1.63
(100)*
1.34-30
824/f
2.19/f
(180/f )*
30
30-300
27.5
0.073
0.2
30
300-1500
…
…
f/1500
30
1500-100,000
…
…
1.0
30
30
f = Frequency in MHz ; *Plane-wave equivalent power density
2.2
MPE Calculation Formula
Pd = (Pout*G) / (4*pi*r )
where
Pd = power density in mW/cm
Pout = output power to antenna in mW
G = gain of antenna in linear scale
Pi = 3.1416
R = distance between observation point and center of the radiator in cm
2.3
Classification
The antenna of this product, under normal use condition, is at least 29cm away from the body of the user.
So, this device is classified as Mobile Device.
Report No.: SA170829E16
Page No. 5 / 6
Report Format Version: 6.1.1
2.4
Antenna Gain
2.4GHz
Antenna No.
Antenna Net Gain
(dBi)
Frequency rang
(GHz)
Antenna type
Connector type
2.4 ~ 2.4835
Dipole
i-pex(MHF)
2.4 ~ 2.4835
Dipole
i-pex(MHF)
5GHz
2.5
Antenna No.
Antenna Net Gain
(dBi)
Frequency rang
(GHz)
Antenna type
Connector type
5.15 ~ 5.85
Dipole
i-pex(MHF)
5.15 ~ 5.85
Dipole
i-pex(MHF)
Calculation Result
Frequency
(MHz)
Max Power
(mW)
Antenna Gain
(dBi)
Distance
(cm)
Power Density
(mW/cm )
Limit
(mW/cm )
2412-2462
876.611
8.01
29
0.52457
5180-5240
622.476
8.01
29
0.37249
5745-5825
232.946
8.01
29
0.13940
NOTE:
2.4GHz: Directional gain = 5dBi + 10log(2) = 8.01dBi
5GHz: Directional gain = 5dBi + 10log(2) = 8.01dBi
Conclusion:
The formula of calculated the MPE is:
CPD1 / LPD1 + CPD2 / LPD2 + ……etc. < 1
CPD = Calculation power density
LPD = Limit of power density
WLAN 2.4GHz + WLAN 5GHz = 0.52457 / 1 + 0.37249 / 1 = 0.89706
Therefore the maximum calculations of above situations are less than the “1” limit.
--- END ---
