FCC ID KA2IR850LB1
Wireless AC1200 Dual Band Gigabit Cloud Router
by D-Link Corporation
Grantee Code: KA2 Product Code: IR850LB1
Latest application date: 2016-03-03
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-03-03 |
| 5180-5240 MHz | Original Equipment | 2014-08-07 |
| 2412-2462 MHz | Original Equipment | 2014-08-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2014-08-07 | PDF 3.9 MB |
| Internal Photos | Internal Photos | 2014-08-07 | PDF 998.1 KB |
| External Photos | External Photos | 2016-03-03 | PDF 345.5 KB |
| External Photos | External Photos | 2014-08-07 | PDF 334.4 KB |
| FCC ID Label and Location | ID Label/Location Info | 2014-08-07 | PDF 99.6 KB |

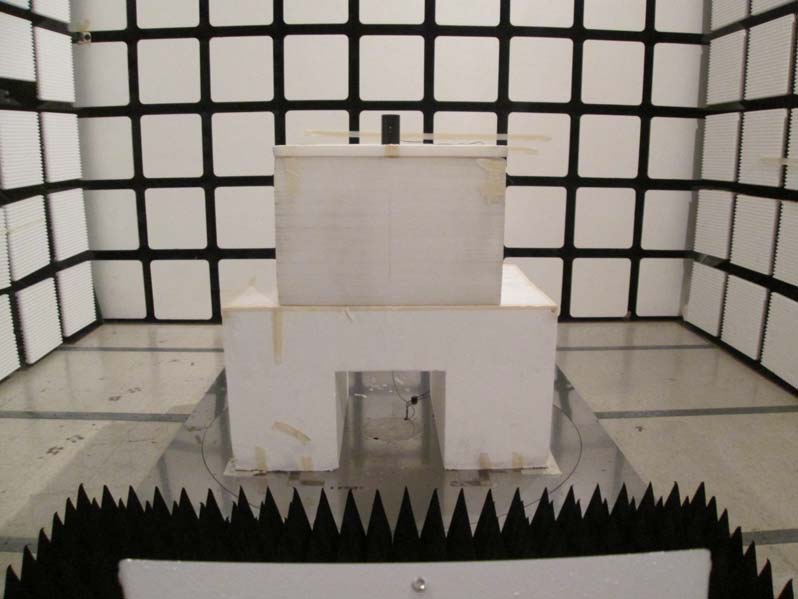

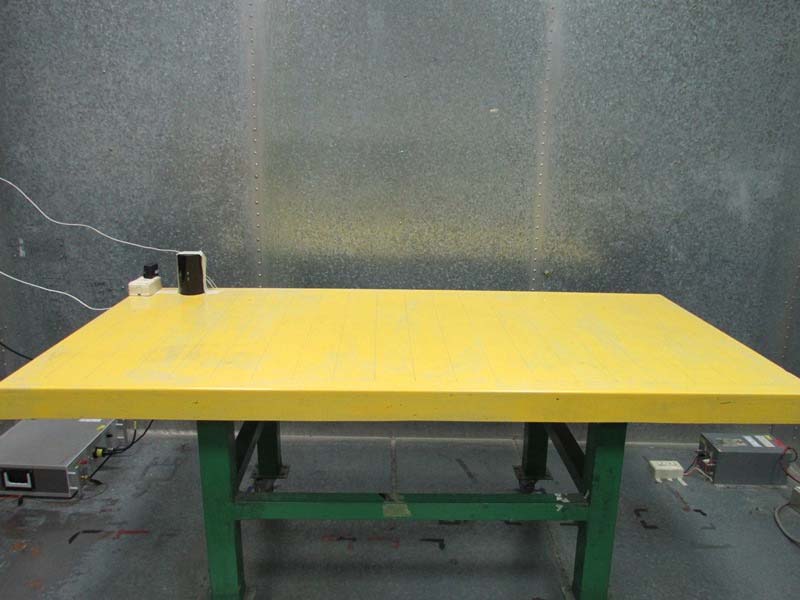

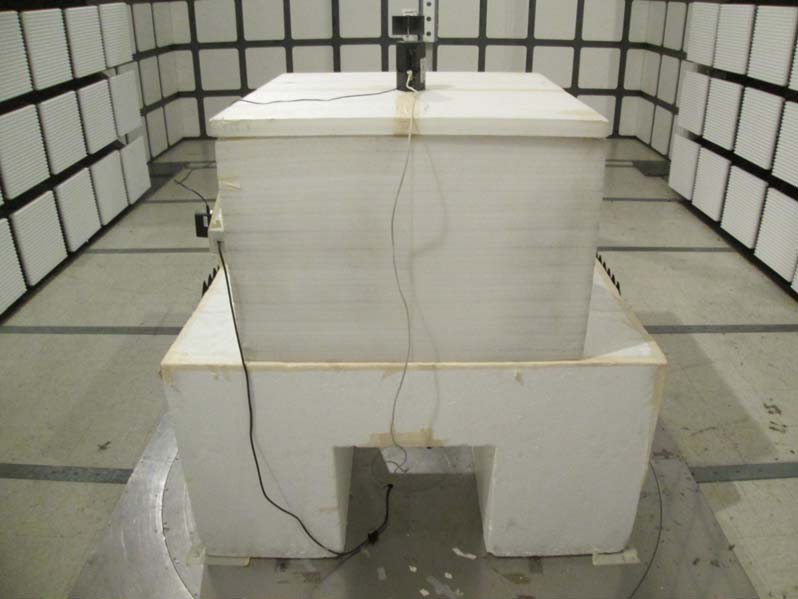

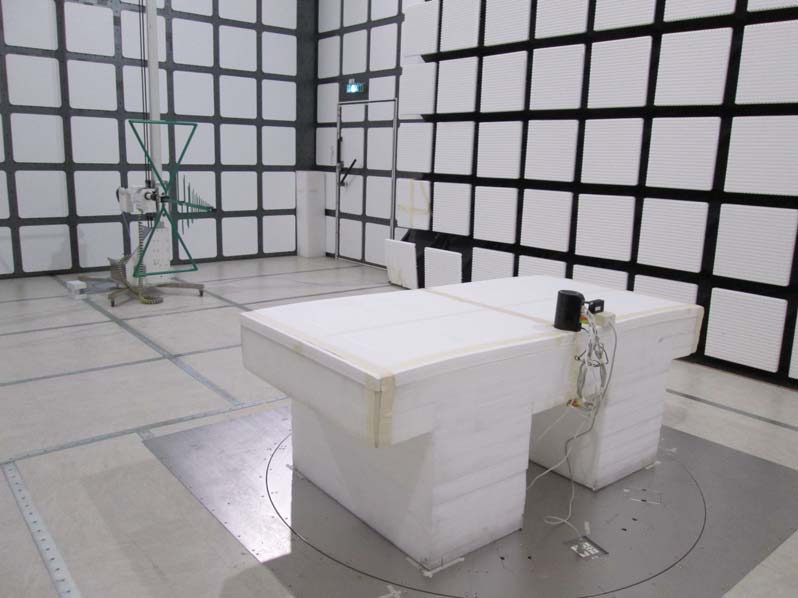

| Test Setup Photos | Test Setup Photos | 2016-03-03 | PDF 369.8 KB |
| Test Setup Photos | Test Setup Photos | 2014-08-07 | PDF 359.1 KB |
| Test Report | Test Report | 2016-03-03 | PDF 2.2 MB |
| Co-Location Report | Test Report | 2014-08-07 | PDF 113.6 KB |
| Test Report for DTS | Test Report | 2014-08-07 | PDF 2 MB |
| Test Report for NII | Test Report | 2014-08-07 | PDF 1 MB |
| Class II Permissive Change Letter | Cover Letter(s) | 2016-03-03 | PDF 21.8 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-03 | PDF 22.2 KB |
| POA | Cover Letter(s) | 2016-03-03 | PDF 19.7 KB |
| POA Grantee Contact Person | Cover Letter(s) | 2016-03-03 | PDF 116.5 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2014-08-07 | PDF 24.2 KB |
| POA | Cover Letter(s) | 2014-08-07 | PDF 21.1 KB |
| POA_D-Link | Cover Letter(s) | 2014-08-07 | PDF 186.2 KB |
| RF Exposure | RF Exposure Info | 2016-03-03 | PDF 264.1 KB |
| MPE Report | RF Exposure Info | 2014-08-07 | PDF 102.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 147 KB | |
| Schematics Metadata only | Schematics | PDF 517 KB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 34.3 KB | |
| Operational Description-1 Metadata only | Operational Description | PDF 142 KB | |
| Operational Description-2 Metadata only | Operational Description | PDF 29.4 KB |
Application Information
| Application ID | OQXo7lrnHbwm/FF7z1TNyg== |
|---|---|
| Final Action Date | 2016-03-03 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0007371172 |
| Model | IR850LB1 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless AC1200 Dual Band Gigabit Cloud Router |
| Responsible Party | Brett Adair, General Counsel, brett.adair@dlink.com  , 714-885-6282 |
| Test Firm | Sharon Jiang, SPORTON International Inc., sharonjiang@sporton.com.tw  , 886-3-656-9065 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is the maximum combined conducted output power. The device can be self-colocated with the composite DTS portion. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. This device has 20, 40, and 80MHz BW modes. Class II Permissive Change: This class II Permissive Change is to update the U-NII-3 band to the new rules. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| OQXo7lrnHbwm/FF7z1TNyg== | 2016-03-03 | Class II permissive change or modification of presently authorized equipment |
| eAF/Ri517L7e5UGPZ70A4Q== | 2014-08-07 | Original Equipment |
| 7ee7BsDG5k12R4zommZR7A== | 2014-08-07 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.4898 | 15C | CC, MO |
| 2422-2452 MHz | 0.0851 | 15C | CC, MO |
| 5180-5240 MHz | 0.4207 | 15E | 39, CC, MO |
| 5180-5240 MHz | 0.4207 | 15E | 38, CC, MO |
| 5190-5230 MHz | 0.2884 | 15E | 39, CC, MO |
| 5210 MHz | 0.0581 | 15E | 39, CC, MO |
| 5745-5825 MHz | 0.228 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.3963 | 15C | CC, MO |
| 5755-5795 MHz | 0.3873 | 15C | CC, MO |
| 5775 MHz | 0.0718 | 15C | CC, MO |
Grants
TCB Grant - Application OQXo7lrnHbwm/FF7z1TNyg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/03/2016 Application Dated: 03/02/2016 |
| D-Link Corporation |
| 14420 Myford Road |
| Suite 100 |
| Irvine, CA 92606 |
| Attention: Brett Adair , General Counsel |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | KA2IR850LB1 |
| Name of Grantee: | D-Link Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless AC1200 Dual Band Gigabit Cloud Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.4207 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.228 |
| Output Power listed is the maximum combined conducted output power. The device can be self-colocated with the composite DTS portion. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. This device has 20, 40, and 80MHz BW modes. Class II Permissive Change: This class II Permissive Change is to update the U-NII-3 band to the new rules. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
