WSS04320 RF Transmitter Teardown Internal... - FCC ID KG7WSS04320

FCC ID KG7WSS04320

Int Photo PCB Top

RF Transmitter

by Peet Bros Company Inc

Int Photo PCB Top

Document Details

FCC IDKG7WSS04320
Document ID49072
Document TypeInternal Photos

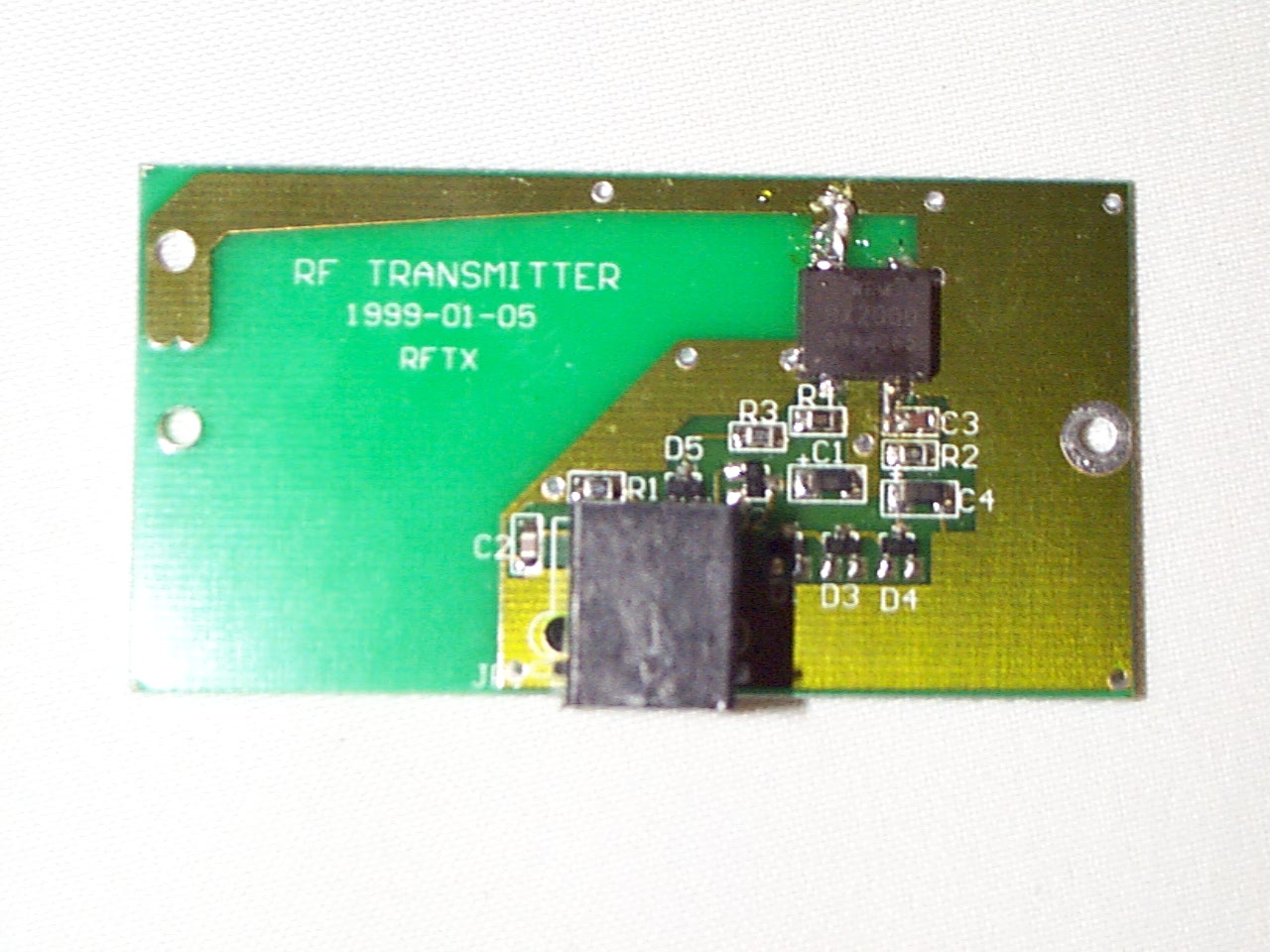

DescriptionInt Photo PCB Top
ApplicantPeet Bros Company Inc
Equipment ClassRF Transmitter
Product CodeWSS04320
Application IDdP7j2NdpW/04hMVVaAqA7Q==
Application PurposeOriginal Equipment
Application Date1999-07-22
Frequency Range916.6 MHz
FRN9999999999
Test FirmWashington Laboratories, Ltd.
Certified ByGregory M. Snyder Chief EMC Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-07-20
Available1999-07-22
Pages0
File TypeJPEG Image
File Size184628
File SHA-256c495337725bfdca0250471c0055b2b6749bbc0f9c285496cf6d4d4ad0540bdb3
FCC.gov SourcesFCC.gov 49072
