37AS Vehicle Immobilizer System Label Diagram - FCC ID KHH37AS
FCC ID KHH37AS

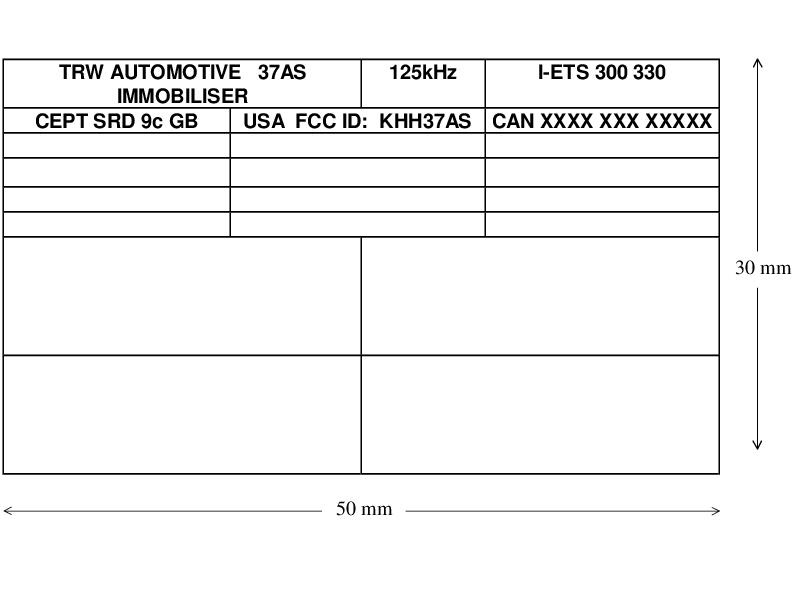

Label
Vehicle Immobilizer System
Document preview loads when visible.
Document Details
| FCC ID | KHH37AS |
|---|---|
| Document ID | 105698 |
| Document Type | ID Label/Location Info |
| Description | Label |
| Applicant | TRW Automotive Electronics |
| Equipment Class | Vehicle Immobilizer System |
| Product Code | 37AS |
| Application ID | QbjxIaRi8wmch8gyXVdDzA== |
| Application Purpose | Original Equipment |
| Application Date | 2000-06-20 |
| Frequency Range | 0.125 MHz |
| FRN | 0005835194 |
| Test Firm | Washington Laboratories, Ltd. |
| Certified By | William H. Graff Vice President of Engineering |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2000-06-20 |
| Available | 2000-06-20 |
| Created | 2000-06-20 |
| Modified | 2000-06-20 |
| Pages | 2 |
| File Type | Microsoft Word |
| File Size | 22529 |
| File SHA-256 | e052af3e0a1996ed6bcf1fed1f8009cab71e81f7bc910487bab1b2c0b71e4cb2 |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 105698 |
