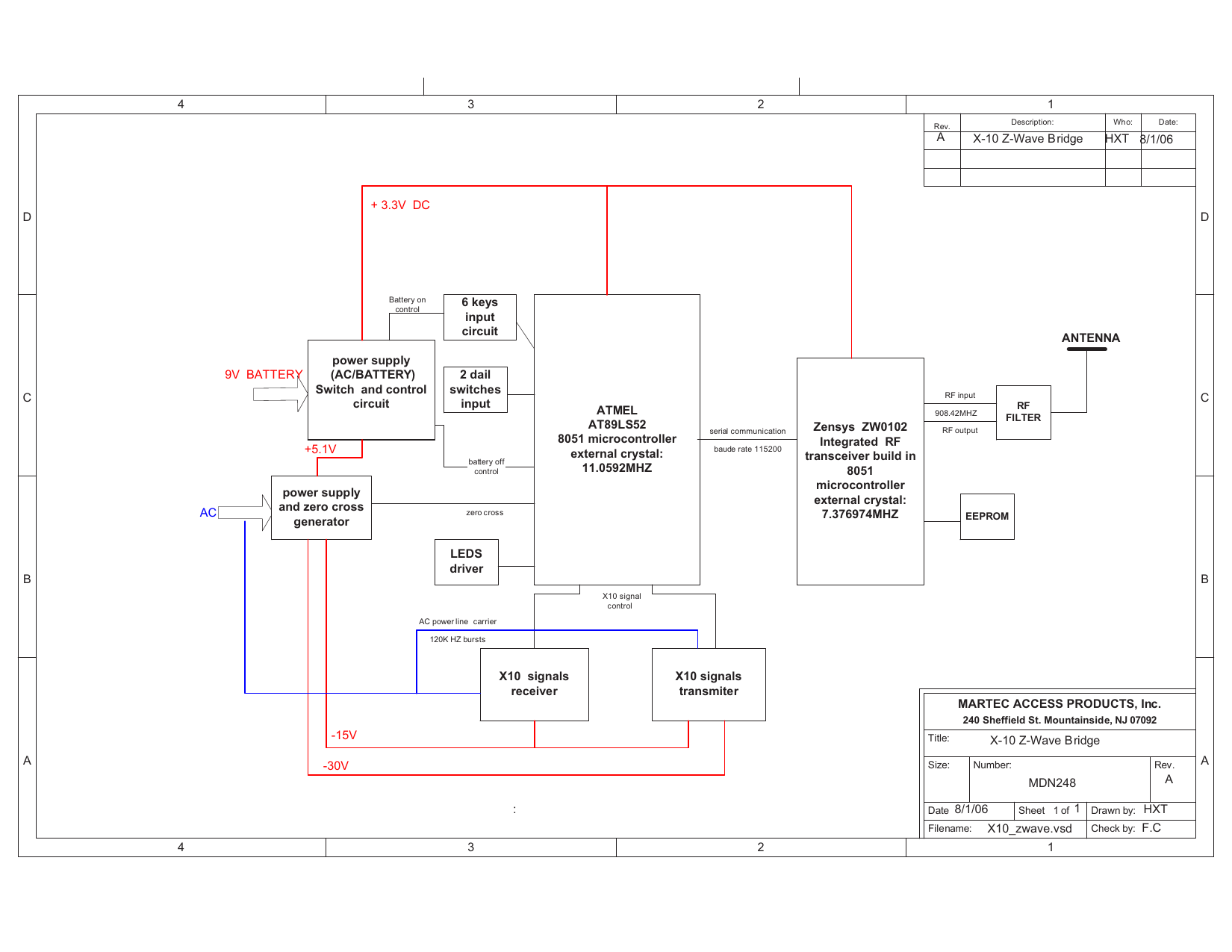

0001115A Z-Wave X-10 Bridge Block Diagram - FCC ID KJ8-0001115A

FCC ID KJ8-0001115A

Block Diagram

Z-Wave X-10 Bridge

by Wayne Dalton Corporation

Document preview loads when visible.

Document Details

FCC IDKJ8-0001115A
Document ID767785
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleVisio-x10_zwave.vsd
ApplicantWayne Dalton Corporation
Equipment ClassZ-Wave X-10 Bridge
Product Code0001115A
Application IDmovB/9mxe+IN8lhm2MHNXA==
Application PurposeOriginal Equipment
Application Date2007-03-14
Frequency Range908.42 MHz
FRN0005793567
Test FirmUniversity of Michigan
Certified ByDr. Valdis V. Liepa Research Scientist
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2007-03-13
Available2007-03-14
Created2006-10-27
Modified2007-01-15
Pages1
File TypeAdobe Acrobat PDF
File Size25515
File SHA-256e8f4ef855386012cb86d03e24a87f8816752209382ff6df0c23ba97b44a87c8a
PDF Metadata Authorhtang
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 6.0.1 (Windows)
FCC.gov SourcesFCC.gov 767785
