6RX Remote Control Receiver Block Diagram - FCC ID KNF6RX
FCC ID KNF6RX

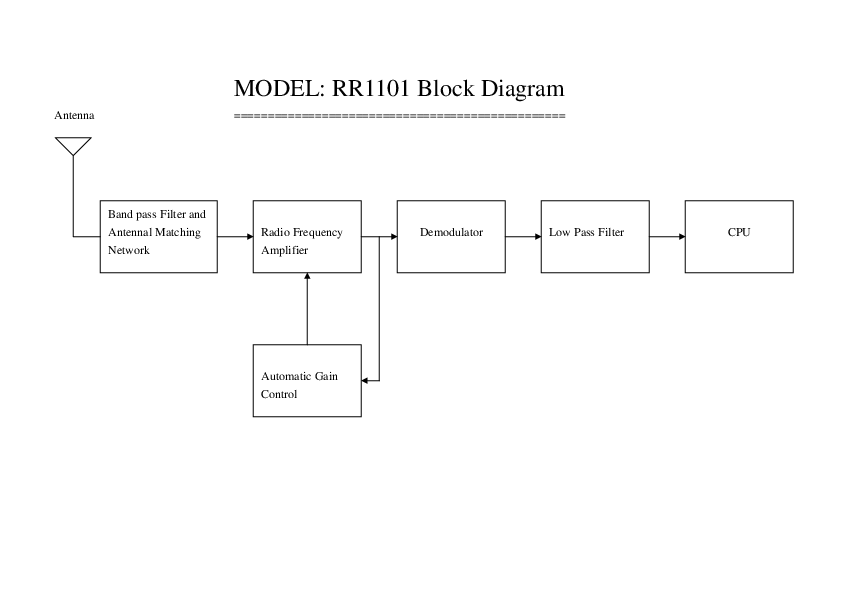

block diagram
Remote Control Receiver
by SPAL USA
Document preview loads when visible.
Document Details
| FCC ID | KNF6RX |
|---|---|
| Document ID | 641274 |
| Document Type | Block Diagram |
| Description | block diagram |
| Applicant | SPAL USA |
| Equipment Class | Remote Control Receiver |
| Product Code | 6RX |
| Application ID | ciNJmQF3L7FyA02VgOaDeA== |
| Application Purpose | Original Equipment |
| Application Date | 2006-03-27 |
| Frequency Range | 433.94 MHz |
| FRN | 0007127566 |
| Test Firm | Spectrum Research & Testing Laboratory, Inc. |
| Certified By | Bob Folkested Engineering Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-03-28 |
| Available | 2006-03-27 |
| Created | 2005-10-20 |
| Modified | 2005-10-20 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 7012 |
| File SHA-256 | a24be08bd2fe4f6bdcda162bb8d6fefb5eb783f83d972b92c5bdf73e561866e0 |
| PDF Metadata Producer | Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 641274 |
