2713527MHZ Remote Control Toy Car Block... - FCC ID KNZ2713527MHZ

FCC ID KNZ2713527MHZ

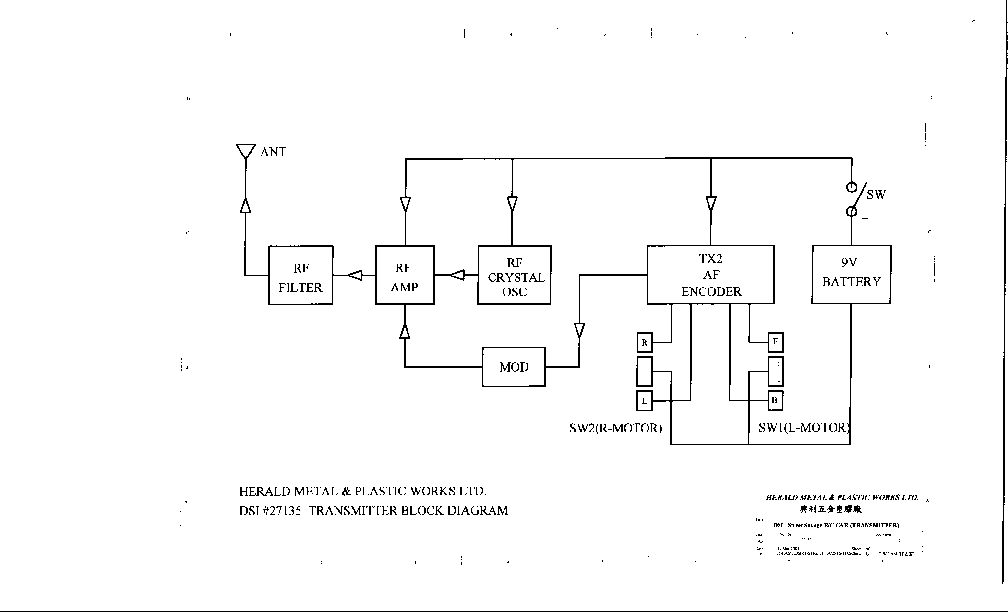

Block diagram

Remote Control Toy Car

by DSI (HK) Ltd

Document preview loads when visible.

Document Details

FCC IDKNZ2713527MHZ
Document ID155591
Document TypeBlock Diagram
DescriptionBlock diagram
ApplicantDSI (HK) Ltd
Equipment ClassRemote Control Toy Car
Product Code2713527MHZ
Application ID8ZiX7Lv4lhZDfV6yPk+OeA==
Application PurposeOriginal Equipment
Application Date2001-06-20
Frequency Range27.145 MHz
FRN0006790653
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-06-20
Available2001-06-20
Created2001-05-18
Modified2001-05-18
Pages1
File TypeAdobe Acrobat PDF
File Size20203
File SHA-256eedd678c69b60ed6d7f7d88538a56222fdc159f34b92ecb8afa65ae32c8e6909
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 155591
