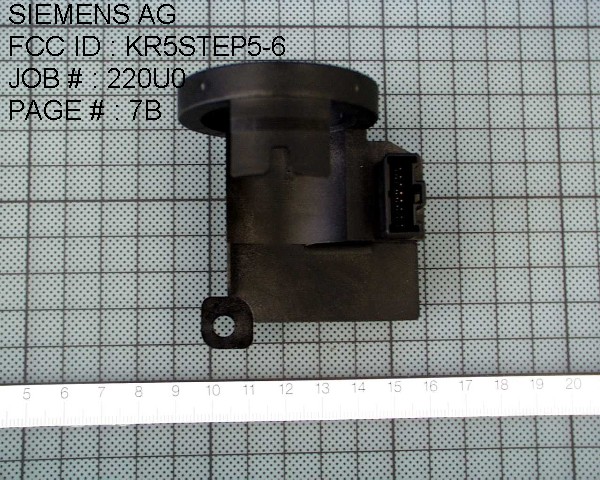

STEP56 Immobiliser System External Photos - FCC ID KR5STEP5-6

FCC ID KR5STEP5-6

rear

Immobiliser System

by Continental Automotive GmbH

rear

Document Details

FCC IDKR5STEP5-6
Document ID114456
Document TypeExternal Photos
Descriptionrear
ApplicantContinental Automotive GmbH
Equipment ClassImmobiliser System
Product CodeSTEP56
Application IDwMNLPyz6AUFUNEXsMR12tQ==
Application PurposeOriginal Equipment
Application Date2000-08-24
Frequency Range0.134 MHz
FRN0006721039
Test FirmTimco Engineering, Inc.
Certified ByDagmar Kolar
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-08-24
Available2000-08-24
Pages0
File TypeJPEG Image
File Size122957
File SHA-256cdc45bc8eecc6f93b4e419d6d31cca96e171d72421e08cfe82c2edce94376c93
FCC.gov SourcesFCC.gov 114456
