T70A VHF Transceiver Label Diagram - FCC ID KRET70A

FCC ID KRET70A

FCC ID label sample

VHF Transceiver

by RF Technology Pty Ltd

FCC ID label sample

Document Details

FCC IDKRET70A
Document ID107799
Document TypeID Label/Location Info

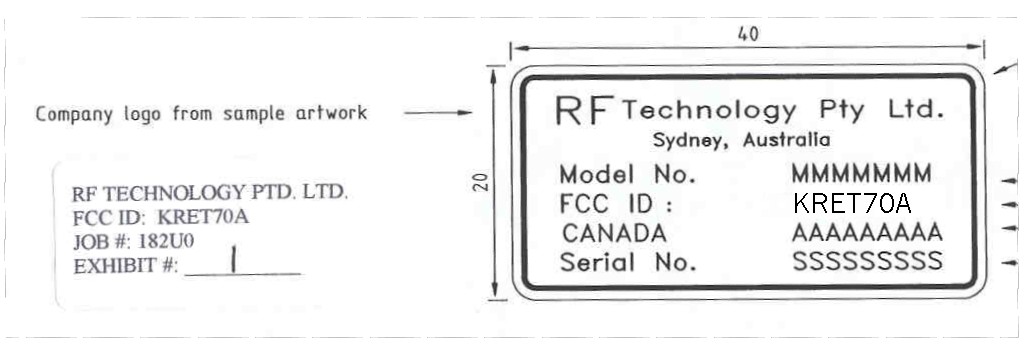

DescriptionFCC ID label sample
ApplicantRF Technology Pty Ltd
Equipment ClassVHF Transceiver
Product CodeT70A
Application IDrNQDIm5He6lJHzUsXgmjHg==
Application PurposeOriginal Equipment
Application Date2000-07-05
Frequency Range66-88 MHz
FRN0017736778
Certified ByRonald Tilley Managing Director
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-07-05
Available2000-07-05
Pages0
File TypeJPEG Image
File Size57010
File SHA-256efdde2e137286b2e402a4abdfd79d8971d7e273f35af40c35e773b55f72bfeba
FCC.gov SourcesFCC.gov 107799
