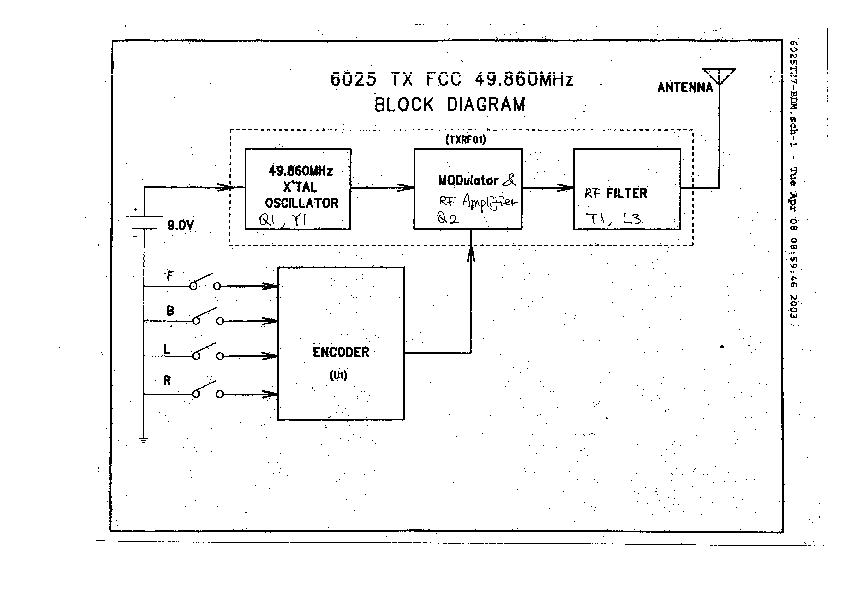

6025RC01TX RC Car Block Diagram - FCC ID KTU-6025-RC01-TX

FCC ID KTU-6025-RC01-TX

Block Diagram

RC Car

by Supertoys Industrial Co Ltd

Document preview loads when visible.

Document Details

FCC IDKTU-6025-RC01-TX
Document ID341393
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantSupertoys Industrial Co Ltd
Equipment ClassRC Car
Product Code6025RC01TX
Application IDkXXyQ6tXgLJ0bEvPBaEAbw==
Application PurposeOriginal Equipment
Application Date2003-07-19
Frequency Range49.86 MHz
FRN0017837923
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2003-07-19
Available2003-07-19
Created2003-07-10
Modified2003-07-10
Pages1
File TypeAdobe Acrobat PDF
File Size27549
File SHA-256f60f32328264a9b40ccd53d5938e033b47bd79659bd0d1e77c9653bbb6e33fcd
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 341393
