6004317T RC Boat Schematics - FCC ID KTU6004317T

FCC ID KTU6004317T

Circuit Diagram

RC Boat

by Supertoys Industrial Co Ltd

Document preview loads when visible.

Document Details

FCC IDKTU6004317T
Document ID304529
Document TypeSchematics

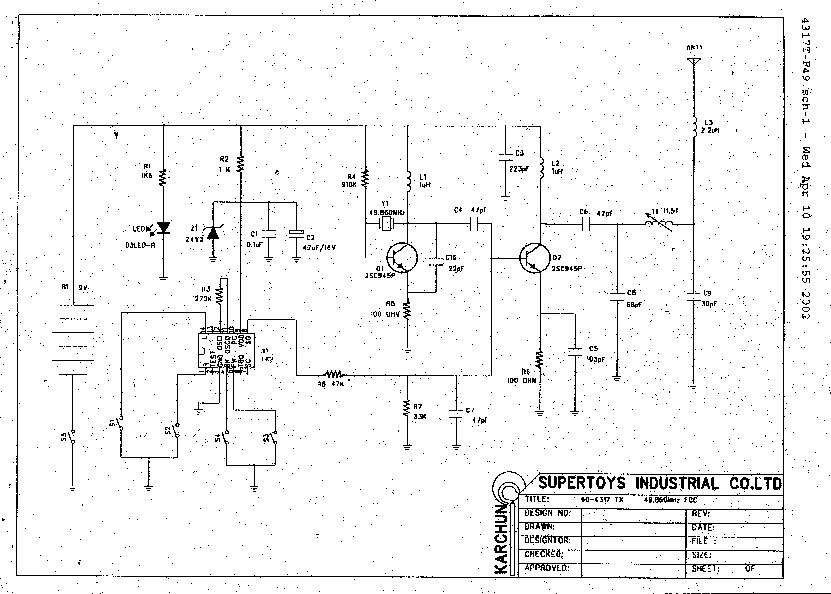

DescriptionCircuit Diagram
ApplicantSupertoys Industrial Co Ltd
Equipment ClassRC Boat
Product Code6004317T
Application IDe6+iZTlYy0IeKrzz5bUeLw==
Application PurposeOriginal Equipment
Application Date2003-02-22
Frequency Range49.86 MHz
FRN0017837923
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-02-22
Available2003-02-22
Created2002-05-16
Modified2002-05-16
Pages1
File TypeAdobe Acrobat PDF
File Size144134
File SHA-2564ceb293a2838dcf398a643a220f0f40a8c0ffc750dea0252048cdc2cb83c3010
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 304529
