871UHF RE429NT + UHF External Photos - FCC ID L3M871UHF

FCC ID L3M871UHF

Exterior bottom

RE429NT + UHF

by Swissphone Wireless AG

Document preview loads when visible.

Document Details

FCC IDL3M871UHF
Document ID351370
Document TypeExternal Photos

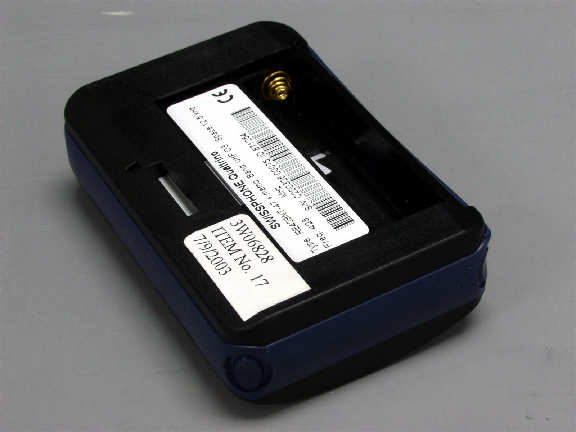

DescriptionExterior bottom
ApplicantSwissphone Wireless AG
Equipment ClassRE429NT + UHF
Product Code871UHF
Application ID9CnMo+xoXSAJZTPE8wS5BA==
Application PurposeOriginal Equipment
Application Date2003-08-26
Frequency Range423-473 MHz
FRN0022941033
Test FirmNemko Canada Inc.
Certified ByZdenek Mancal
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-08-27
Available2003-08-26
Created2003-08-18
Modified2003-08-18
Pages1
File TypeAdobe Acrobat PDF
File Size184732
File SHA-25620b8edda9bcce0bccf20d09801618e6fab63f6e98de477d96ccc071d193ca253
PDF Metadata ProducerAcrobat 5.0 Image Conversion Plug-in for Windows Acrobat 5.0 Image Conversion Plug-in for Windows
FCC.gov SourcesFCC.gov 351370
