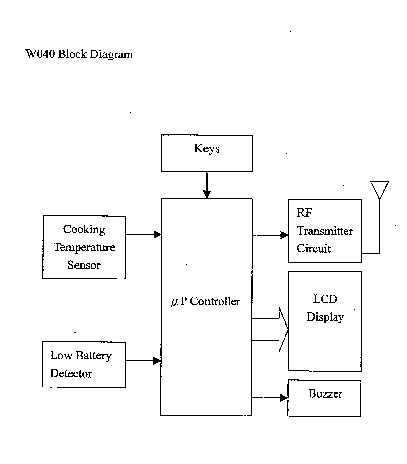

W040TX Wireless Cooking Thermometer Block Diagram - FCC ID L5CW040TX

FCC ID L5CW040TX

Block Diagram

Wireless Cooking Thermometer

by Ansen Electronics Co

Document preview loads when visible.

Document Details

FCC IDL5CW040TX
Document ID573618
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleScan1011, ¤K¤ë 22, 2005
ApplicantAnsen Electronics Co
Equipment ClassWireless Cooking Thermometer
Product CodeW040TX
Application ID5plD1pcimJRQH9SWF4WnPg==
Application PurposeOriginal Equipment
Application Date2005-08-22
Frequency Range434 MHz
FRN0006065171
Test FirmHong Kong Standards & Testing Cen.
Certified ByPatrick Wong Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-08-22
Available2005-08-22
Pages1
File TypeAdobe Acrobat PDF
File Size8530
File SHA-2567d06e15fbbf56795f0a7b21dbea57d25aec4f5947bf914dec4d3f618c2a47527
PDF Metadata AuthorHKSTCPreferred User
PDF Metadata ProducerPaperPort http://www.scansoft.com sspdflib 1.0 http://www.scansoft.com
FCC.gov SourcesFCC.gov 573618
