79124R RC Car Schematics - FCC ID L9G79124R
FCC ID L9G79124R

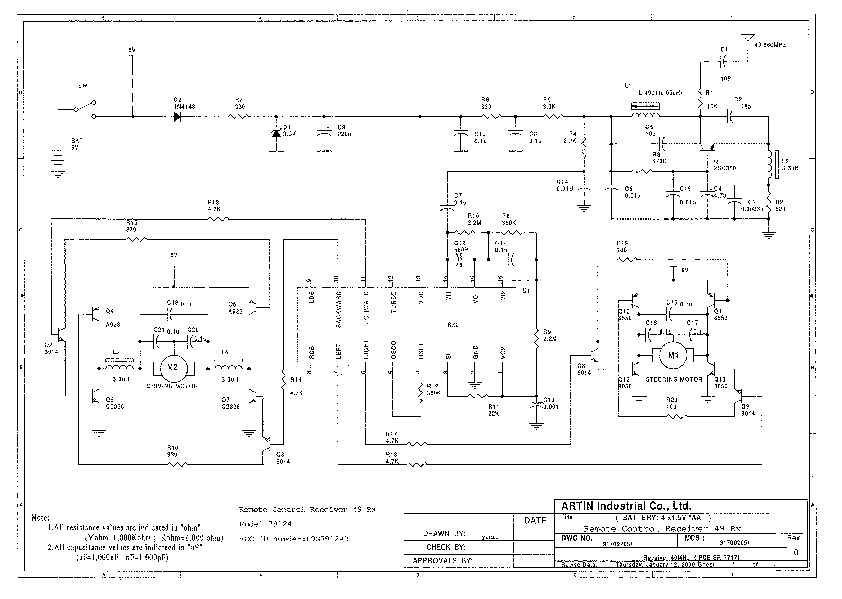

Circuit Diagram
RC Car
Document preview loads when visible.
Document Details
| FCC ID | L9G79124R |
|---|---|
| Document ID | 622732 |
| Document Type | Schematics |
| Description | Circuit Diagram |
| Applicant | Artin Industrial Co Ltd |
| Equipment Class | RC Car |
| Product Code | 79124R |
| Application ID | iy9Z8l9FR8umSxw0SZlJdg== |
| Application Purpose | Original Equipment |
| Application Date | 2006-01-25 |
| Frequency Range | 49.86 MHz |
| FRN | 0018034330 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2006-01-25 |
| Available | 2006-01-25 |
| Created | 2006-01-17 |
| Modified | 2006-01-17 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 77910 |
| File SHA-256 | 3e004dac01d3f618f080bbed40c64a3c538a18aeb64a8d627341eabaa558442a |
| FCC.gov Sources | FCC.gov 622732 |
