MG3000 900MHz 40 Channels Analog Modulation... - FCC ID LBBMG3000

FCC ID LBBMG3000

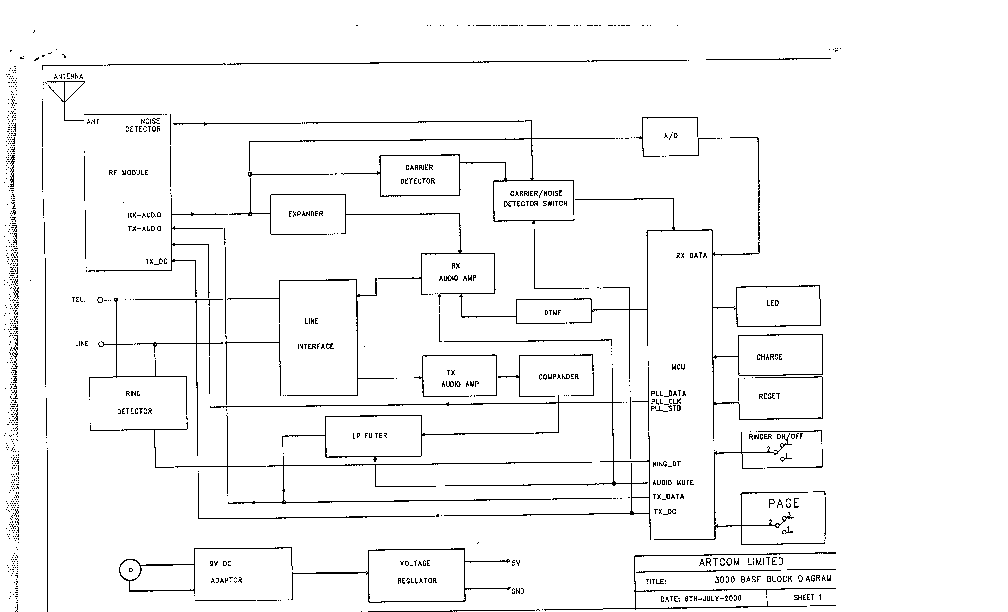

Block Diagram

900MHz 40 Channels Analog Modulation Basic Cordles

by Continental Conair Limited

Document preview loads when visible.

Document Details

FCC IDLBBMG3000
Document ID110287
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantContinental Conair Limited
Equipment Class900MHz 40 Channels Analog Modulation Basic Cordles
Product CodeMG3000
Application ID61u1GJliqWYCjWyGA4cEsg==
Application PurposeOriginal Equipment
Application Date2000-09-08
Frequency Range902.125-903.1 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilson Loke Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-07-26
Available2000-09-08
Created2000-07-20
Modified2000-07-24
Pages2
File TypeAdobe Acrobat PDF
File Size369017
File SHA-2564f3575edadde4d4d6f0fc72071c2fa2d1218892ebc07c46701baa12f06dc91b7
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 110287
