FCC ID LDK102107
Cisco Aironet 802.11ac Dual Band Access Points
by Cisco Systems Inc
Grantee Code: LDK Product Code: 102107
Latest application date: 2020-02-26
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2020-02-26 |
| 5180-5240 MHz | Original Equipment | 2017-04-25 |
| 2402-2480 MHz | Original Equipment | 2017-04-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Guide | Users Manual | 2017-04-25 | PDF 1.5 MB |

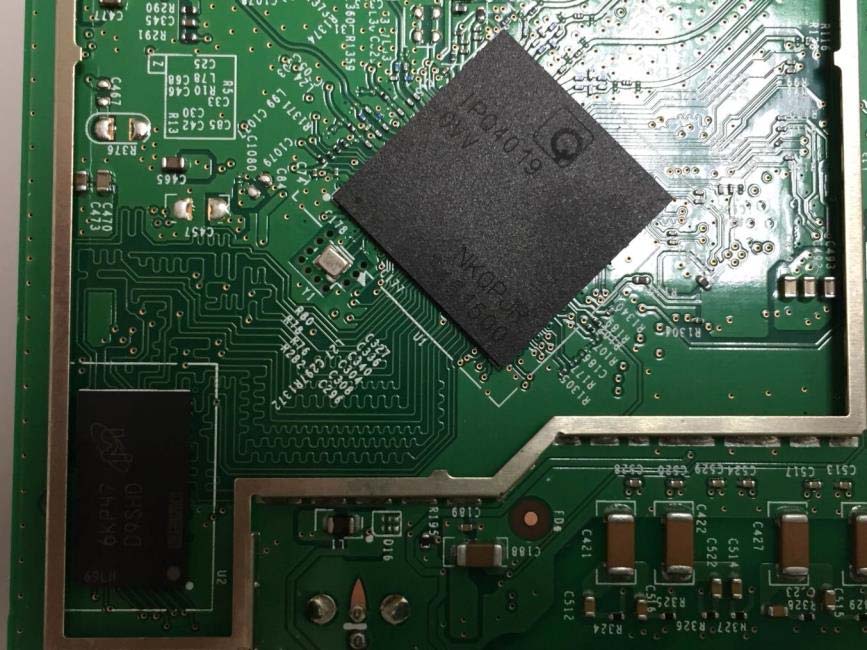

| Int Photos | Internal Photos | 2017-04-25 | PDF 493.3 KB |

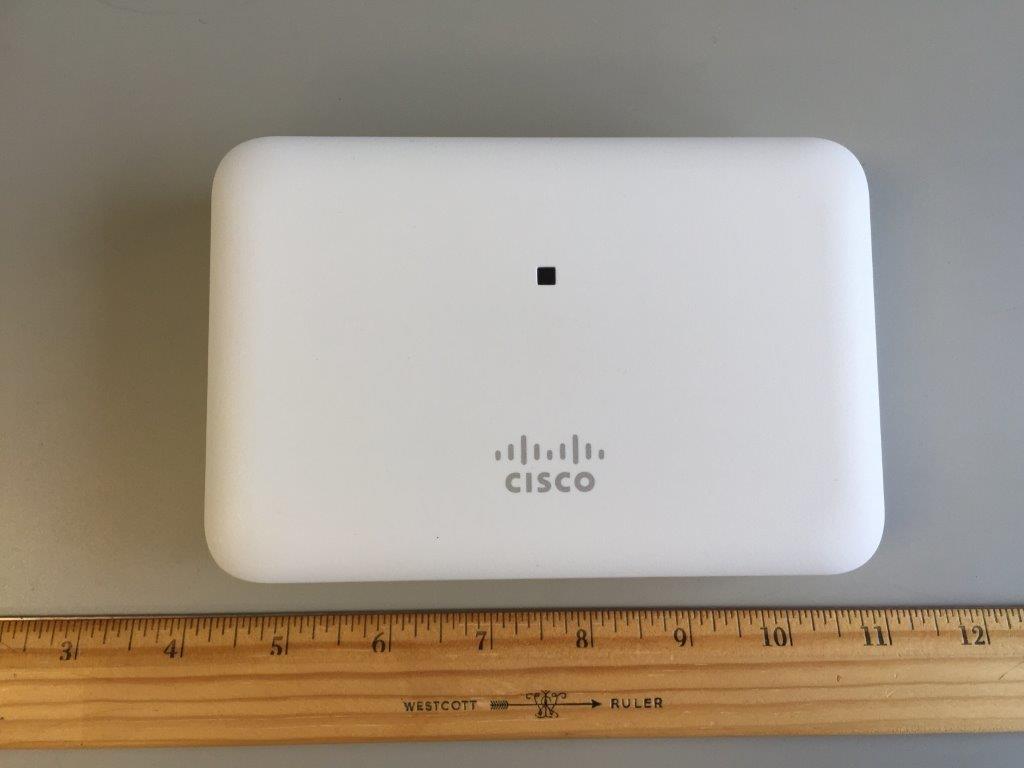

| Ext Photos | External Photos | 2017-04-25 | PDF 322.3 KB |
| FCC ID Label | ID Label/Location Info | 2017-04-25 | PDF 246.3 KB |
| Setup Photos | Test Setup Photos | 2017-04-25 | PDF 320.5 KB |
| Setup Photos | Test Setup Photos | 2017-04-25 | PDF 320.8 KB |
| Test Report | Test Report | 2020-02-26 | PDF 3 MB |
| DFS Report Metadata only | Test Report | 2017-04-25 | PDF 1.4 MB |
| DFS Report Rev | Test Report | 2017-04-25 | PDF 1.6 MB |
| Test Report 5150-5250 MHz | Test Report | 2017-04-25 | PDF 1.5 MB |
| Test Report 5250-5350 MHz | Test Report | 2017-04-25 | PDF 1.5 MB |
| Test Report 5470-5725 MHz Metadata only | Test Report | 2017-04-25 | PDF 1.8 MB |
| Test Report 5470-5725 MHz Rev | Test Report | 2017-04-25 | PDF 1.7 MB |
| Test Report 5745-5825 MHz | Test Report | 2017-04-25 | PDF 1.7 MB |
| Test Report BLE | Test Report | 2017-04-25 | PDF 1.6 MB |
| Test Report Wi-Fi Metadata only | Test Report | 2017-04-25 | PDF 1.9 MB |
| Test Report Wi-Fi Rev | Test Report | 2017-04-25 | PDF 1.9 MB |
| Authorization Signature | Cover Letter(s) | 2020-02-26 | PDF 48.3 KB |
| C2PC Letter | Cover Letter(s) | 2020-02-26 | PDF 59.4 KB |
| Authorized signature | Cover Letter(s) | 2017-04-25 | PDF 56.8 KB |
| Confidentiality Letter | Cover Letter(s) | 2017-04-25 | PDF 72.2 KB |
| RF Exposure | RF Exposure Info | 2017-04-25 | PDF 271.8 KB |
| RF Exposure | RF Exposure Info | 2017-04-25 | PDF 271.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 172.4 KB | |
| Schematics Metadata only | Schematics | PDF 793.4 KB | |
| Schemtics Metadata only | Schematics | PDF 793.4 KB | |
| Antenna Spec Metadata only | Operational Description | PDF 520.6 KB | |
| Operation Description Metadata only | Operational Description | PDF 570.5 KB | |
| PAG Approved Metadata only | Operational Description | PDF 49.3 KB | |
| PAG Re-Use Request Metadata only | Operational Description | PDF 48.7 KB | |
| Software Security Description Metadata only | Operational Description | PDF 142.2 KB |
Application Information
| Application ID | 8NTwyBelIxpEoWUYNPXggQ== |
|---|---|
| Final Action Date | 2020-02-26 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0004968939 |
| Model | 102107 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Cisco Aironet 802.11ac Dual Band Access Points |
| Responsible Party | Samuel Kim, Manager, Engineering, samukim@cisco.com  , 408-527-1446 |
| Test Firm | Gerald Thorpe, Cisco Systems, Inc., gthorpe@cisco.com , 408-525-7602 |
| TCB Email | bacl.regulatory@baclcorp.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Class II Permissive Change documented in this filing. Output power listed is maximum combined conducted power. This device is capable of 2x2 MIMO operations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installations and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 MHz, 40 MHz and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 8NTwyBelIxpEoWUYNPXggQ== | 2020-02-26 | Class II permissive change or modification of presently authorized equipment |
| TBCmjR1t7M2UHAteFfvgnw== | 2017-04-25 | Original Equipment |
| 2h6q/SldIk51wZlWg6+YmA== | 2017-04-25 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2402-2480 MHz | 0.002 | 15C | CC |
| 2412-2462 MHz | 0.11 | 15C | CC, MO |
| 5180-5240 MHz | 0.132 | 15E | 38, CC, MO |
| 5260-5320 MHz | 0.1 | 15E | 38, CC, MO, ND |
| 5270-5310 MHz | 0.11 | 15E | 38, CC, MO, ND |
| 5500-5720 MHz | 0.078 | 15E | 38, CC, MO, ND |
| 5510-5710 MHz | 0.085 | 15E | 38, CC, MO, ND |
| 5530-5690 MHz | 0.085 | 15E | 38, CC, MO, ND |
| 5745-5825 MHz | 0.115 | 15E | 38, CC, MO |
| 5745-5825 MHz | 0.115 | 15E | 49, CC, MO |
