FCC ID LNQT3200M
Wireless 802.11ac Bonded VDSL2 Modem Gateway with MoCA 2.0
by Actiontec Electronics Inc
Grantee Code: LNQ Product Code: T3200M
Latest application date: 2016-06-01
Device Images
FCC ID Device Details
| FCC ID | LNQT3200M |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | LNQ |
| Product Code | T3200M |
| Applicant Business | Actiontec Electronics Inc 🇺🇸 |
| Related Domains |  actiontec.com |
| Equipment Class | Wireless 802.11ac Bonded VDSL2 Modem Gateway with MoCA 2.0 |
| Test Firm | Micom Labs |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-01 |
| 5180-5240 MHz | Original Equipment | 2016-05-19 |
| 2412-2462 MHz | Original Equipment | 2016-05-19 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual pt 1 | Users Manual | 2016-11-06 | PDF 1 MB |
| User Manual pt 2 | Users Manual | 2016-11-06 | PDF 430.7 KB |
| Internal Photos | Internal Photos | 2016-11-06 | PDF 798.6 KB |
| External Photos | External Photos | 2016-11-06 | PDF 601.7 KB |
| Label | ID Label/Location Info | 2016-05-19 | PDF 83.3 KB |
| Label Location/Info | ID Label/Location Info | 2016-05-19 | PDF 83.3 KB |

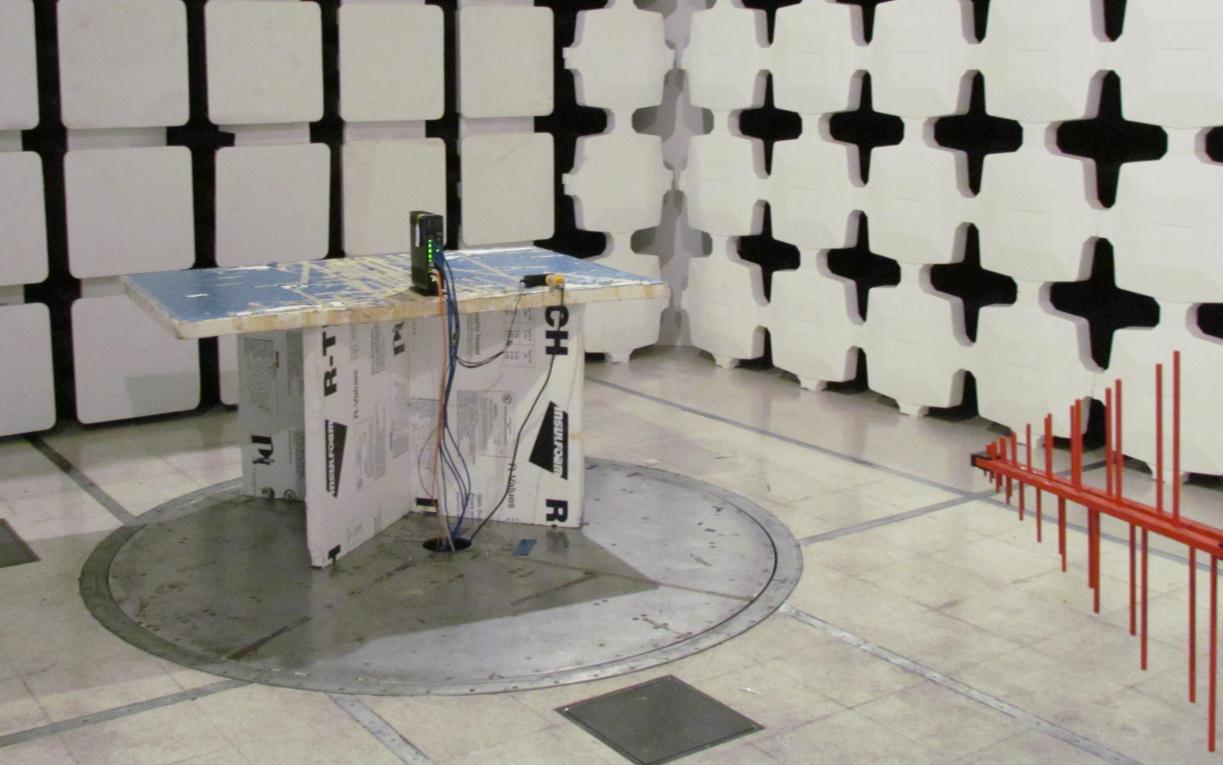

| Test Setup Photos | Test Setup Photos | 2016-11-06 | PDF 1,019.9 KB |

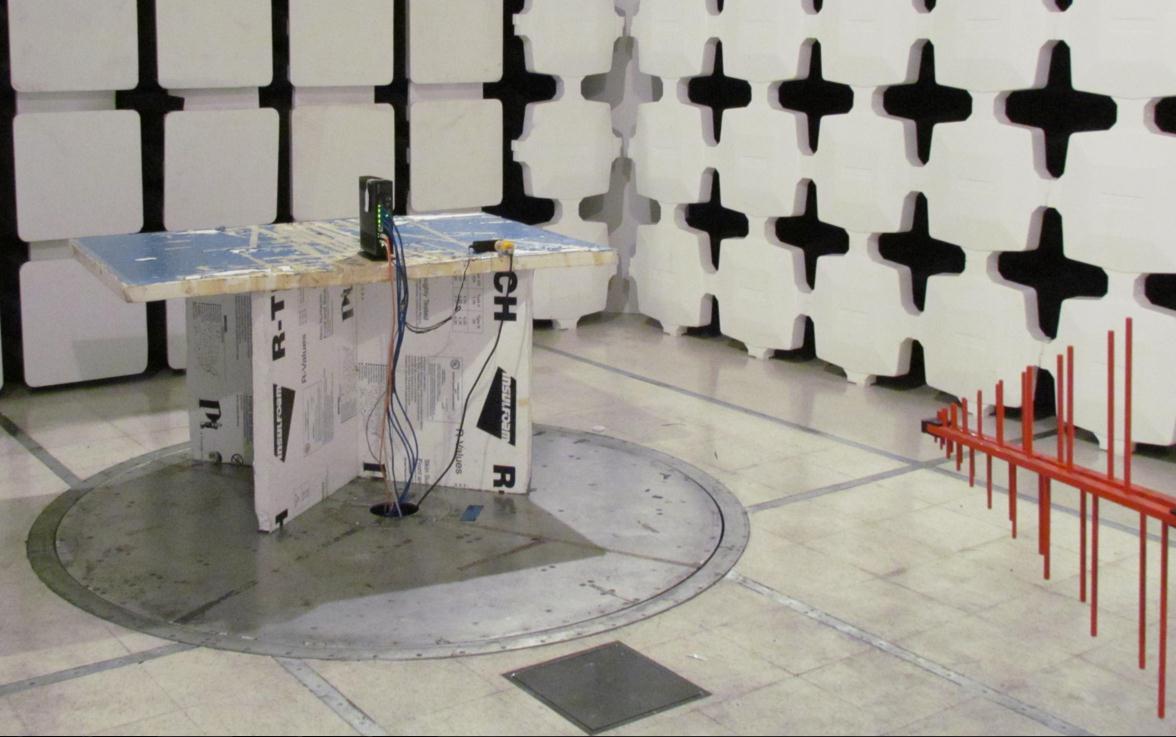

| Test setup Photos | Test Setup Photos | 2016-11-06 | PDF 1,019.9 KB |
| Test Report DFS | Test Report | 2016-06-01 | PDF 3.5 MB |
| Test Report-1 | Test Report | 2016-06-01 | PDF 1.2 MB |
| Test Report-2 | Test Report | 2016-06-01 | PDF 3.6 MB |
| Test Report-3 | Test Report | 2016-06-01 | PDF 3.3 MB |
| Test Report-4 | Test Report | 2016-06-01 | PDF 1.1 MB |
| Test Report pt 1 | Test Report | 2016-05-19 | PDF 893 KB |
| Test Report pt 1 | Test Report | 2016-05-19 | PDF 899.3 KB |
| Test Report pt 2 | Test Report | 2016-05-19 | PDF 5.4 MB |
| Test Report pt 2 | Test Report | 2016-05-19 | PDF 5.9 MB |
| Test Report pt 3 | Test Report | 2016-05-19 | PDF 899 KB |
| Test Report pt 3 | Test Report | 2016-05-19 | PDF 1.2 MB |
| Restriction Control Config | Attestation Statements | 2016-05-19 | PDF 36.5 KB |
| Software Config Control | Attestation Statements | 2016-05-19 | PDF 36.5 KB |
| Authorization | Cover Letter(s) | 2016-06-01 | PDF 37.8 KB |
| Class III Permissive Change Letter | Cover Letter(s) | 2016-06-01 | PDF 36.9 KB |
| Confidentiality Request | Cover Letter(s) | 2016-06-01 | PDF 43.4 KB |
| Restriction Config Control | Cover Letter(s) | 2016-06-01 | PDF 43.4 KB |
| Software Config Control | Cover Letter(s) | 2016-06-01 | PDF 36.5 KB |
| Authorization | Cover Letter(s) | 2016-05-19 | PDF 37.8 KB |
| Confidentiality Request | Cover Letter(s) | 2016-05-19 | PDF 43.4 KB |
| SDR Request Letter | Cover Letter(s) | 2016-05-19 | PDF 36.4 KB |
| RF Exposure | RF Exposure Info | 2016-05-19 | PDF 135.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 178.6 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 181.4 KB | |
| Schematics Metadata only | Schematics | PDF 539.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 46.3 KB | |
| SDR Security Description Metadata only | SDR Software/Security Inf | PDF 426.5 KB | |
| UNII Security Description Metadata only | SDR Software/Security Inf | PDF 106.5 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 220.8 KB |
Application Information
| Application ID | eLyeFLhNjruR2sGDwEnALw== |
|---|---|
| Final Action Date | 2016-06-01 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005810783 |
| Model | T3200M |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless 802.11ac Bonded VDSL2 Modem Gateway with MoCA 2.0 |
| Responsible Party | Brian Henrichs, President, bhenrichs@actiontec.com , 4088579658 |
| Technical Contact | Gordon Hurst, MiCOM Labs, gordon_hurst@micomlabs.com  , (925)462-0304 |
| Test Firm | Gordon Hurst, Micom Labs, gordon_hurst@micomlabs.com , 925-462-0304 |
| TCB Email | certification@micomlabs.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 11/06/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is maximum combined conducted power. The device is a 4x4 MIMO as is described in the filing. The antennas used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device; except in accordance with accepted multi-transmitter operating procedure. End-users must be provided with transmitter operating procedure. This device supports 20, 40 and 80 MHz bandwidths. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| eLyeFLhNjruR2sGDwEnALw== | 2016-06-01 | Class II permissive change or modification of presently authorized equipment |
| zcAyrXzfyJRoqZzBAMQv8Q== | 2016-05-19 | Original Equipment |
| 6khXJ/nt8g3F0e1hzNZb/A== | 2016-05-19 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application zcAyrXzfyJRoqZzBAMQv8Q==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
MiCOM Labs 575 Boulder Court Pleasanton, CA 94566 |
Date of Grant: 05/19/2016 Application Dated: 05/10/2016 |
| Actiontec Electronics Inc |
| 2445 Augustine Drive |
| Suite 501 |
| Santa Clara, CA 95054 |
| Attention: Brian Henrichs , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | LNQT3200M |
| Name of Grantee: | Actiontec Electronics Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless 802.11ac Bonded VDSL2 Modem Gateway with MoCA 2.0 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.823 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.817 |
| Output power listed is maximum combined conducted power. The device is a 4x4 MIMO as is described in the filing. The antennas used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device; except in accordance with accepted multi-transmitter operating procedure. End-users must be provided with transmitter operating procedure. This device supports 20, 40 and 80 MHz bandwidths. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
