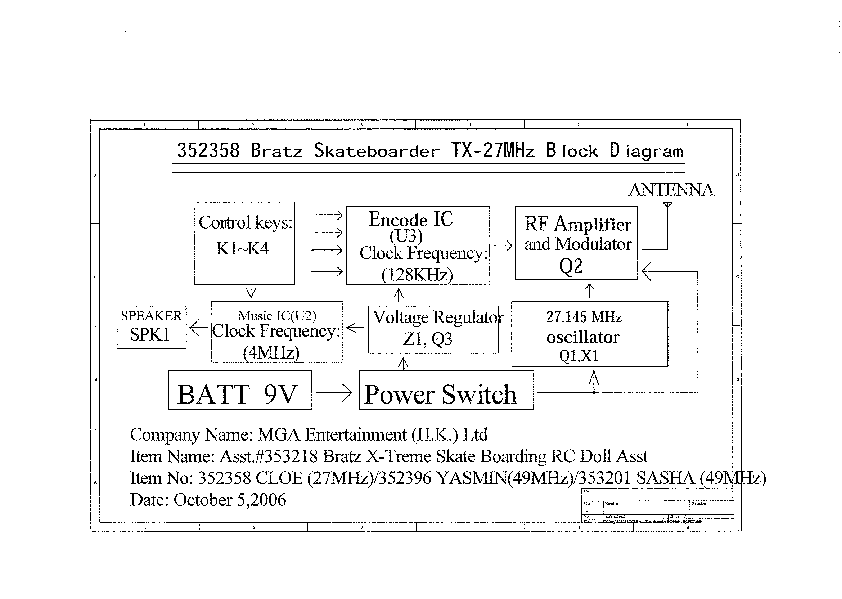

352358 RC Skateboard Block Diagram - FCC ID LU9352358

FCC ID LU9352358

Block Diagram

RC Skateboard

by MGA Entertainment (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDLU9352358
Document ID722148
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantMGA Entertainment (HK) Ltd.
Equipment ClassRC Skateboard
Product Code352358
Application ID7k//W7btU+9ONwBJsrhZNQ==
Application PurposeOriginal Equipment
Application Date2006-10-30
Frequency Range27.145 MHz
FRN0018148171
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-10-30
Available2006-10-30
Created2006-10-25
Modified2006-10-25
Pages1
File TypeAdobe Acrobat PDF
File Size72168
File SHA-25631fcf3b139509ae2bfeaa1dbb955e5addb435fb526b34abe6d7ee67cbffc76da
FCC.gov SourcesFCC.gov 722148
