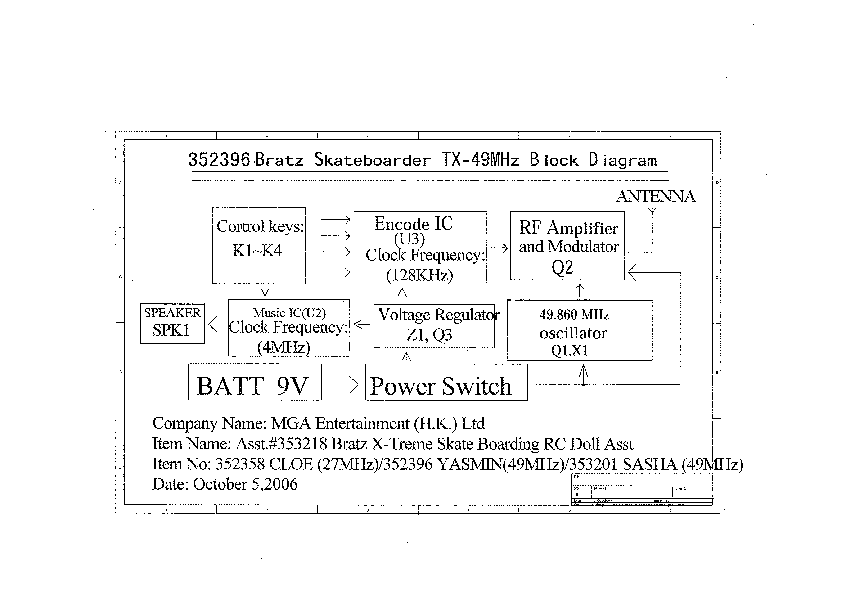

352396 RC Skateboard Block Diagram - FCC ID LU9352396

FCC ID LU9352396

Block Diagram

RC Skateboard

by MGA Entertainment (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDLU9352396
Document ID722213
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantMGA Entertainment (HK) Ltd.
Equipment ClassRC Skateboard
Product Code352396
Application IDhwjmWxm/G5BuU4W2rI1dbA==
Application PurposeOriginal Equipment
Application Date2006-10-31
Frequency Range49.86 MHz
FRN0018148171
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-10-31
Available2006-10-31
Created2006-10-25
Modified2006-10-25
Pages1
File TypeAdobe Acrobat PDF
File Size67139
File SHA-256b4a2ce4d9bdd4f7626f412db55174c35ddffb7d5fd42d2397235a9c0e22a85aa
FCC.gov SourcesFCC.gov 722213
