613241 Walkie Talkie Schematics - FCC ID LU9613241

FCC ID LU9613241

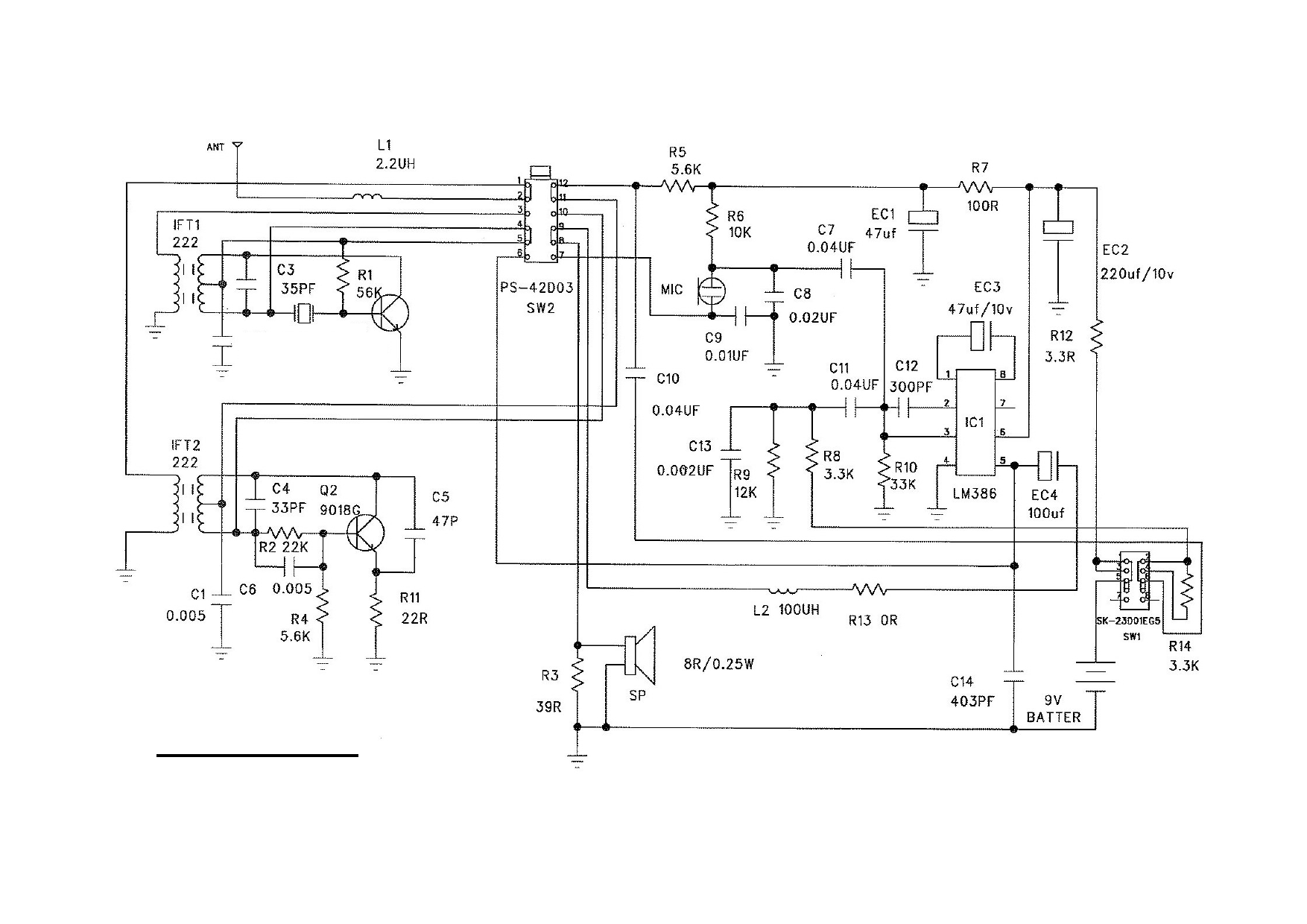

Circuit Diagram

Walkie Talkie

by MGA Entertainment (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDLU9613241
Document ID1017550
Document TypeSchematics
DescriptionCircuit Diagram
Document TitleDoc1
ApplicantMGA Entertainment (HK) Ltd.
Equipment ClassWalkie Talkie
Product Code613241
Application IDmzgw41j/UKeiuUnDc/0gzA==
Application PurposeOriginal Equipment
Application Date2008-10-20
Frequency Range49.86 MHz
FRN0018148171
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-10-20
Available2008-10-20
Created2008-09-26
Modified2008-09-26
Pages1
File TypeAdobe Acrobat PDF
File Size325441
File SHA-256e453b8106d08f73e35d8a19e04a2d5cde232f4f82ad5f4b6acce66352d14ee43
PDF Metadata Authormleung
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 8.0.0 (Windows)
FCC.gov SourcesFCC.gov 1017550
