15602 Baby Monitor Transmitter Test Setup Photos - FCC ID LWA15602

FCC ID LWA15602

Test setup photos

Baby Monitor Transmitter

by Regal Enterprises Ltd

Document preview loads when visible.

Document Details

FCC IDLWA15602
Document ID139569
Document TypeTest Setup Photos

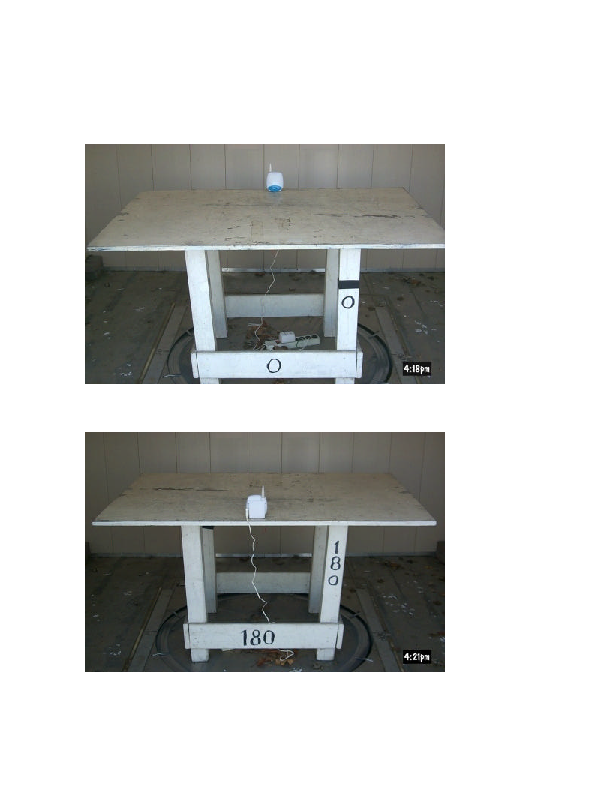

DescriptionTest setup photos
Document Titlesetup.PDF
ApplicantRegal Enterprises Ltd
Equipment ClassBaby Monitor Transmitter
Product Code15602
Application IDiKWhwF9IDZ+E3aO18Xyfgw==
Application PurposeOriginal Equipment
Application Date2001-03-08
Frequency Range49.85-49.89 MHz
FRN9999999999
Test FirmAdvanced Compliance Laboratory
Certified ByWei Li Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-03-08
Available2001-03-08
Pages2
File TypeAdobe Acrobat PDF
File Size171339
File SHA-256f81d8f75c3b2bfb137705d615aff175239ae3b3db0b21c19d004f8feb75dd677
PDF Metadata AuthorUnknown
PDF Metadata ProducerMicrosoft Word Acrobat PDFWriter 3.02 for Windows
FCC.gov SourcesFCC.gov 139569
