FZVS Teardown Internal Photos - FCC ID LX8FZVS
FCC ID LX8FZVS

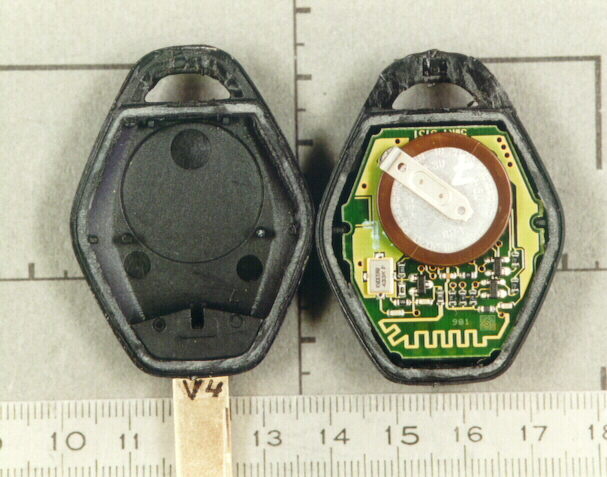

Disassembled
FZVS
Document Details
| FCC ID | LX8FZVS |
|---|---|
| Document ID | 41463 |
| Document Type | Internal Photos |
| Description | Disassembled |
| Applicant | Bayerische Motoren Werke AG |
| Equipment Class | FZVS |
| Product Code | FZVS |
| Application ID | yZEjEDG5KSNoro+gC9Gsuw== |
| Application Purpose | Class II Permissive Change |
| Application Date | 1999-09-20 |
| Frequency Range | 315 MHz |
| FRN | 0006310429 |
| Certified By | Johann Roidt Managing Director |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-06-10 |
| Available | 1999-09-20 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 340032 |
| File SHA-256 | e1f00d0639d8adda4b43ee4c0000ba4e5c3d86aefe73a6bd0caacfc1bad5a1ff |
| FCC.gov Sources | FCC.gov 41463 |
