AT7200 200W UHF ATSC Transmitter - Advanced... - FCC ID LYIAT7200
FCC ID LYIAT7200
Exhibit E Test Measurement Report per 2 1033 c14
200W UHF ATSC Transmitter - Advanced TV
Document preview loads when visible.
Document Details
| FCC ID | LYIAT7200 |
|---|---|
| Document ID | 737822 |
| Document Type | Test Report |

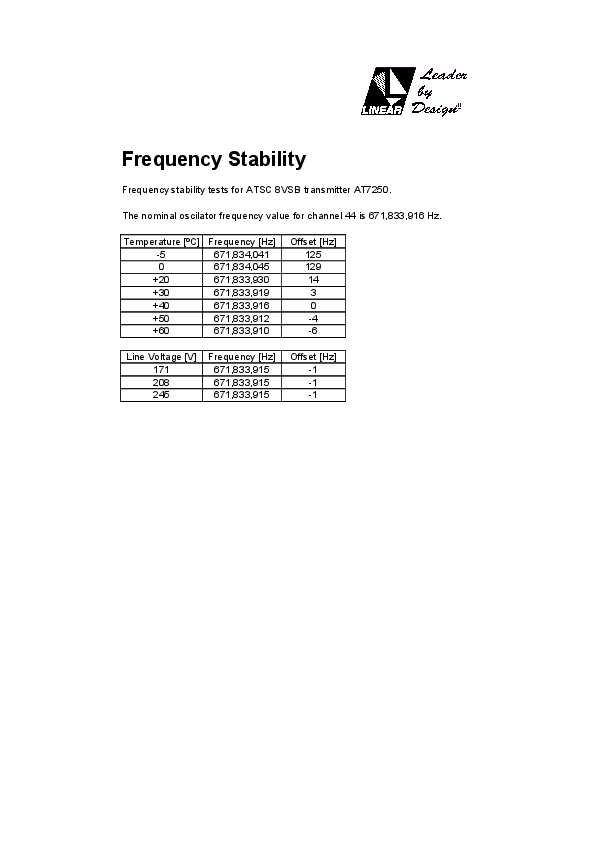

| Description | Exhibit E Test Measurement Report per 2 1033 c14 |
| Document Title | None |
| Applicant | Hitachi Kokusai Electric America LTD |
| Equipment Class | 200W UHF ATSC Transmitter - Advanced TV |
| Product Code | AT7200 |
| Application ID | Tjo8UnOpX+z6LJM/bSWvfg== |
| Application Purpose | Original Equipment |
| Application Date | 2006-12-13 |
| Frequency Range | 470-608 MHz |
| FRN | 0015063993 |
| Certified By | Gustavo Figueiredo President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-12-13 |
| Available | 2006-12-13 |
| Created | 2006-07-19 |
| Modified | 2006-07-19 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 979083 |
| File SHA-256 | e87b2ce529fc6dc272d43340f015f2e094f14b1a3a9cd5c4c92c5d44eae5ba2f |
| PDF Metadata Author | None |
| PDF Metadata Creator | Calc |
| PDF Metadata Producer | OpenOffice.org 1.9.79 |
| FCC.gov Sources | FCC.gov 737822, FCC.gov 737824, FCC.gov 737823 |
