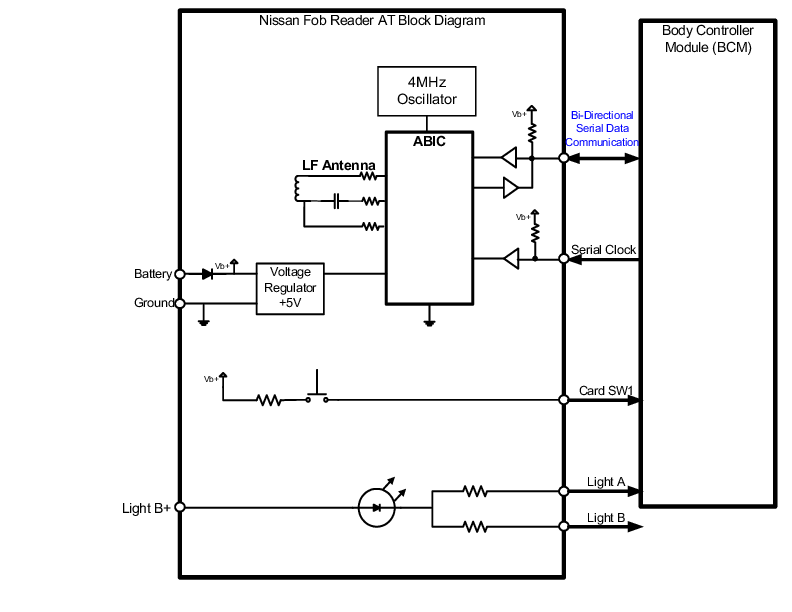

5WY7700 Low Frequency FOB Reader Block Diagram - FCC ID M3N-5WY7700

FCC ID M3N-5WY7700

Block Diagram

Low Frequency FOB Reader

by Continental Automotive Systems, Inc.

Document preview loads when visible.

Document Details

FCC IDM3N-5WY7700
Document ID606382
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleFCC-IC Filing Information
ApplicantContinental Automotive Systems, Inc.
Equipment ClassLow Frequency FOB Reader
Product Code5WY7700
Application IDeDzp+gWVc/HdUpwjyet/CA==
Application PurposeOriginal Equipment
Application Date2005-11-28
Frequency Range0.125 MHz
FRN0025320508
Test FirmUniversity of Michigan
Certified ByValdis V. Liepa Research Scientist
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-11-28
Available2005-11-28
Created2005-10-17
Modified2005-10-17
Pages1
File TypeAdobe Acrobat PDF
File Size29083
File SHA-256f0e789a3d7d24e7b7c46fdb04c0d0f264fbed3ba0e8fddc430e7462fe111a276
PDF Metadata AuthorJoseph D. Brunett
PDF Metadata ProducerAcrobat Distiller 6.0.1 (Windows) Joseph D. Brunett
FCC.gov SourcesFCC.gov 606382
