FCC ID MCQ-XBPSX
XBee-PRO SX 1W RF Module
by Digi International Inc
Grantee Code: MCQ Product Code: XBPSX
Latest application date: 2015-12-22
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 902.5-927.5 MHz | Original Equipment | 2015-12-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-12-22 | PDF 922.1 KB |
| Internal Photos | Internal Photos | 2015-12-22 | PDF 338.5 KB |
| Antennas Photos | External Photos | 2015-12-22 | PDF 362.3 KB |
| External Photos | External Photos | 2015-12-22 | PDF 338.5 KB |
| External Photos of Antennas | External Photos | 2015-12-22 | PDF 435.2 KB |
| Label & Location | ID Label/Location Info | 2015-12-22 | PDF 198.5 KB |

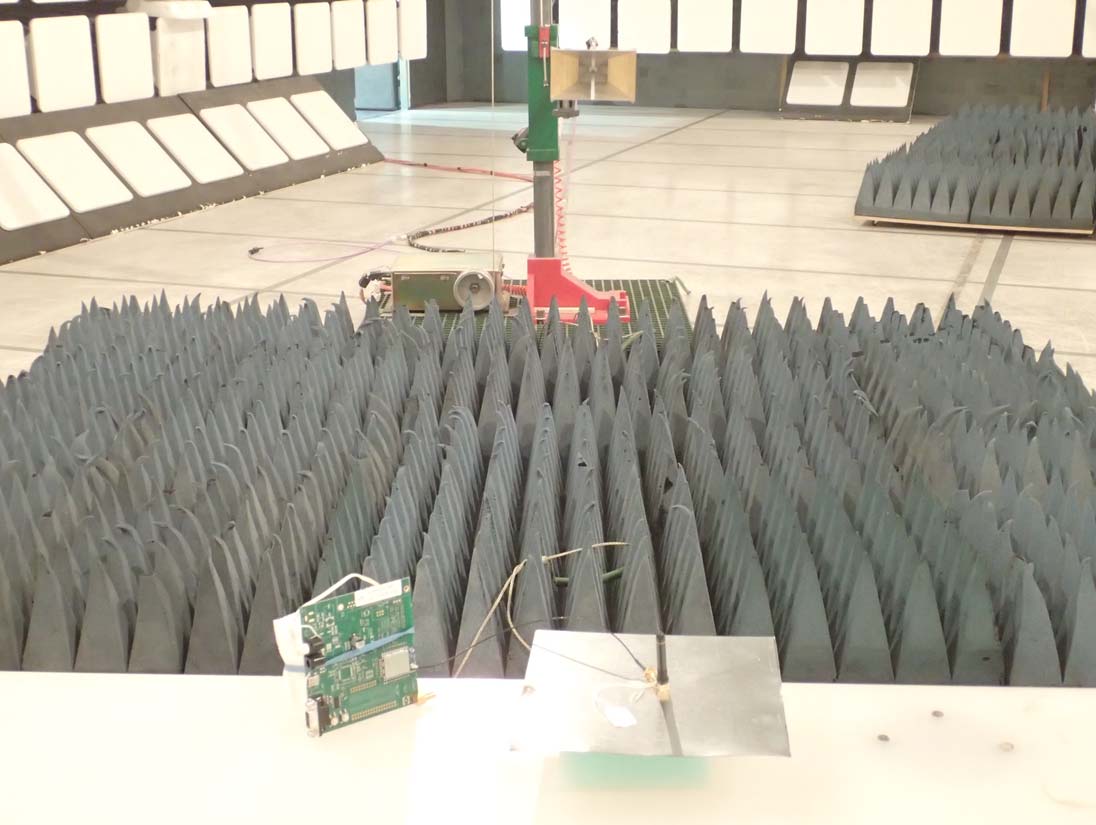

| Setup Photos | Test Setup Photos | 2015-12-22 | PDF 627.4 KB |
| Test Report | Test Report | 2015-12-22 | PDF 4.3 MB |
| Part 15B Attestation | Attestation Statements | 2015-12-22 | PDF 187.5 KB |
| Authority Letter | Cover Letter(s) | 2015-12-22 | PDF 193.4 KB |
| Authority from Grantee Contact | Cover Letter(s) | 2015-12-22 | PDF 135.7 KB |
| Confidentiality Letter | Cover Letter(s) | 2015-12-22 | PDF 157.5 KB |
| Cover Letter | Cover Letter(s) | 2015-12-22 | PDF 100.5 KB |
| Modular Approval Letter | Cover Letter(s) | 2015-12-22 | PDF 880.3 KB |
| RF Exposure | RF Exposure Info | 2015-12-22 | PDF 101 KB |
| Block Diagram Metadata only | Block Diagram | PDF 28.3 KB | |
| Schematics Metadata only | Schematics | PDF 358.6 KB | |
| Operation Description Metadata only | Operational Description | PDF 326.8 KB |
Application Information
| Application ID | Qxl/5dxP9tRvFOHFtqMQUg== |
|---|---|
| Final Action Date | 2015-12-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0010283307 |
| Model | XBPSX |
| Frequency Range | 902.5-927.5 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | XBee-PRO SX 1W RF Module |
| Responsible Party | Erik Reynolds, Director of Engineering, erik.reynolds@digi.com  , 952-912-4248 |
| Agent | Dharmajit Dharmajit Dharmajit, UltraTech Engineering Labs Inc, dharmajit@ultratech-labs.com  , 9058291570 |
| Test Firm | Tri Luu, UltraTech Engineering Labs Inc., tri@ultratech-labs.com , 905-829-1570 |
| TCB Email | vic@ultratech-labs.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power output listed is conducted and continuously variable from 0.001 to 1.0 Watt. This module may only be installed by the OEM or an OEM integrator. For operations in mobile RF Exposure conditions, the antenna used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons. Antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The allowable antenna types & maximum gain listed in this filing are: Omni-directional (8.1 dBi), Yagi (14.0 dBi), Dome (3.0 dBi), Dipole (2.1 dBi) and Monopole (3.3 dBi). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Qxl/5dxP9tRvFOHFtqMQUg== | 2015-12-22 | Original Equipment |
Grants
TCB Grant - Application Qxl/5dxP9tRvFOHFtqMQUg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Ultratech Engineering Labs Inc. 3000 Bristol Circle Oakville Ontario, L6H 6G4 Canada |
Date of Grant: 12/22/2015 Application Dated: 12/22/2015 |
| Digi International Inc |
| 9350 Excelsior Blvd. |
| Suite 700 |
| Hopkins, MN 55343 |
| Attention: Erik Reynolds , Director of Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MCQ-XBPSX |
| Name of Grantee: | Digi International Inc |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | XBee-PRO SX 1W RF Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BB | 15C | 902.5 - 927.5 | 1.0 |
| Single Modular Approval. Power output listed is conducted and continuously variable from 0.001 to 1.0 Watt. This module may only be installed by the OEM or an OEM integrator. For operations in mobile RF Exposure conditions, the antenna used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons. Antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The allowable antenna types & maximum gain listed in this filing are: Omni-directional (8.1 dBi), Yagi (14.0 dBi), Dome (3.0 dBi), Dipole (2.1 dBi) and Monopole (3.3 dBi). |
| BB: | Power output continuously variable from value listed to less than 0.5 watts. |
