FCC ID MDZ-WLL701X
5G Wireless Audio Transceiver/Receiver Module
by Amtran Technology Co Ltd
Grantee Code: MDZ Product Code: WLL701X
Latest application date: 2017-01-08
Device Images
FCC ID Device Details
| FCC ID | MDZ-WLL701X |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | MDZ |
| Product Code | WLL701X |
| Applicant Business | Amtran Technology Co Ltd 🇹🇼 |
| Related Domains |  amtran.com.tw |
| Equipment Class | 5G Wireless Audio Transceiver/Receiver Module |
| Test Firm | Audix Technology Corporation |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2017-01-08 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2015-12-24 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2013-02-20 |
| 5180-5240 MHz | Original Equipment | 2012-12-14 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Guide | Users Manual | 2017-01-08 | PDF 435.9 KB |
| User Manual | Users Manual | 2013-02-20 | PDF 137.2 KB |
| user manual | Users Manual | 2012-12-14 | PDF 105 KB |
| EUT Internal Photo | Internal Photos | 2017-01-08 | PDF 412.9 KB |
| int photos | Internal Photos | 2012-12-14 | PDF 304.2 KB |
| EUT External Photo | External Photos | 2017-01-08 | PDF 183.7 KB |
| ext photos | External Photos | 2012-12-14 | PDF 146 KB |
| FCC ID, IC Label Format and Location | ID Label/Location Info | 2017-01-08 | PDF 134.4 KB |
| label | ID Label/Location Info | 2012-12-14 | PDF 342.5 KB |

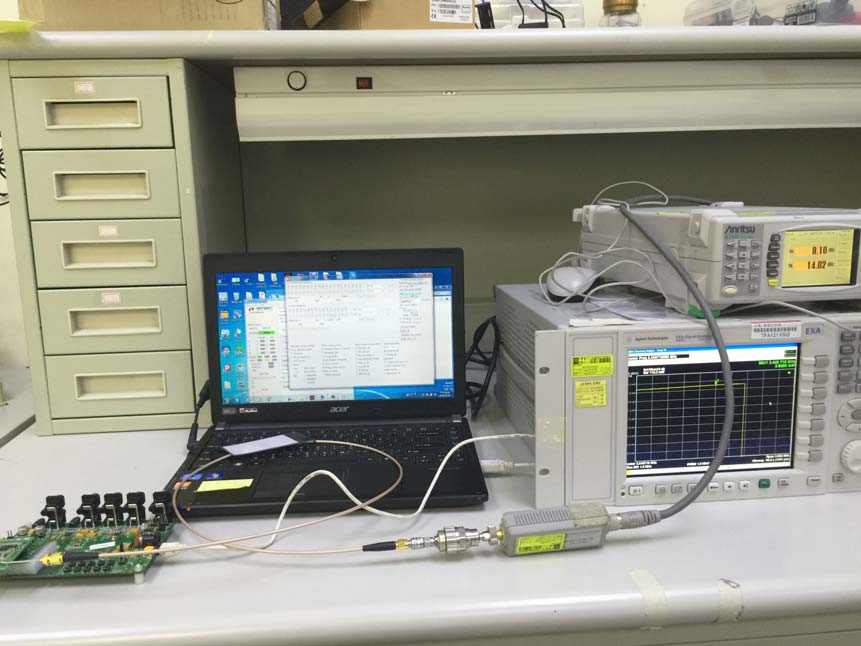

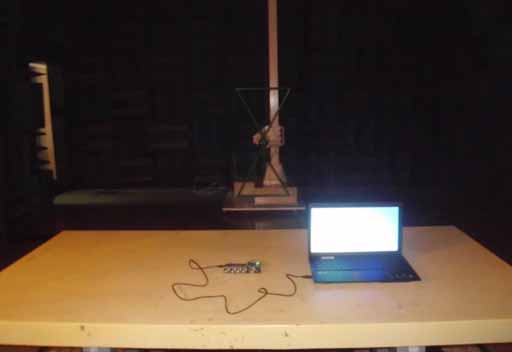

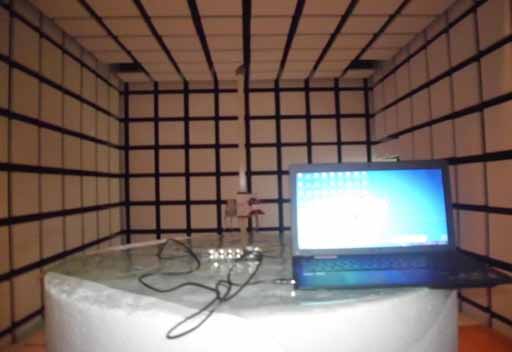

| Test Setup Photos [FCC ID] Rev01-1219 | Test Setup Photos | 2017-01-08 | PDF 253.4 KB |
| Test Setup Photos [FCC ID] | Test Setup Photos | 2015-12-24 | PDF 56.7 KB |
| Test Setup Photos | Test Setup Photos | 2013-02-20 | PDF 3.9 MB |
| test setup photos | Test Setup Photos | 2012-12-14 | PDF 3.9 MB |
| Test Report [FCC ID] Rev04-0105 | Test Report | 2017-01-08 | PDF 777.8 KB |
| Test Report [FCC ID] | Test Report | 2015-12-24 | PDF 1.1 MB |
| Test Report | Test Report | 2013-02-20 | PDF 1 MB |
| test report | Test Report | 2012-12-14 | PDF 1.2 MB |
| ACB-FCC ACB-Module Approval Letter Rev01-1219 | Cover Letter(s) | 2017-01-08 | PDF 36.3 KB |
| FCC ACB-Application-Letters | Cover Letter(s) | 2017-01-08 | PDF 196 KB |
| FCC ACB-Request for Confidentiality | Cover Letter(s) | 2017-01-08 | PDF 221.9 KB |
| Letter of Class 2 Permissive Change FCC ID Rev01-1219 | Cover Letter(s) | 2017-01-08 | PDF 258.5 KB |
| FCC ACB-Application-Letters | Cover Letter(s) | 2015-12-24 | PDF 198.5 KB |
| Letter of Class 2 Permissive Change FCC ID Rev02-1223 | Cover Letter(s) | 2015-12-24 | PDF 75.4 KB |
| Class II Letter | Cover Letter(s) | 2013-02-20 | PDF 148.8 KB |
| LTC request | Cover Letter(s) | 2013-02-20 | PDF 198.3 KB |
| PoA | Cover Letter(s) | 2013-02-20 | PDF 221.5 KB |
| Ad hoc letter | Cover Letter(s) | 2012-12-14 | PDF 138.2 KB |
| DOC letter | Cover Letter(s) | 2012-12-14 | PDF 151.5 KB |
| LMA letter | Cover Letter(s) | 2012-12-14 | PDF 237.1 KB |
| LTC request | Cover Letter(s) | 2012-12-14 | PDF 198.3 KB |
| PoA | Cover Letter(s) | 2012-12-14 | PDF 211 KB |
| MPE Rev01-1222 | RF Exposure Info | 2017-01-08 | PDF 153.9 KB |
| MPE | RF Exposure Info | 2015-12-24 | PDF 137.4 KB |
| MPE | RF Exposure Info | 2013-02-20 | PDF 38.3 KB |
| MPE | RF Exposure Info | 2012-12-14 | PDF 82 KB |
| Block Diagram Rev02-1228 Metadata only | Block Diagram | PDF 575.5 KB | |
| Schematic Rev01-1219 Metadata only | Schematics | PDF 83 KB | |
| FCC Software Configuration Control Declaration Rev02-1227 Metadata only | Operational Description | PDF 52 KB | |
| Operational Description Rev01-1219 Metadata only | Operational Description | PDF 292.7 KB |
Application Information
| Application ID | p71k2rPxjcgw0UnphGivdw== |
|---|---|
| Final Action Date | 2017-01-08 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0018125716 |
| Model | WLL701X |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 5G Wireless Audio Transceiver/Receiver Module |
| Responsible Party | J.C. Cheng, EMC Safety Supervisor, jc.cheng@amtran.com.tw , 886-2-8228-0505 |
| Technical Contact | Ben Cheng, AUDIX Technology Corporation, Ben_Cheng@audixtech.com  |
| Test Firm | Leon Liu, Audix Technology Corporation, leon@audixtech.com , 886-2-26092133 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. Class II Permissive change to enable 5736-5814 MHz by firmware (02/20/2013). Class II Permissive change to update the standard to UNII new rule. All tests were re- performed, as documented in this filing (12/24/2015). Class II Permissive change to change the modular interface (and the PCB dimension is a bit changed because of the different interface) , as documented in this filing. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| p71k2rPxjcgw0UnphGivdw== | 2017-01-08 | Class II permissive change or modification of presently authorized equipment |
| mO/cIY9yUGZiWb2TJSQm5A== | 2015-12-24 | Class II permissive change or modification of presently authorized equipment |
| iNFsxVYUOZBqgkZGBpGidQ== | 2013-02-20 | Class II permissive change or modification of presently authorized equipment |
| NGLoaY295qyV26IL9TL4bg== | 2012-12-14 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application p71k2rPxjcgw0UnphGivdw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 01/08/2017 Application Dated: 01/06/2017 |
| Amtran Technology Co Ltd |
| 17F, No. 268, Lien Chen Rd. |
| Chung Ho City |
| Taipei County, 235 Taiwan |
| Attention: J.C. Cheng , EMC Safety Supervisor |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MDZ-WLL701X |
| Name of Grantee: | Amtran Technology Co Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 5G Wireless Audio Transceiver/Receiver Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15E | 5180.0 - 5240.0 | 0.015776 | |||
| 15E | 5736.0 - 5814.0 | 0.007745 |
| Output Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. Class II Permissive change to enable 5736-5814 MHz by firmware (02/20/2013). Class II Permissive change to update the standard to UNII new rule. All tests were re- performed, as documented in this filing (12/24/2015). Class II Permissive change to change the modular interface (and the PCB dimension is a bit changed because of the different interface) , as documented in this filing. |
