FCC ID MIJ-ES520P
Dual radio access point/bridge
by General Dynamics Mission Systems
Grantee Code: MIJ Product Code: ES520P
Latest application date: 2015-11-30
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 4942.5-4987.5 MHz | Original Equipment | 2015-11-30 |
| 2412-2462 MHz | Original Equipment | 2015-11-30 |
| 5745-5825 MHz | Original Equipment | 2015-11-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-11-30 | PDF 1.2 MB |
| Internal Photos | Internal Photos | 2015-11-30 | PDF 674.1 KB |
| External Photos | External Photos | 2015-11-30 | PDF 408.7 KB |
| External Photos Rev. 1 | External Photos | 2015-11-30 | PDF 408.7 KB |
| Compliance label location | Cover Letter(s) | 2015-11-30 | PDF 135.9 KB |
| Compliance label location | ID Label/Location Info | 2015-11-30 | PDF 135.9 KB |
| Label | ID Label/Location Info | 2015-11-30 | PDF 79.3 KB |
| label location | ID Label/Location Info | 2015-11-30 | PDF 135.9 KB |

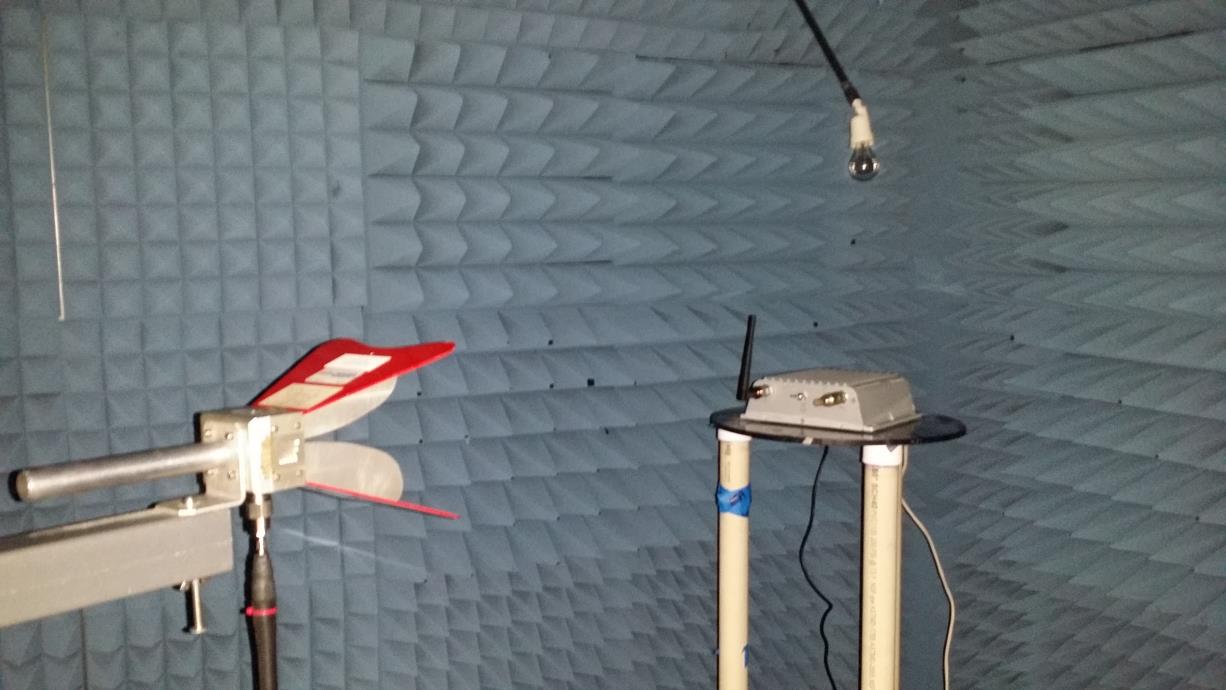

| Test Setup Photos - F50 | Test Setup Photos | 2015-11-30 | PDF 302.3 KB |
| Test Setup Photos - Senao | Test Setup Photos | 2015-11-30 | PDF 357 KB |
| Test Report | Test Report | 2015-11-30 | PDF 741.9 KB |
| Test Report | Test Report | 2015-11-30 | PDF 885.1 KB |
| Test Report A | Test Report | 2015-11-30 | PDF 1.3 MB |
| Test Report B | Test Report | 2015-11-30 | PDF 1.4 MB |
| Dismissal Request Letter | Cover Letter(s) | 2015-11-30 | PDF 141.2 KB |
| Letter of Confidentiality | Cover Letter(s) | 2015-11-30 | PDF 141.1 KB |
| Anennta Datasheet - OD-2400 | RF Exposure Info | 2015-11-30 | PDF 67 KB |
| Antenna Datasheet - ECO | RF Exposure Info | 2015-11-30 | PDF 69.8 KB |
| Antenna Datasheet - ECO OD Series | RF Exposure Info | 2015-11-30 | PDF 69.8 KB |
| Antenna Datasheet - OD-2400 | RF Exposure Info | 2015-11-30 | PDF 67 KB |
| Block Diagram Metadata only | Block Diagram | PDF 112.7 KB | |
| Schematics Metadata only | Schematics | PDF 1.8 MB | |
| Operational Description Metadata only | Operational Description | PDF 174.3 KB | |
| SoftwareSecurity Metadata only | SDR Software/Security Inf | PDF 193.6 KB | |
| Tuneup-procedure Metadata only | Parts List/Tune Up Info | PDF 278.6 KB |
Application Information
| Application ID | nf3/UbmPLtC82jk1/1Rp5w== |
|---|---|
| Final Action Date | 2015-11-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0019958503 |
| Model | ES520P |
| Frequency Range | 4942.5-4987.5 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Dual radio access point/bridge |
| Responsible Party | Gil O. Estrella, EMC Engineer, Gil.Estrella@gd-ms.com  , 480 441-3725 |
| Technical Contact | David Aylesworth, General Dynamics, David.aylesworth@gd-ms.com |
| Test Firm | Scot Rogers, Rogers Labs, Inc., rogers@micoks.net  , 913-837-3214 |
| TCB Email | tcbinfo@metlabs.com  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| nf3/UbmPLtC82jk1/1Rp5w== | 2015-11-30 | Original Equipment |
| e/JximYtf1tmvqJ/tEdZgg== | 2015-11-30 | Original Equipment |
| On2wO4ZXtEBwepLCpJJRiw== | 2015-11-30 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application On2wO4ZXtEBwepLCpJJRiw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 11/30/2015 Application Dated: 11/30/2015 |
| General Dynamics Mission Systems |
| 8201 E. McDowell Road |
| Scottsdale, AZ 85257 |
| Attention: Gil Estrella , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MIJ-ES520P |
| Name of Grantee: | General Dynamics Mission Systems |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Dual radio access point/bridge |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 | 15E | 5745.0 - 5825.0 | 0.065 |
| Power Output listed is conducted. Professional installation is required. The antenna(s) used with this transmitter must be professionally installed and provide a minimum of 30 cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) or similar tested in this filing may be used with the transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
EAS Grant - Application On2wO4ZXtEBwepLCpJJRiw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
General Dynamics Mission Systems 8201 E. McDowell Road Scottsdale, AZ 85257 United States |
Date of Grant: 11/30/2015 Application Dated: 11/30/2015 |
| Attention: Gil Estrella , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MIJ-ES520P |
| Name of Grantee: | General Dynamics Mission Systems |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Dual radio access point/bridge |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 | 15E | 5745.0 - 5825.0 | 0.065 |
| Power Output listed is conducted. Professional installation is required. The antenna(s) used with this transmitter must be professionally installed and provide a minimum of 30 cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Only those antenna(s) or similar tested in this filing may be used with the transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 11/30/2015 Application Dated: 11/12/2015 |
| General Dynamics Mission Systems |
| 8201 E. McDowell Road |
| Scottsdale, AZ 85257 |
| Attention: Gil Estrella , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MIJ-ES520P |
| Name of Grantee: | General Dynamics Mission Systems |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Dual radio access point/bridge |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 90Y | 4942.5 - 4987.5 | 0.5 | 10.0 PM | 4M27W7D | |
| 90Y | 4945.0 - 4985.0 | 0.5 | 10.0 PM | 8M43W7D | |
| 90Y | 4950.0 - 4980.0 | 0.5 | 10.0 PM | 16M6W7D |
| Power listed is conducted. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
