S516 6 Antenna InstaScan Scanner Label Diagram - FCC ID MKRS516

FCC ID MKRS516

Label content and location

6 Antenna InstaScan Scanner

by Single Chip Systems Corporation

Document preview loads when visible.

Document Details

FCC IDMKRS516
Document ID95657
Document TypeID Label/Location Info

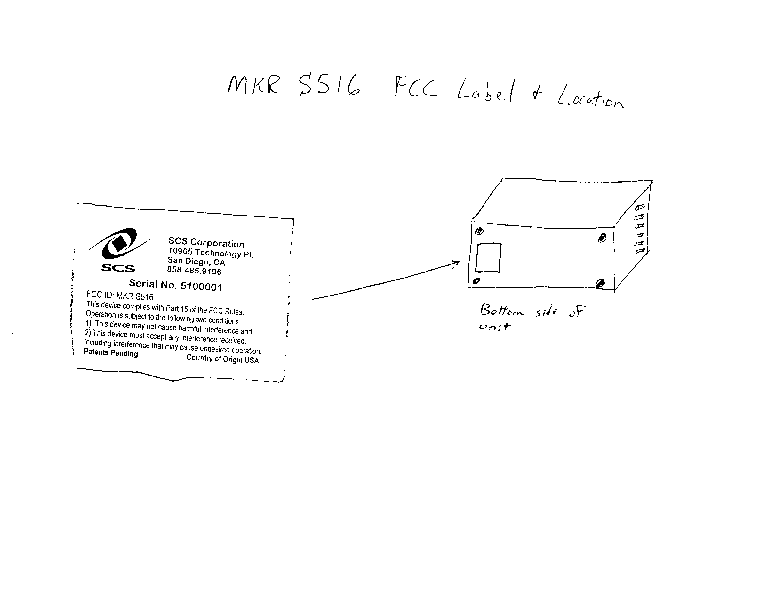

DescriptionLabel content and location
ApplicantSingle Chip Systems Corporation
Equipment Class6 Antenna InstaScan Scanner
Product CodeS516
Application ID5QoGOo2wgXdX8eJBphF5Pw==
Application PurposeOriginal Equipment
Application Date2000-05-08
Frequency Range2401-2475 MHz
FRN0004263174
Test FirmTUV America
Certified ByMary Washington EMC Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-04-11
Available2000-05-08
Created2000-04-11
Modified2000-04-11
Pages1
File TypeAdobe Acrobat PDF
File Size26225
File SHA-256ae97b73ff8ed258431e186835b8aa79aa016a0f6a5ed876655bc6aa67fa89596
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 95657
