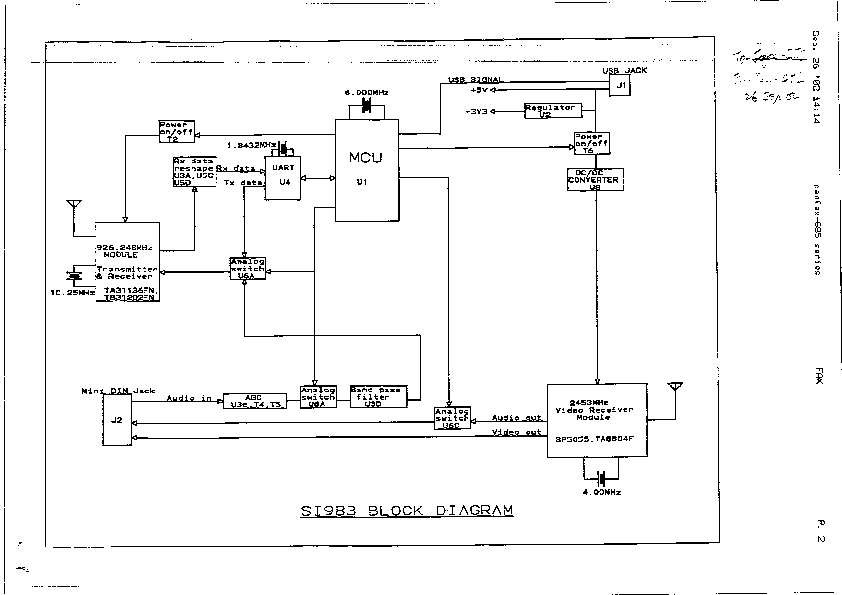

SI983 Robot Remote Control Block Diagram - FCC ID MRISI983

FCC ID MRISI983

block diagram

Robot Remote Control

by STL Electronics Limited

Document preview loads when visible.

Document Details

FCC IDMRISI983
Document ID275960
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantSTL Electronics Limited
Equipment ClassRobot Remote Control
Product CodeSI983
Application IDRAZmsX+t6dBIu0Q9kMX3bQ==
Application PurposeOriginal Equipment
Application Date2002-10-10
Frequency Range926 MHz
FRN0004309142
Test FirmIntertek Testing Services Hong Kong
Certified ByTommy Leung Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartYes
Submitted2002-10-10
Available2002-10-10
Created2002-09-27
Modified2002-10-10
Pages2
File TypeAdobe Acrobat PDF
File Size102247
File SHA-256a372d39fc9032da0cf4aefe290265489032d368f4ea57e8f789d14dda2d8816c
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 275960, FCC.gov 275949
